  • Page 1 C315W Indoor Monitor User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s C315W indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. It provides an overview of the most essential functions and features of the product. The document is suitable for 115.1.2.2xx version.
  • Page 3 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Content 1. Product overview ................................... 1 1.1. Product Description ................................1 1.2. Power connection ................................... 2 2. Daily use ......................................3 2.1. Making a call ................................... 3 2.1.1. Calling from digital keypad ............................3 2.1.2. Calling from phonebook ..............................4 2.1.3.
  • Page 5 2.5.1. Arming Mode ................................11 2.5.2. Disarm Code ................................12 2.5.3. Alarm Log ..................................13 2.5.4. Status ................................... 14...

  • Page 6: Product Overview

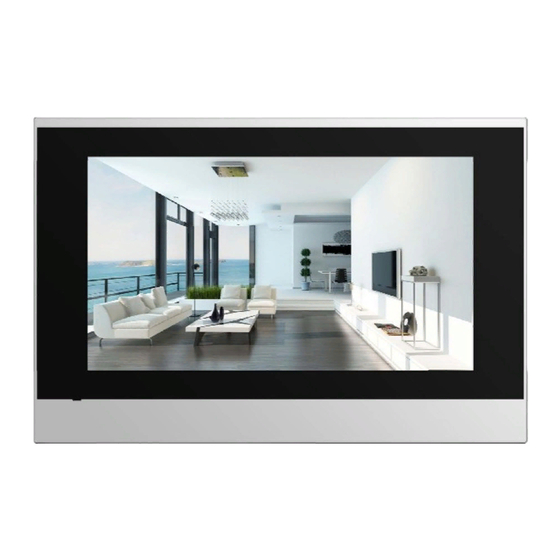

    C315W User Manual 1. Product overview 1.1. Product Description C315W is a Android-based IP indoor monitor with a touch screen. It incorporates audio communications, access control sensor arming and obtaining video stream from door phone or IP camera. Figure 1.1-1 Its finely-tuned Android OS allows for better suit the habit of usage of local people.

  • Page 7: Power Connection

    C315W User Manual 1.2. Power connection Ethernet(POE): Ethernet(POE) connector which can provide both power and network connection. RJ45(PON): This is a special connector to provide power and Figure 1.2-1 interface network for E10 series. 12V/GND: External power supply terminal if POE is not available.

  • Page 8: Daily Use

    Press Intercom in home page to enter the dial interface to dial the number directly.  Choose a suitable phone account ① for the outgoing call. Note: C315W support 2 accounts. Please refer to admin guide for more account settings.  Enter the number to call on the digital keypad ②...

  • Page 9: Calling From Phonebook

    C315W User Manual 2.1.2. Calling from phonebook Enter the contact interface to make a call.  C315W supports fuzzy matching query ① .To search the list by number or alphabet.  Scroll up or down the pre-imported contact list ②...

  • Page 10: Calling From Call Log

    C315W User Manual 2.1.3. Calling from call log  Press the Miss Call note ① to enter the call log interface.  You can also enter Intercom interface to check call log ②. Then choose audio or video call to dial out.

  • Page 11: Receiving A Call

    C315W User Manual 2.2. Receiving a call 2.2.1. Receiving a incoming call There will be a video preview in this window, when you receive a incoming call.  Press Video or Audio key to pick up the incoming call.  Press Cancel to reject the incoming call.

  • Page 12: Live View

    C315W User Manual 2.3. Live view Live view feature is used to monitor the real-time video from the IPC or door phone anytime. Click Live View in home page. Figure 2.3-1 Live view  ...

  • Page 13: Checking The Monitor

    C315W User Manual 2.3.1. Checking the monitor Choose the outdoor devices from the list . The real-time video from the door phone or IPC will show in the screen .  Press Unlock to open the door which connected with door phone.

  • Page 14: Message(S)

    C315W User Manual 2.4. Message(s) Press Message ① to enter the message interface. Or there will be a notification if there is any new message, click the New Message notification ② to check directly. 2.4.1. Text Message Figure 2.4-1 Message By entering the message interface, it is text message list.

  • Page 15: Creating A Message

    “Help”. Or input the message content you want to send ⑤.  Select line 1 or line 2 account ⑥ to send out. Figure 2.4.2-1 Create message Note: C315W support 2 accounts. Please refer to admin guide for more account settings.  Press Send key ⑦ to send.

  • Page 16: Arming

    C315W User Manual 2.5. Arming Tap Arming to enter the Arming interface. C315W supports 4 mode, they are Home mode, Night mode, Away mode and disarm mode. 2.5.1. Arming Mode Figure 2.5-1 Arming Go to the path Arming - Arming mode. Users can see all of the 8 zones and corresponding sensor types.

  • Page 17: Disarm Code

    C315W User Manual  The Status the corresponding zone means whether the zone is available or not.  Press Save in the top right corner to save the modification. 2.5.2. Disarm Code Go to the path Arming - Disarm Code to enter the disarm code settings interface.

  • Page 18: Alarm Log

    C315W User Manual 2.5.3. Alarm Log Go to the path Arming - Alarm Log to enter the alarm log interface. Users can see the alarm log here including location, zone, zone type and alarm time.  Hold a alarm log ①,it will show up delete prompt.

  • Page 19: Status

    C315W User Manual 2.5.4. Status Go to the path Arming - Zone status to enter the zone status interface. Users can check the status of every zone, including location, zone type, trigger mode and status. Figure2.5.3-1 Zone status  ...
  • Page 20 C315W User Manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning...
  • Page 21 C315W User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center...
  • Page 22 C315W User Manual Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
