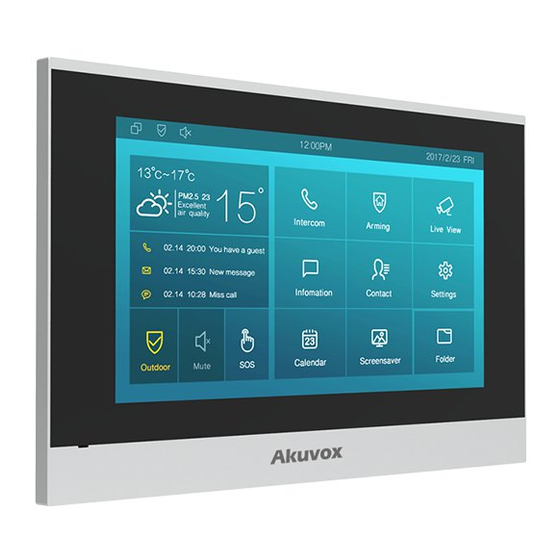

Akuvox C315X Quick Manual

Hide thumbs Also See for C315X:

Table of Contents

Download this manual

Unpacking

Please make sure the package contains the following items:

Screw ﬁxing seat x 2

11 Pin cable x 1

C315X x 1

Touch Screen

MIC

Loudspeaker

ST4X20 screw x 2

Wall bracket x 1

C315X

Quick Guide

M4X30 screw x 2

10 Pin cable x 1

（Except C315N）

RJ45 Interface

（Except C315N）

Network Interface（Power in）

10 Pin Terminals

11 Pin Terminals

（Except C315N）

Table of Contents

Do you have a question about the C315X and is the answer not in the manual?

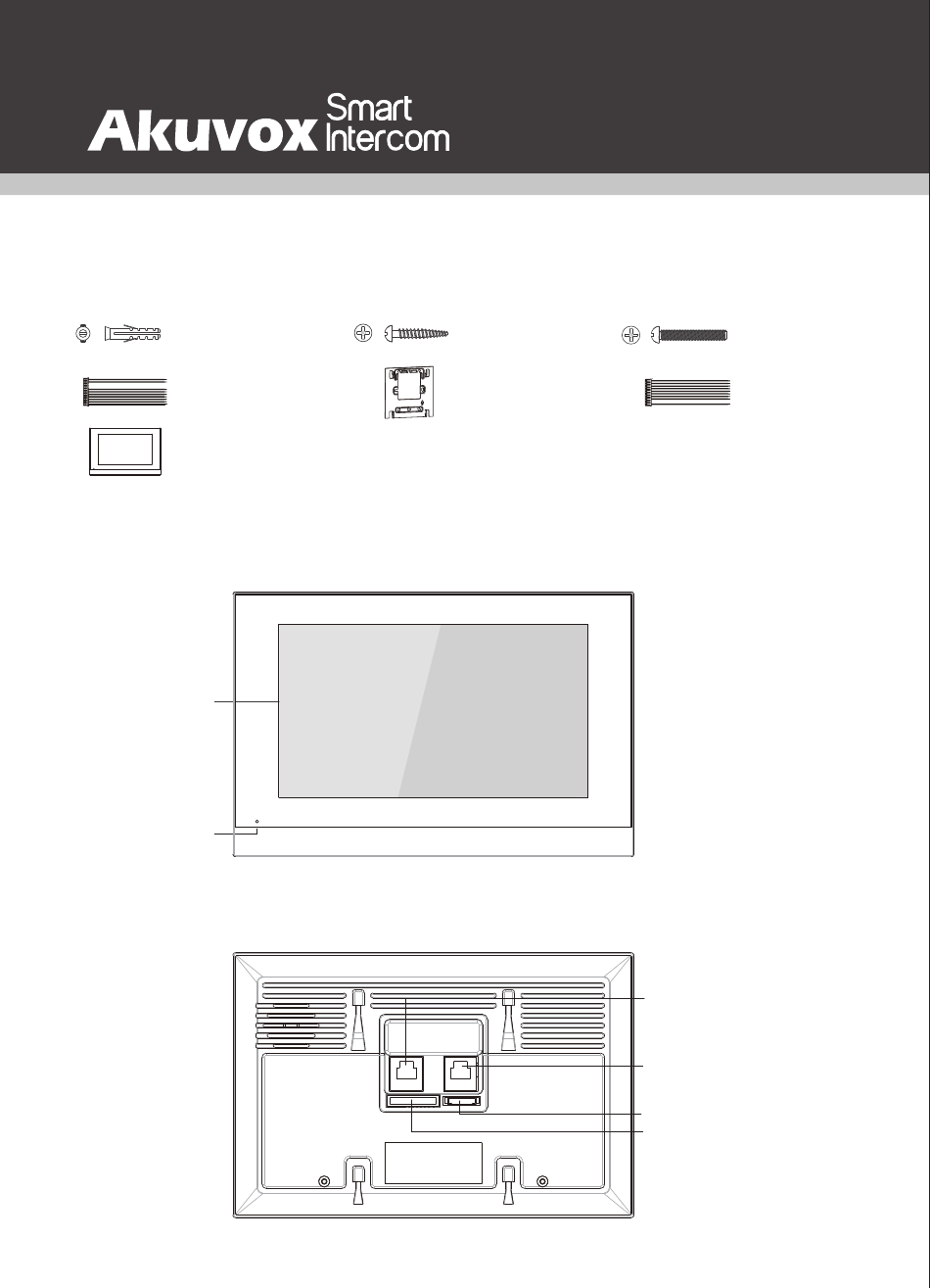

Page 1 Screw ﬁxing seat x 2 ST4X20 screw x 2 M4X30 screw x 2 11 Pin cable x 1 Wall bracket x 1 10 Pin cable x 1 （Except C315N） C315X x 1 Product Overview Front Panel Touch Screen C315X Rear Panel RJ45 Interface （Except C315N）...
Page 2 Installa Without 86 embedded box in the wall Mark two ﬁxation holes through wall bracket Take down the bracket, then using a on the wall,the distance between which is 5mm hand drill to make the two ﬁxation 60mm. Make sure the all cables can be holes on the wall you marked before.
Page 3 C315X Quick Guide Device Moun Push down to ﬁx the device securely. Conﬁgura 1. After setting up network and power, press Settings icon , enter System Info , then choose Network to check IP address (DHCP by default). 2. Launch web browser and type in the IP address to access web interface, login with username and password.(admin by default)
Page 4 C315X Quick Guide Device Wiring Power Input AKUVOX (XIAMEN) NETWORKS CO., LTD. ADD: 10/F, NO.56 GUANRI ROAD, SOFTWARE PARK II, XIAMEN 361009, CHINA www.akuvox.com...
