Summary of Contents for Akuvox C312 Series

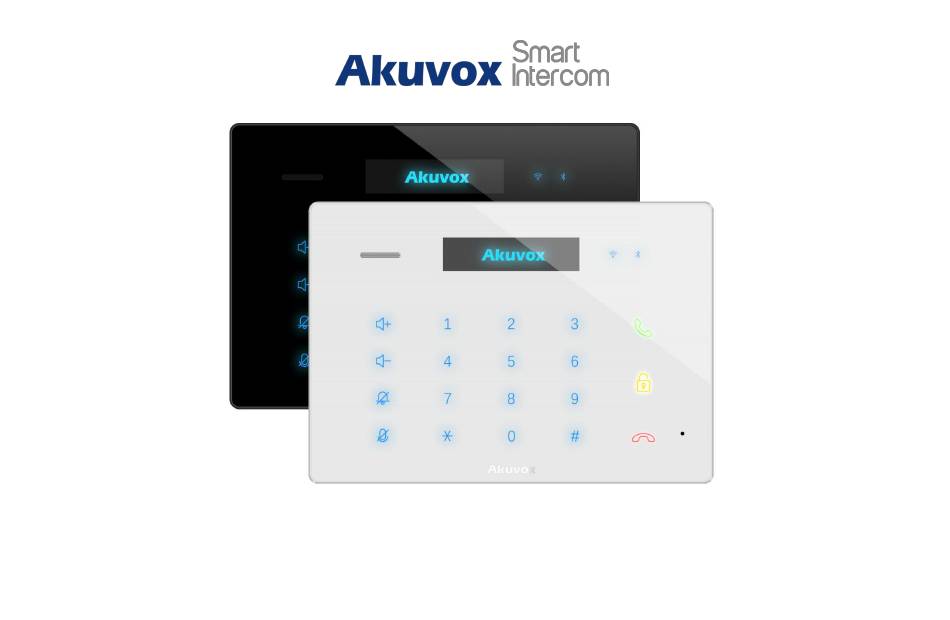

  • Page 1 C312 Series Indoor Monitor User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s C312 series indoor monitor. This manual is intended for end users, who need to use and configure the indoor monitor. This manual provides an introduction of basic functions and features of the product. It is suitable for firmware 112.30.1.155.

  • Page 3: Table Of Contents

    Content 1. Product Overview....................................... 1 1.1. Product Description....................................1 1.2. Connector Introduction....................................2 2. Daily Use..........................................3 2.1. Making a Call.......................................3 2.1.1. Calling from keypad..................................3 2.1.2. Speed dial (Short Press)................................. 3 2.1.3. Speed dial (Long Press)..................................4 2.2. Receiving a Call......................................4 2.2.1.

  • Page 4: Product Overview

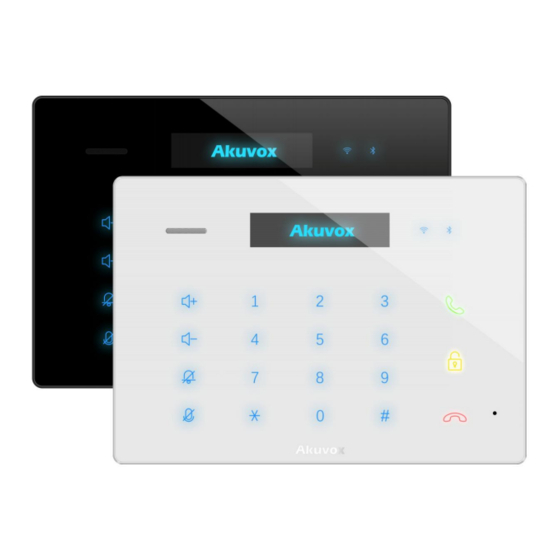

    C313X User Manual 1. Product Overview 1.1. Product Description The C312X multifunctional communicator, which works as an indoor answering unit, provides HD audio communication with doorphone or other sip device. It delivers the ultimate glass touch screen experience in an unobtrusive, space-saving design featuring a brilliant 2.23 inch display.

  • Page 5: Connector Introduction

    C313X User Manual 1.2. Connector Introduction POE: POE connector which it can provide both power and network connection. 12V/GND: External power supply terminal if POE is not available. DoorGND: Connect a simple two-wire door bell. Relay (NO/COM/NC): Relay control terminal. IO1- IO8/GND: Connect with different alarm detectors for 8 security zones.

  • Page 6: Daily Use

    C313X User Manual 2. Daily Use 2.1. Making a Call Users can establish VOIP calls by C312X. 2.1.1. Calling from keypad  Dial the SIP account /IP address on the keypad ① .  Press Call Touch Key to call out ②. 2.1.2.

  • Page 7: Speed Dial (Long Press)

    C313X User Manual 2.1.3. Speed dial (Long Press) Long press Call Touch Key about 2s to call out predefined  number . Note: the long/short press call number need to be setup in the web ,please consult your administrator. 2.2. Receiving a Call 2.2.1.

  • Page 8: During The Session

    C313X User Manual 2.2.2. During the Session  Press the volume button on the left side to adjust the ring tone volume.  Press Hangup Touch Key to hang up the current call.  Prees Mute Touch Key to eliminate the voice on C312X’s side. 2.3.

  • Page 9: Dnd

    C313X User Manual 2.4. DND 2.4.1. Enable DND  Press DND Key to enable DND mode.  The LED will turn orange. 2.4.2. Disable DND  In DND mode, press DND Key to unlock C312 keyboard.  The LED will turn blue. Figure 2.4 DND...
  • Page 10 C313X User Manual Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol...
  • Page 11 C313X User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
  • Page 12 C313X User Manual Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
