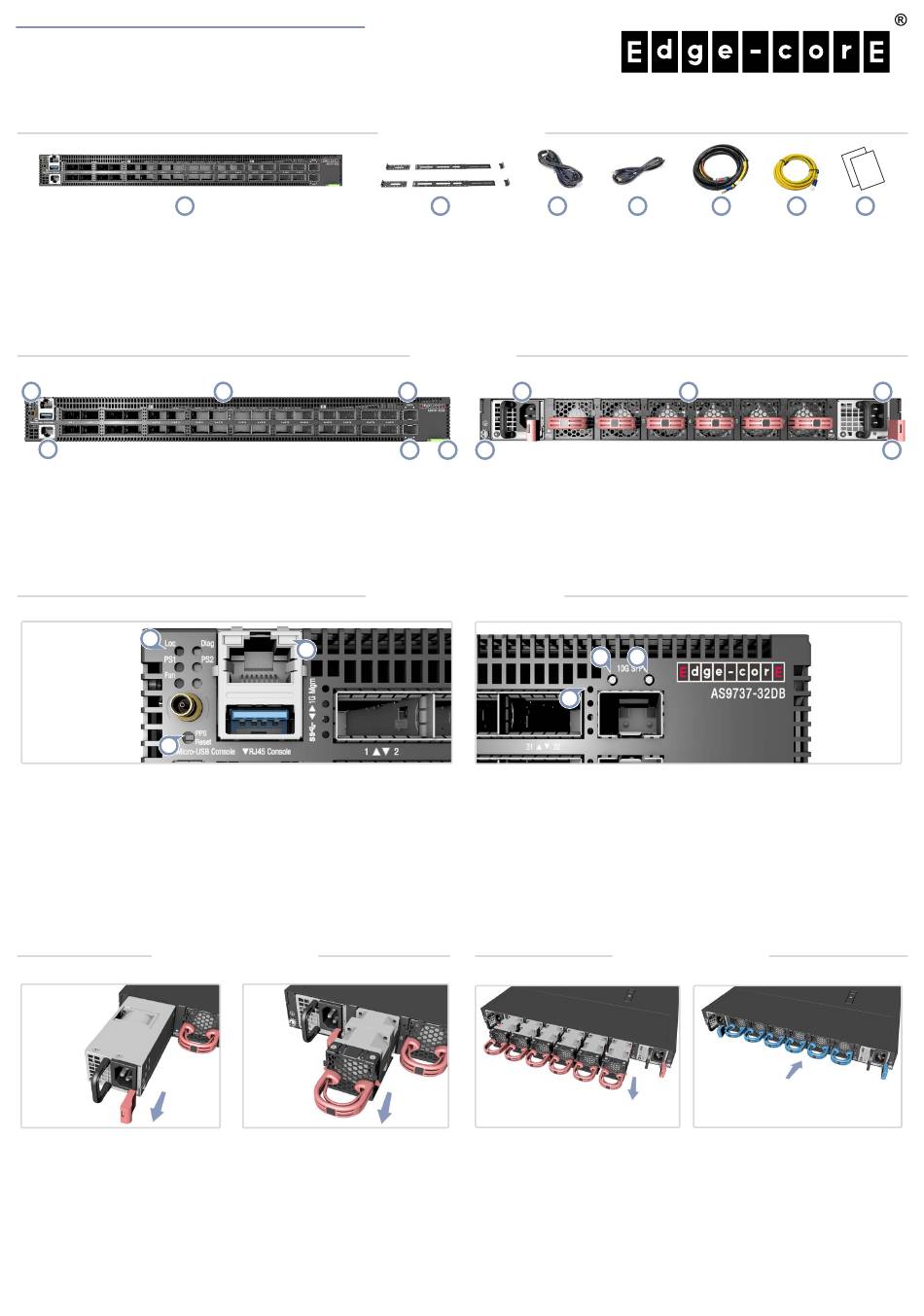

Quick Start Guide
32-Port 400G Ethernet Switch
AS9737-32DB
1
1.

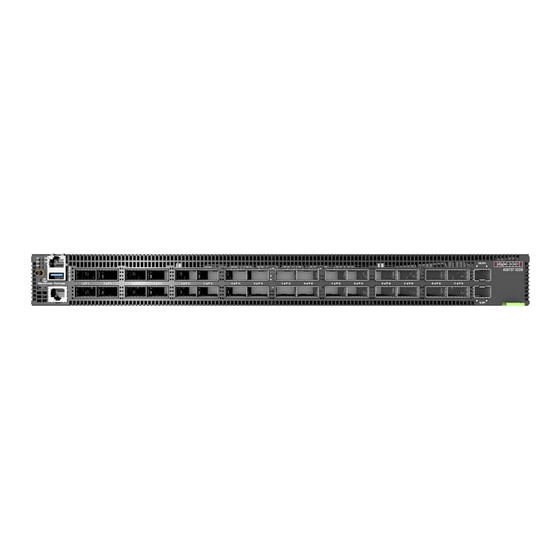

32-Port 400G Ethernet Switch AS9737-32DB
2.
Rack mounting kit—2 front-post brackets, 2 rear-post brackets
and ears, 20 screws, and 2 ear-locking screws
3.
Power cord (included with AC PSUs only)
4.
Console cable—RJ-45 to DE-9
1
2
1.
System LEDs and 1PPS timing port
2.
Management Ports: 1 x 1000BASE-T RJ-45, micro-USB/RJ-45
console, USB
3.
32 x 400G QSFP-DD ports
4.
1 x 10G SFP+ port
Loc: Flashing Amber (switch locator)
Diag: Green (OK), Amber (fault)
PS1/PS2: Green (OK), Amber (fault)
Fan: Green (OK), Amber (fault)
Reset Button
SFP+ 10G LEDs: Left: Green (10G), Amber (1G) | Right: Activity
SFP/RJ-45 Mgmt LEDs: Left: Amber (link) | Right: Amber (activity)
FRU Replacement
PSU Replacement
1.
Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.
Package Contents
3
System LEDs/Buttons
Fan Tray Replacement
1.
Pull the handle release latch.
2.
Remove fan tray from the
chassis.
3.
Install replacement fan with
matching airflow direction.
2
3
5.
DC power cable (included with DC PSUs only)
6.
Grounding wire
7.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
4
8
5
6
7
5.
1 x 1G SFP management port
6.
Product label
7.
2 x grounding screws (maximum torque 10 kgf-cm (8.7 lb-in))
8.
2 x AC or DC PSUs
9.
6 x fan trays
QSFP-DD LEDs
400G (50G PAM4): 1 LED Blue
2 x 200G Breakout (50G PAM4): 1 LED Cyan, 1 LED Green
4 x 100G Breakout (50G PAM4): 4 LEDs Green
100G (25G NRZ): 1 LED Green
4 x 25G Breakout (25G NRZ): 1 LED Orange, 3 LEDs Green
40G (10G NRZ): 1 LED Dark Green
4 x 10G Breakout (10G NRZ): 1 LED Yellow, 3 LEDs Green
1. F2B Airflow
Remove front-to-back (F2B)
airflow fan trays (red handles) and
PSUs (red release latches).
– 1 –
www.edge-core.com
4
5
6
9
Airflow Reversal
2. B2F Airflow
Install back-to-front (B2F) airflow
fan trays (blue handles) and PSUs
(blue release latches).
7
8
7
E112023-CS-R01
150200002654A
