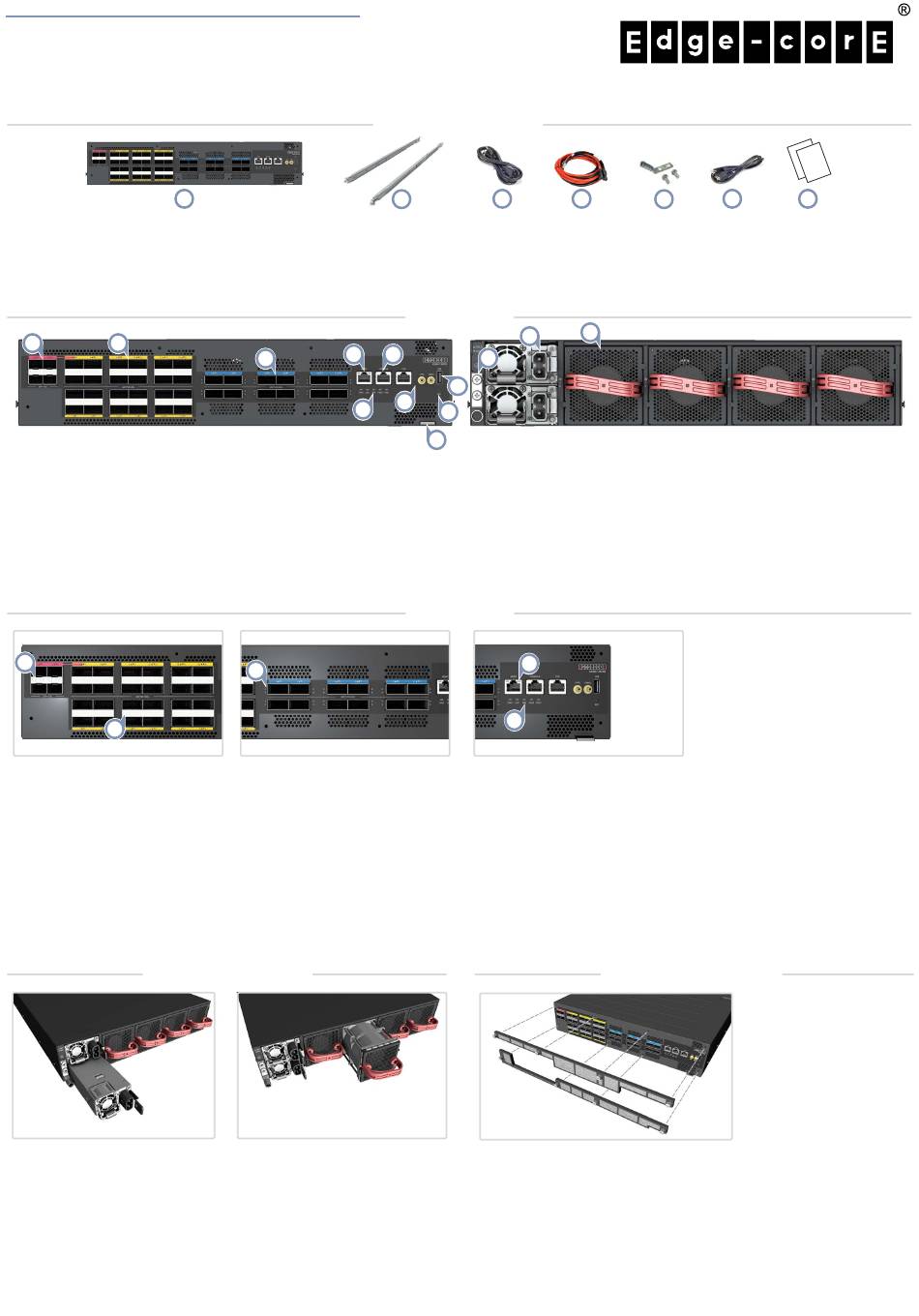

Edge-Core AGR560 Quick Start Manual

Quick Start Guide
Ethernet Switch/Router
AS9947-36XKB AC | AS9947-36XKB DC
1
1.
AS9947-36XKB AC or AS9947-36XKB DC Ethernet Switch/Router
2. Rack mounting kit — 2 rack-rail assemblies
3.
2 x AC power cord (included with AC PSUs only)
4.
2 x DC power cable (included with DC PSUs only)
2
1
1.
4 x 10G SFP+ (combined with 100G port 0)
2.
24 x 100G QSFP28
3. 12 x 400G QSFP-DD
4.
RJ-45 Management port
5.
RJ-45 Console port
6.
System LEDs
7.
Timing ports: 1 x RJ-45 ToD port, 1 x 1PPS connector, 1 x 10MHz
connector
1
2
1.
SFP+ Port LEDs:
LED1 (left) — Yellow (10G); LED2 (right) — Link/Activity*

2.
QSFP28 Port LEDs:
LED1 (left) — Blue (100G), Green (40G), Cyan (25G), Yellow

(10G); LED2 (right) — Link/Activity*
3. QSFP-DD Port LEDs:
LED1 (top) — Magenta (400G), Blue (100G), Cyan (25G),

Yellow (10G); LED2 (bottom) — Link/Activity*
*LED2 (right/bottom) — Green (all lanes linked), Yellow (not all lanes
linked), Blinking (activity)
FRU Replacement
PSU Replacement
1. Remove the power cord.
2.
Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.

Package Contents
2
4 5
3
7
6
3
Fan Tray Replacement
1.
Press the release latch in the
fan tray handle.
2. Pull out to remove the fan.
3.
Install replacement fan with
matching airflow direction.
3 4
5.
Grounding kit — grounding lug, 2 screws, and 2 washers
6.
Console cable — RJ-45 to DB-9
7. Documentation — Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
13
12
11
8
9
10
8.
USB port
9.
Reset button
10. Product tag
11.
Grounding points
12.
2 x AC or DC PSUs
13.
4 x fans
Front LEDs
4
5
4.
Management Port LEDs:
RJ-45 OOB Port — Left (activity), Right (speed)

5.
System LEDs:
DIAG — Green (OK), Red (fault detected)

LOC — Flashes Blue when the command is activated

FAN — Green (OK), Red (fault)

PSU0 and PSU1 — Green (OK), Red (fault)

Air Filter Attachment/Replacement
1.
Unscrew the filter cover captive screws.
2.
Remove the old filter and install a replacement filter.
3.
Replace the filter cover and tighten the captive screws.
– 1 –
www.edge-core.com
5 6
Optional Air Filter
7
E112024-MR-R01
150200002661A
