Summary of Contents for EAST COAST Monaco Wardrobe

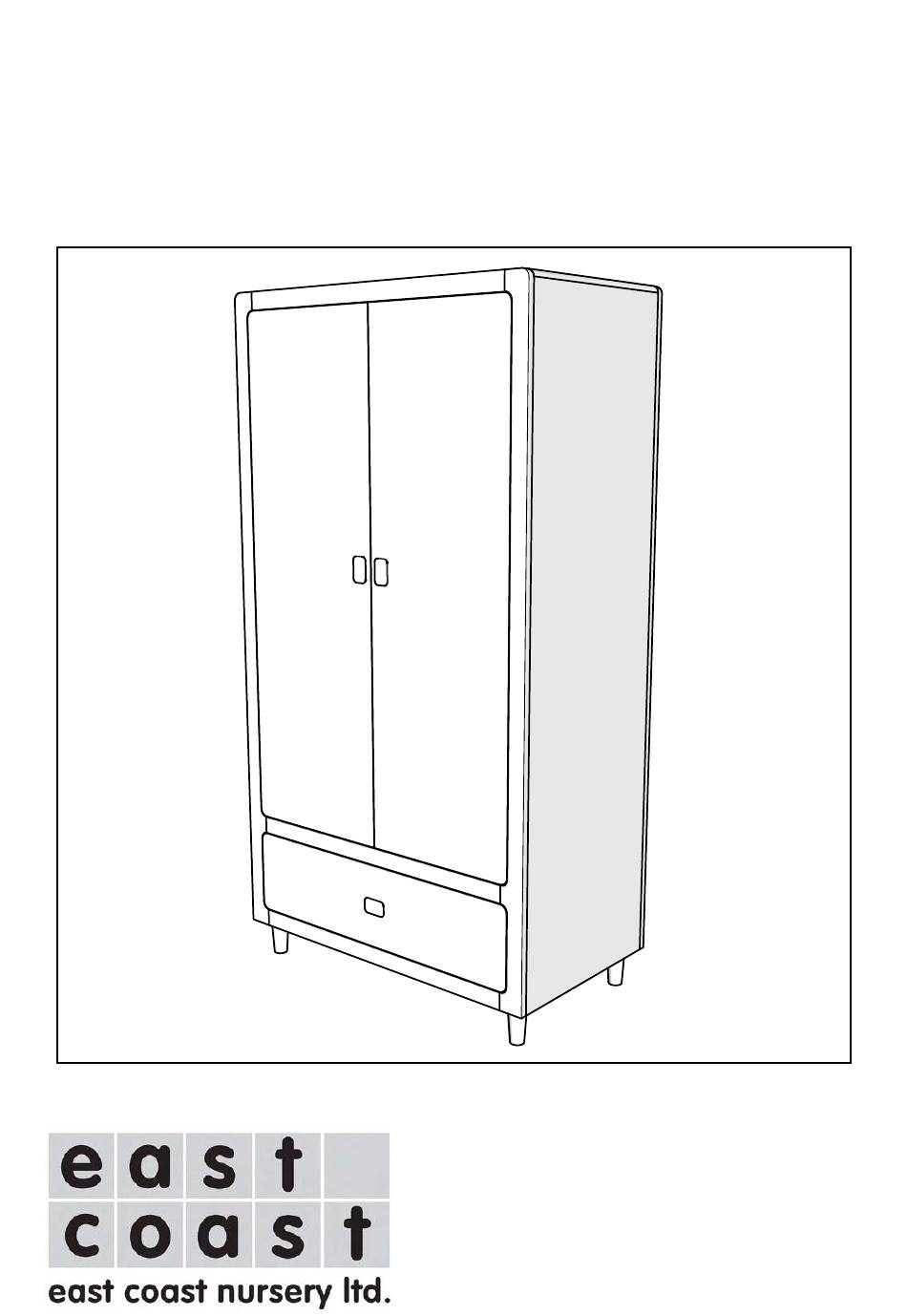

- Page 1 Monaco Wardrobe...
- Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Front Frame Side X 2 (L & R) Back Panel x2 Wardrobe Side x 2 (L & R) Door x 2 (L & R) Upper Front Crossbar Centre Front Crossbar Lower Front Crossbar Upper Rear Crossbar Lower Rear Crossbar Clothes Rail x 2 Rear Frame Side x 2 (L &...
- Page 4 Assembly 1 A x 4 Foot Foot Foot Lower Frame Foot Assembly 2 E x 4 Assembly 3 Upper Rear Crossbar D x 2 Lower Rear Crossbar D x 2...
- Page 5 Assembly 4 Upper Rear Crossbar Lower Rear Crossbar NOTE: Rounded corner Rear Frame Side Assembly 5 Back Panel Rear Frame Side Panel Joining Strip Back Panel...
- Page 6 Assembly 6 F x 5 F x 7 Assembly 7 Shelf D x 2 D x 2 Assembly 8 F x 2 D x 6 Wardrobe Side NOTE: Repeat for second Wardrobe Side.
- Page 7 Assembly 9 Wardrobe Side C x 2 Hinge block NOTE: Cutout opposite to hinge blocks Shelf Assembly 10 A x 2 Lower Frame...
- Page 8 Assembly 11 Wardrobe Side C x 2 A x 2 Assembly 12 Door Block G x 2 F x 2 F x 2 D x 4 Top Panel Assembly 13 Top Panel C x 4...
- Page 9 Assembly 14 C x 6 C x 6 I x 3 Assembly 15 Upper Front Crossbar D x 3 D x 3 Centre Front Crossbar Lower Front Crossbar...
- Page 10 Assembly 16 Front Frame Side Upper Front Crossbar Centre Front Crossbar Front Frame Side Lower Front Crossbar Assembly 17 F x 12...
- Page 11 Assembly 18 Front Frame (from Assembly 17) C x 12 I x 3 Assembly 19 Drawer Front G x 2 Drawer Side Drawer Base G x 2 Drawer Side...
- Page 12 Assembly 20 I x 2 I x 2 J x 4 Drawer Back Assembly 21 Clothes Rail Clothes Rail NOTE: Ensure that inner drawer runner is at forward edge before inserting the drawer. Position the drawer mounted strip inside the inner runner and holding the drawer level, gently slide the drawer all the way into the frame.
- Page 13 Assembly 22 NOTE: Orientation of part K. M x 6 H x 4 Per part M (24 total) P x 4 Assembly 23...
- Page 14 Assembly 24 H x 2 (6 total) Door NOTE: Repeat for second Door. Assembly 25 Screw 1 Screw 1 Screw 2 Screw 2 NOTE: To adjust the fit of the doors in the frame, position the wardrobe where it will be used and use screws 1 and 2: Screw 1 loosens the hinge to move the door forward or backward.
- Page 15 Assembly 26 The wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
- Page 16 Only use the wardrobe on a stable and level surface. Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. Customer Care line for this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX www.eastcoastnursery.co.uk 7849-01...
