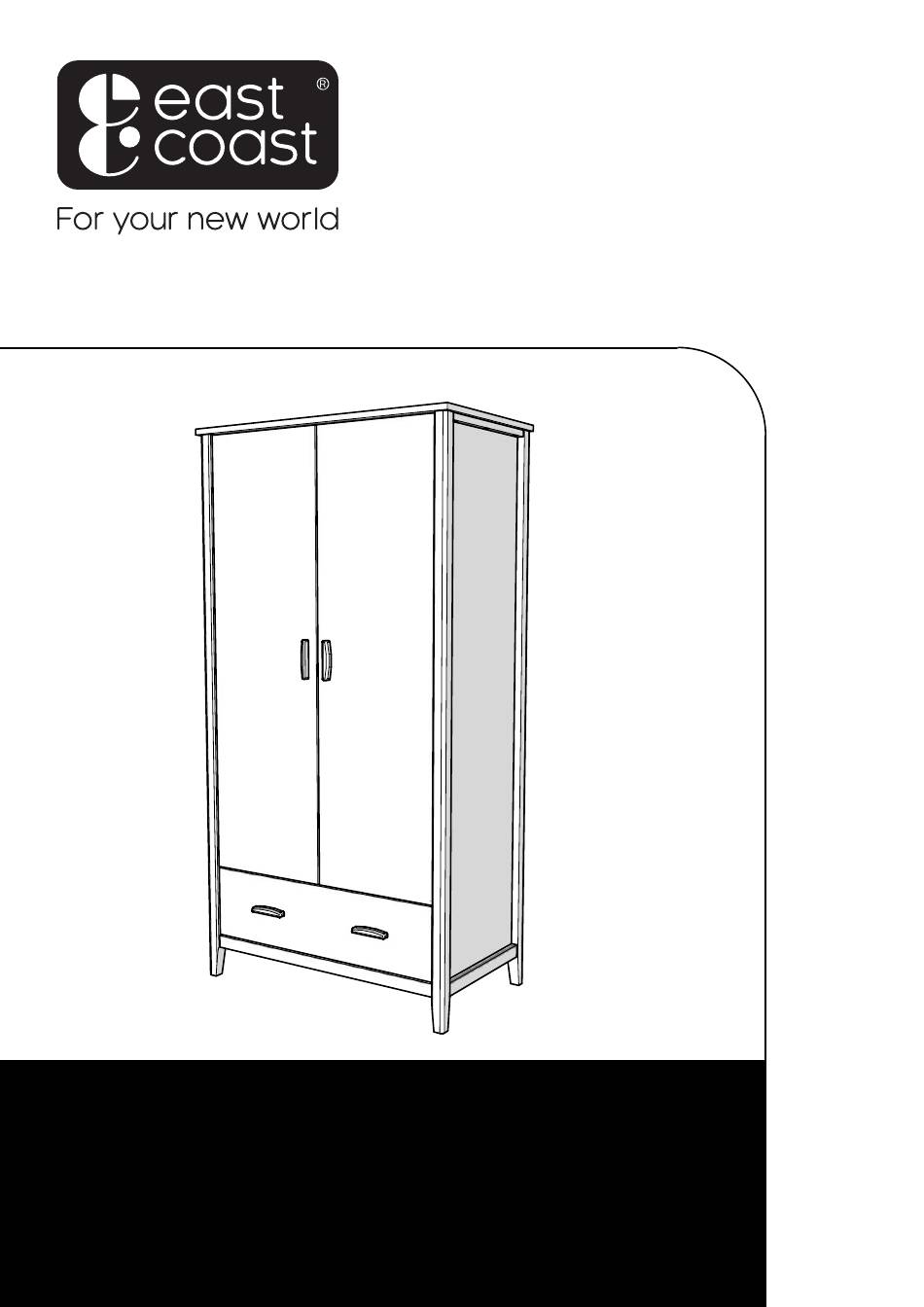

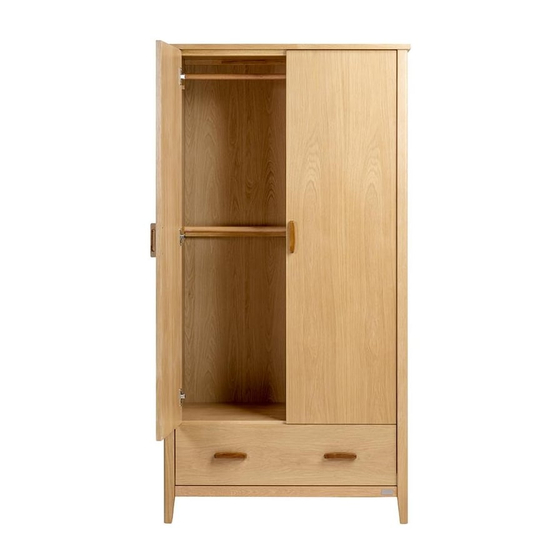

- Page 1 Dorset Wardrobe Assembly and care instructions...
- Page 2 IMPORTANT RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Wardrobe side x 2 (L & R) Back Panel x 2 Door x 2 Top panel Plain crossbar x 3 Upper crossbar x 2 Clothes rail x 2 Shelf Drawer base Drawer back Drawer front Drawer side x 2 (L & R)
- Page 4 Assembly 1 G x 5 Wardrobe side NOTE: Repeat for the second Wardrobe side. Assembly 2 Shelf A x 8 Plain crossbar Upper crossbar NOTE: Take care to insert the dowels A x 8 into the correct holes as indicated.
- Page 5 Assembly 3 Shelf Upper crossbar Plain crossbar Plain crossbar H x 5 1/2 turn clockwise Wardrobe side NOTE: Ensure that the Upper crossbars are fitted with part H inserted from above as shown. Assembly 4 Wardrobe side H x 5 1/2 turn clockwise...
- Page 6 Assembly 5 Top panel I x 11 Assembly 6 I x 3...
- Page 7 Assembly 7 Back Panel Back Panel K x 30 NOTE: This stage is best carried out with the wardrobe laid on its front on a soft surface. Place one Back panel into the recess on the back of the wardrobe in the positions shown in the diagram (make sure that the screw holes on the long edge are against the frame of the wardrobe, and the holes across the centre align with the Crossbar).
- Page 8 Assembly 8 Clothes rail Assembly 9 Drawer front B x 2 Drawer back B x 2 Assembly 10 Drawer front Drawer base M x 2 J x 4...
- Page 9 Assembly 11 Drawer side Drawer side Drawer back E x 2 C x 2 F x 2 NOTE: Repeat for second drawer side Assembly 12 Drawer runner NOTE: To prepare the Drawer runners, compare with images 1 and 2 below. If part A is in position 1, move forward against the spring pressure until firm resistance is felt.
- Page 10 Assembly 13 Completed Drawer To remove the drawer, locate the plastic tabs on the drawer mounted strips. Press gently down on one side and lift the other whilst pulling NOTE: Position the drawer mounted strip the drawer out. inside the inner runner and holding the drawer level, gently slide the drawer all the way into the frame.
- Page 11 Assembly 14 The wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (short) Screw (long)
- Page 12 Assembly 15 M x 1 D x 2 (6 total) J x 2 Door NOTE: Repeat for second door. Assembly 16 NOTE: Attach hook 1. to the front edge of the hinge plate and clip the rear of the hinge into position (2.). To adjust the fit of the doors in the frame, position the wardrobe where it will be used and use screws A and B: Screw A moves the door closer to, or further from the frame...
-
Page 13: Care And Maintenance
Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX eastcoastnursery.co.uk 8291-01...
