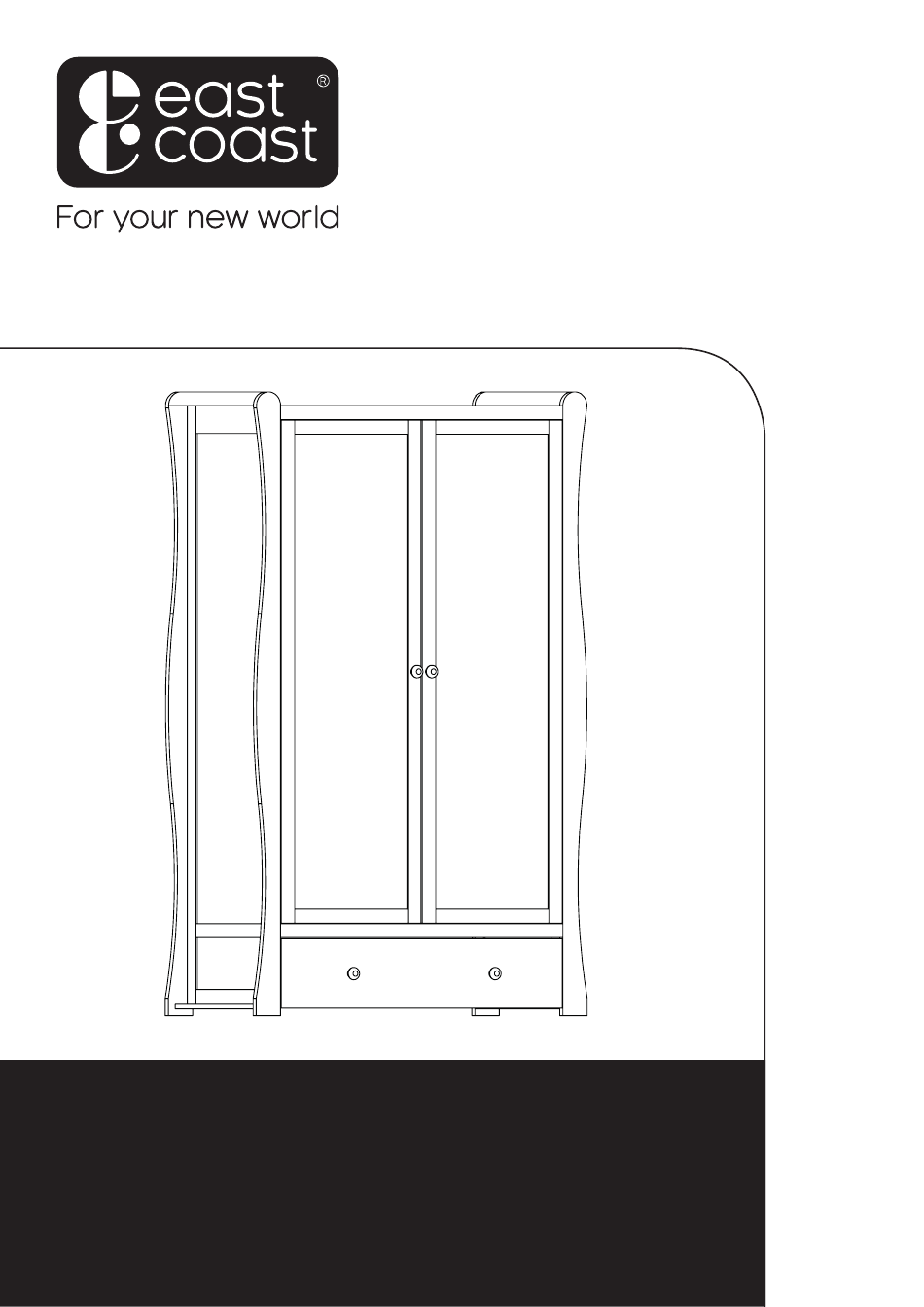

- Page 1 Nebraska Wardrobe Assembly and care instructions...
- Page 2 READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Sides (L+R) Top shelf Back panels Bottom shelf Hanging rails Panel joiner Drawer back Doors x 2 Drawer base Drawer sides Drawer (L+R) Drawer front support...
- Page 4 Assembly 1 Side (R) B x 2 Bottom shelf A x 3 Assembly 2 B x 2 Top shelf A x 3 Note: Repeat assembly 1 + 2 for other side (L).
- Page 5 Assembly 3 Back panels C x 13 C x 13 Panel joiner Assembly 4 C x 8 Hanging rail G x 4 Note: Repeat for other hanging rail...
- Page 6 Assembly 5 I x 2 J x 2 Drawer front D x 2 Drawer side (L) D x 2 K x 1 Drawer side (R) Assembly 6 L x 1 Drawer support...
- Page 7 Assembly 7 E x 2 F x 2 Drawer back Drawer base E x 2 D x 1 F x 2 Assembly 8 C x 6 M x 3 C x 2 C x 2 I x 1 H x 1 Door J x 1 H x 1...
- Page 8 Assembly 9 Note: Fitting doors can be easier with another person 1. Loosen screws on all hinge parts. 2. Slide hooks on hinge (i) under hinge plate (ii). 3. Click end of hinge (iii) onto clip at back of hinge plate (iv). Note: some force may be needed to click the two parts together.
- Page 9 Assembly 10 Screw 1 Screw 2 Screw 1 Screw 2 NOTE: To adjust the fit of the doors in the frame, position the wardrobe where it will be used and use screws 1 and 2: Screw 1 loosens the hinge to move the door forward or backward. Screw 2 moves the door closer to, or further from the frame.
- Page 10 Assembly 11 HINT: If wardrobe is to be used on floor that is uneven, doors could appear not to sit in the frame correctly. Packing could be placed under either the left or right rear feet to help level the wardrobe and improve the look of the doors.
- Page 11 Assembly 11 Assembly 12 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. The wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping.
-
Page 12: Care And Maintenance
Only use the wardrobe on a stable and level surface. Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. East Coast Nursery Ltd, Robertson House North Walsham, Norfolk, NR28 0BX, UK...
