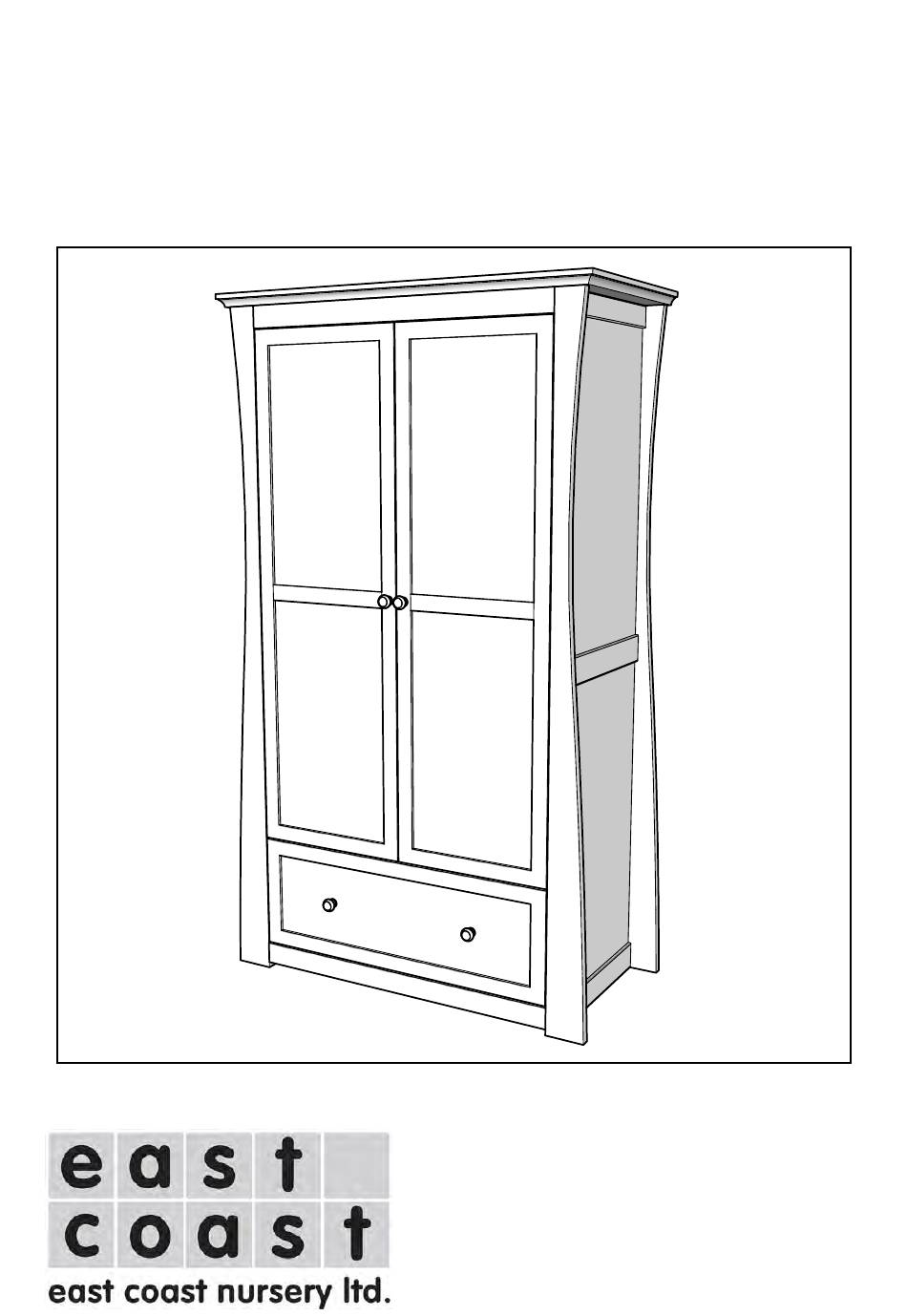

- Page 1 Devon Wardrobe...
- Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Wardrobe Side x 2 (L & R) Wardrobe Top Back Panel x 2 Door x 2 Back Panel Joining Strip Clothes Rail x 2 Shelf x 2 Front Upper Crossbar Drawer side x 2 (L & R) Rear Crossbar Front Lower Crossbar Drawer Base Drawer Back...
- Page 4 Assembly 1 Shelf Shelf Front Upper Crossbar (Note hole in top edge) Front Lower Crossbar Rear Crossbar C x 5 NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of each part. (Total 10 x part C) Assembly 2 Front Upper Crossbar Rear Crossbar...
- Page 5 Assembly 3 Shelf Shelf D x 4 Assembly 4 Wardrobe Side D x 4...
- Page 6 Assembly 5 C x 4 Assembly 6 Wardrobe Top E x 7...
- Page 7 Assembly 7 Back Panel Joining Strip L x 13 Back Panel H x 4 L x 13 Back Panel NOTE: This stage is best carried out with the Wardrobe laid on its front on a soft surface. Place one Back Panel into the recess on the back of the Wardrobe with the screw holes on the outer edges.
- Page 8 Assembly 8 Drawer Side H x 4 Drawer Front Drawer Side Assembly 9 Drawer Base Assembly 10 NOTE: Ensure slots in part F are visible. F x 4 Drawer Back Drawer Brace...
- Page 9 Assembly 11 N x 2 J x 2 G x 4 Assembly 12 Clothes Rail Turn 90° Clothes Rail Completed Drawer...
- Page 10 Assembly 13 The wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
- Page 11 Assembly 14 N x 1 I x 2 (6 total) NOTE: K x 1 Door Repeat for second Door. Assembly 15 Screw 1 Screw 2 NOTE: To Adjust the fit of the doors in the frame, position the wardrobe where it will be used and use screws 1 and 2: Screw 1 loosens the hinge to move the door forward or backward.
-
Page 12: Care And Maintenance
Only use the wardrobe on a stable and level surface. Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. Customer Care line for this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX www.eastcoastnursery.co.uk 7844-01...
