Assembly and care
instructions

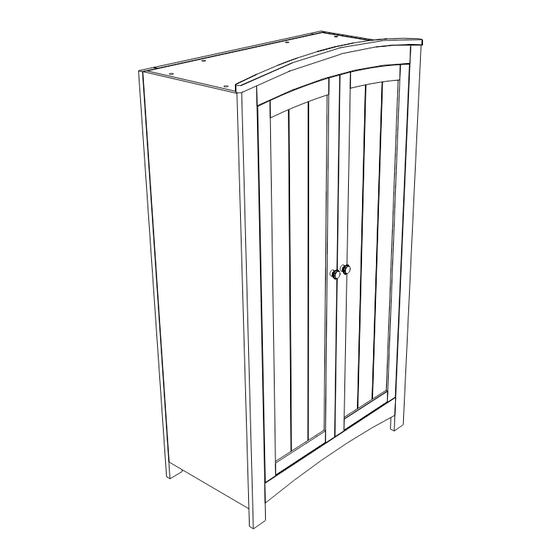

Coast
Wardrobe

Advertisement

loading
Need help?

Need help?

Do you have a question about the Coast and is the answer not in the manual?

Questions and answers

Related Manuals for EAST COAST Coast

Summary of Contents for EAST COAST Coast

  • Page 1 Coast Wardrobe Assembly and care instructions...
  • Page 2 RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
  • Page 3 Wardrobe Parts Wardrobe Rear leg (L & R) Side panel (L & R) Back Rear top panel (2) crossbar Wardrobe door (L & R) Back panel joiner strip Wardrobe base Front leg (L & R) Rear bottom crossbar Front bottom crossbar Wardrobe topper...
  • Page 4 Assembly 1 B x 2 J x 4 Left side panel NOTE: B x 2 Repeat attachment of part B to the Right side panel. Assembly 2 Wardrobe Wardrobe base FRONT A x 2 Left side panel A x 2 NOTE: Ensure that the holes (circled above) are at the front of the wardrobe on the...
  • Page 5 Assembly 3 J x 4 Wardrobe Wardrobe base Left side panel Assembly 4 Right side panel A x 2 A x 2...
  • Page 6 Assembly 5 J x 8 Wardrobe topper Rear and front crossbars J x 8 Assembly 6 Rear top crossbar Right rear C x 2 H x 2 Rear bottom crossbar...
  • Page 7 Assembly 7 C x 2 H x 2 Right rear Left Back panel rear leg joiner strip Assembly 8 Rear assembly B x 8 NOTE: You will need to flip the Rear assembly over B x 8 to carry out this step.
  • Page 8 Assembly 9 FRONT J x 8 NOTE: Repeat process for the front of the wardrobe. Assembly 10 Rear assembly NOTE: A x 8 Repeat cam nut process for the Right side panel and the Wardrobe top.
  • Page 9 Assembly 11 Wardrobe topper Front Leg (Right) Front bottom crossbar C x 4 H x 4 Front Leg (Left) Assembly 12 Front assembly B x 8 B x 8...
  • Page 10 Assembly 13 Front assembly A x 8 NOTE: Repeat cam nut process for the Right side panel and the Wardrobe top. Assembly 14 Left wardrobe door G x 2 E x 1 NOTE: Repeat for Right door.
  • Page 11 Assembly 15 Left wardrobe door assembly G x 2 Door G x 2 NOTE: Once the wardrobe is in position, use the screws on the hinges to adjust the fit of the doors. Repeat for Right door.
  • Page 12 Assembly 16 I x 4 F x 2 Assembly 17 Hanging rail x2 K x 1 NOTE: D x 1 Repeat for Right door.
  • Page 13 Assembly 18 The furniture is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (Short) Screw (Long)

  • Page 14: Care And Maintenance

    Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 8580 eastcoastnursery.co.uk...
