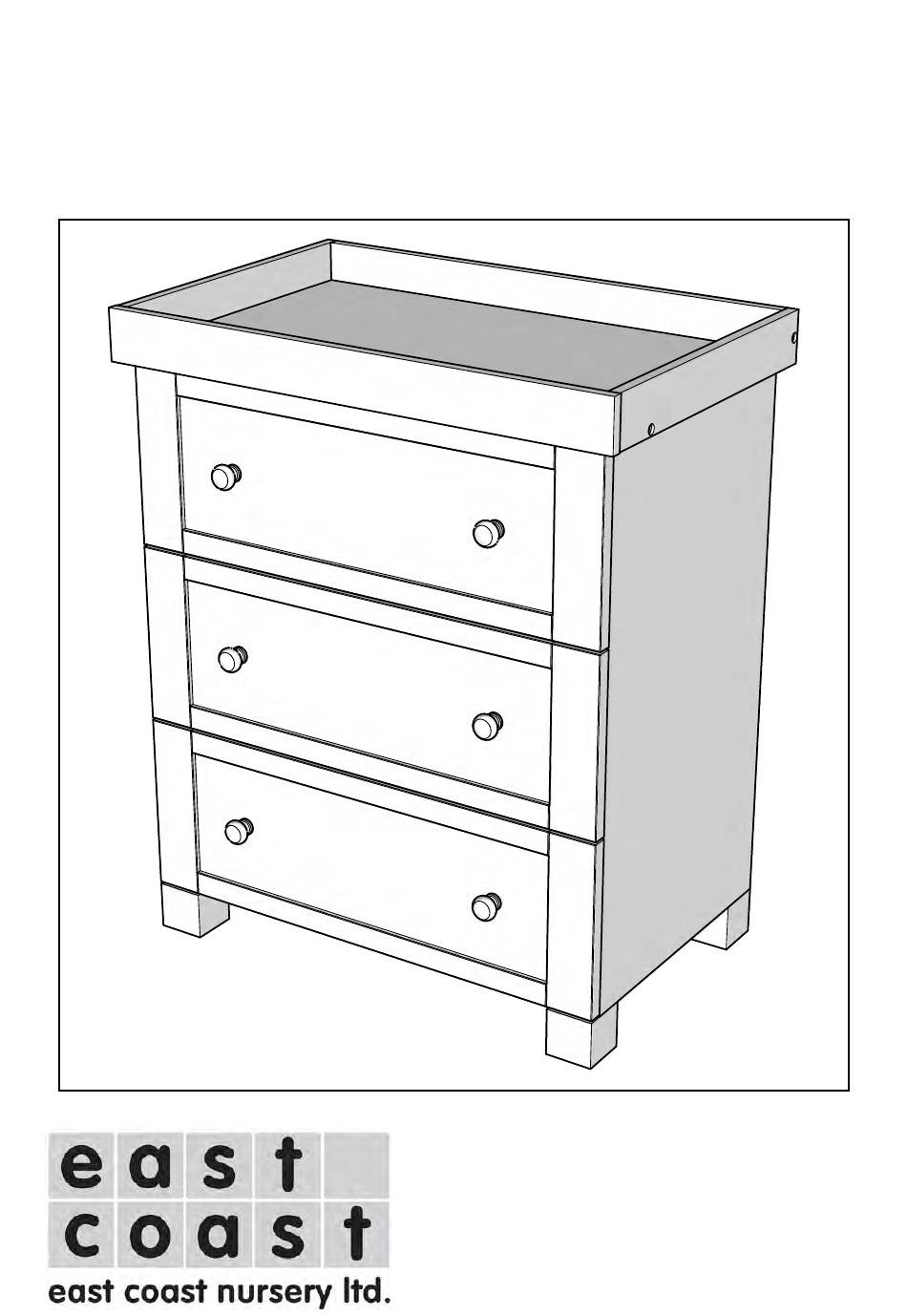

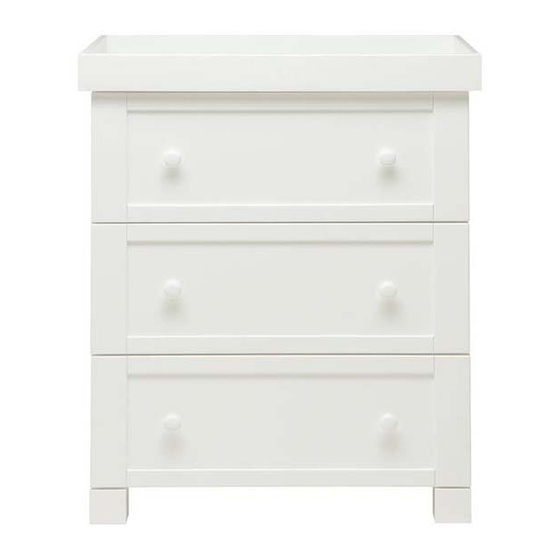

  • Page 1 MONTREAL Dresser...
  • Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
  • Page 3 Wooden Parts Changer Back Changer Front Changer Side x 2 Top Panel Lower rear Crossbar Upper Rear Crossbar Upper Front Crossbar Plain Crossbar x 3 Side Panel x 2 Base Back Panel x 2 Drawer Side (L&R) x 3 Drawer Back x 3 Drawer Brace x 3 Drawer Front x 3 Drawer Base x 3...
  • Page 4 Assembly 1 NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for All Crossbars the opposite end of each crossbar. (Total 24 dowels) A x 24 Assembly 2 Side Panel A x 2 Repeat for the opposite panel. (Total 4 dowels)
  • Page 5 Assembly 3 Upper Front Crossbar Plain Crossbar x 3 Upper Rear Crossbar H x 15 (45mm) Lower Rear Crossbar Assembly 4 Base I x 3 H x 2...
  • Page 6 Assembly 5 I x 3 F x 6 H x 6 Assembly 6 Top Panel G x 5...
  • Page 7 Assembly 7 Back Panel NOTE: Slot to top K x 28 Back Panel Assembly 8 Drawer Brace Drawer Front Drawer Side (R) Drawer Side (L) Drawer Back Drawer Base D x 9 Repeat for other 2 drawers...
  • Page 8 Assembly 9 E x 2 Handle Assembly 10 Changer Front (each end) A x 2 (each end) Changer Back A x 2 Changer Side (x 2)
  • Page 9 Assembly 11 Changer Side G x 2 Changer Back C x 2 NOTE: Insert Cam Nut (Part C) with arrowed slot facing the Changer Front. Changer Side To lock Changer Front in place, turn Cam nuts (part C) 1/2 turn clockwise with a large flat-bladed screwdriver Changer Front after assembly.
  • Page 10 Assembly 13 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Screw (15mm) Screw (25mm) Washer x 2...

  • Page 12: Care And Maintenance

    Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. Customer Care Hotline For this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 6898-2...
