Summary of Contents for EAST COAST Acre Wardrobe

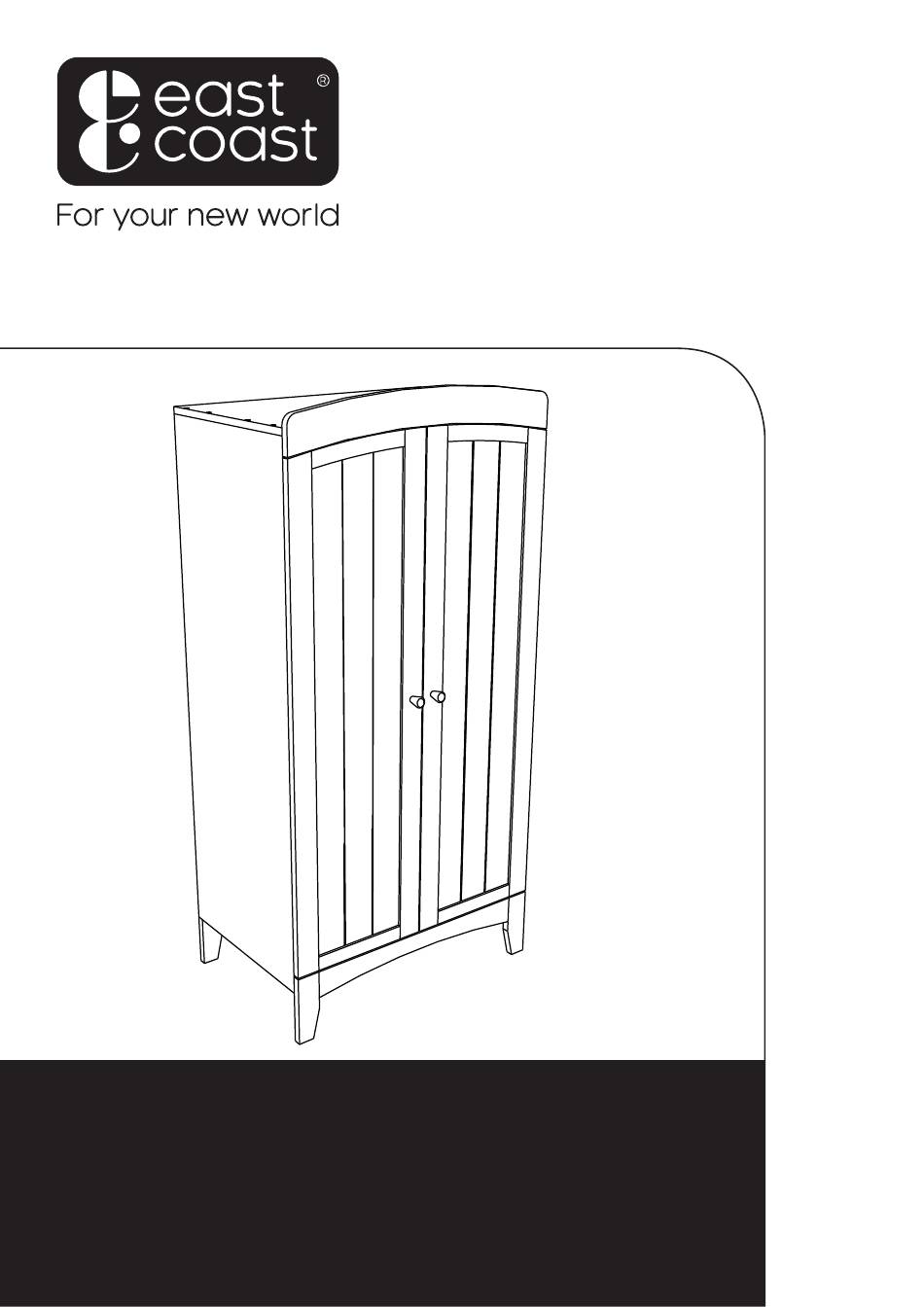

- Page 1 Acre Wardrobe Assembly and care instructions...
- Page 2 RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wardrobe Parts Wardrobe topper Wardrobe Side panel (L & R) Wardrobe door (L & R) Back panel Back panel joiner strip Wardrobe base panel Rear crossbar Rear leg Hanging rail (2) Front leg...
- Page 4 Assembly 1 Wardrobe base panel Rear crossbar H x 7 NOTE: Repeat process for opposite side(s). Assembly 2 Rear leg C x 4 Wardrobe base panel Front leg NOTE: Repeat process to secure the Front leg to the Wardrobe base panel. Do not tighten bolts fully until assembly is complete.
- Page 5 Assembly 3 Rear crossbar Base and leg assembly Right side C x 4 panel Assembly 4 Left side panel C x 4...
- Page 6 Assembly 5 H x 4 Assembly 6 F x 8 NOTE: Wardrobe Ensure that the Wardrobe top is the correct way round, with the pre-attached block at the front of the wardrobe.
- Page 7 Assembly 7 I x 2 Assembly 8 Wardrobe topper B x 3...
- Page 8 Assembly 9 H x 2 Assembly 10 Wardrobe topper A x 3...
- Page 9 Assembly 11 Back panel joiner strip G x 15 G x 15 Back panel Back panel Assembly 12 E x 3 per door x2 K per Right hinge wardrobe door NOTE: Repeat process for Left wardrobe door.
- Page 10 Assembly 13 Right wardrobe door Hinge 1. The narrow part of the front screw fits into the slot in the metal plate on the wardrobe side. Metal 2. The slot in the hinge fits under plate the rear screw head. (You may need to loosen the screw first).
- Page 11 Assembly 14 NOTE: Once the wardrobe is in position, use the screws on the hinges to adjust the fit of the doors. Assembly 15 Hanging rail x2 J x 1 D x 1 NOTE: Repeat process for Right wardrobe door.
- Page 12 Assembly 16 The furniture is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (Short) Screw (Long)
-
Page 13: Care And Maintenance
Ensure that the wall strap is used to securely attach the wardrobe to the wall to prevent tipping. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 8584 eastcoastnursery.co.uk...
