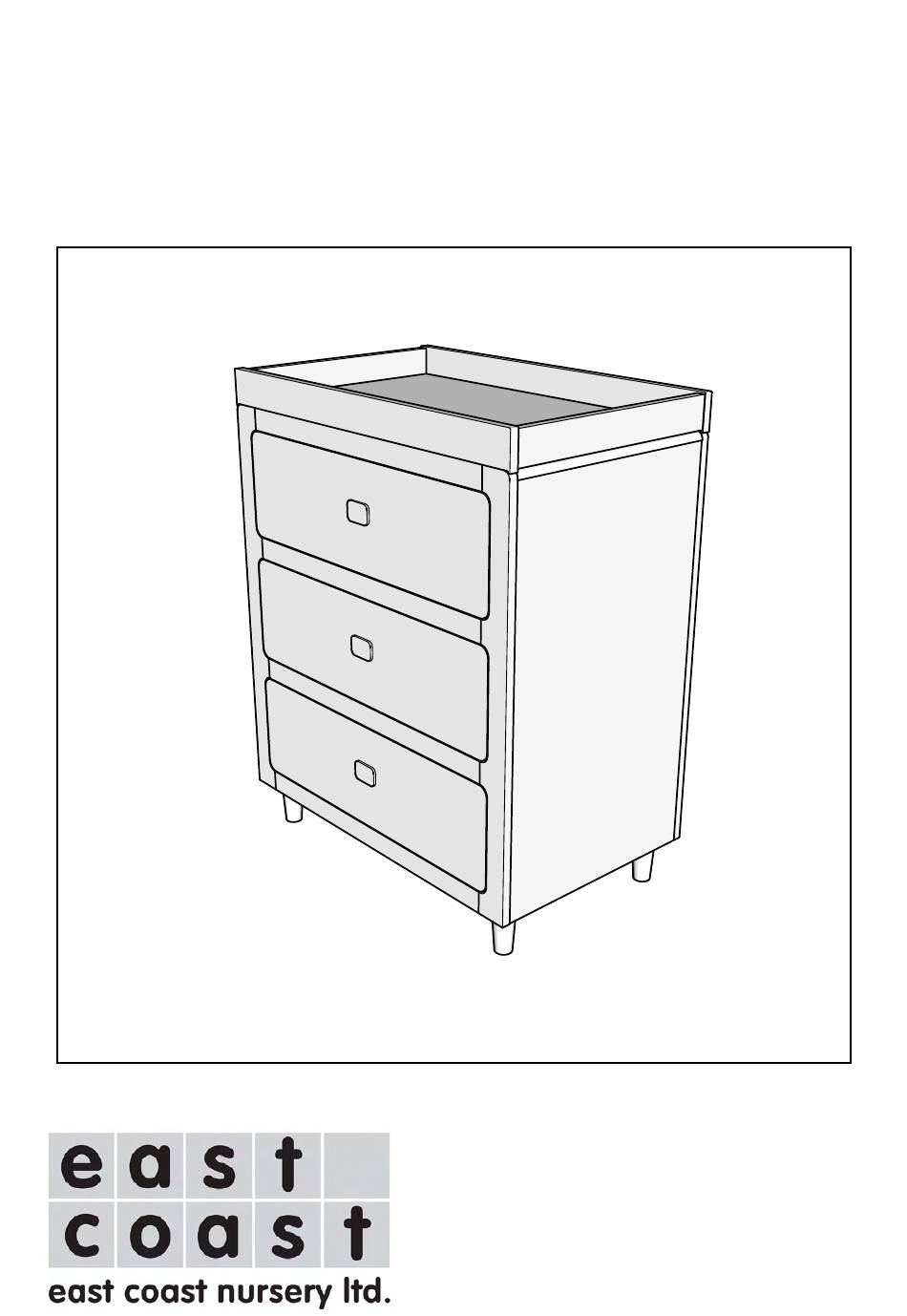

- Page 1 Monaco Dresser...
- Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Changer Back Front Upright x 2 (L & R) Changer Side x 2 (L & R) Changer Base Changer Front Dresser Top Rear Upright x 2 (L & R) Dresser Side x 2 (L & R) Panel Joiner Strip Back Panel x 2 Upper Front Crossbar Plain Crossbar x 2...
- Page 4 Assembly 1 A x 4 Foot Foot Foot Lower Frame Foot Assembly 2 Lower Frame NOTE: Repeat for opposite side. E x 2...
- Page 5 Assembly 3 Dresser Side A x 2 Lower Frame Assembly 4 Dresser Side D x 4 A x 2...
- Page 6 Assembly 5 F x 4 Dresser Top Assembly 6 C x 4...
- Page 7 Assembly 7 Upper Rear Crossbar D x 2 Lower Rear Crossbar D x 2 Assembly 8 NOTE: Rounded Corner Upper Rear Crossbar Rear Upright Lower Rear Crossbar NOTE: Square Corner...
- Page 8 Assembly 9 Back Panel Back Panel Rear Upright Panel Joiner Strip Assembly 10 F x 8...
- Page 9 Assembly 11 NOTE: Gap between metal drawer runner and frame edge D x 6 Assembly 12 Assembled Rear panel from Assembly 10 C x 4 C x 4 I x 3...
- Page 10 Assembly 13 Upper Front Crossbar Plain Crossbar Plain Crossbar D x 4 D x 4 Lower Front Crossbar Assembly 14 NOTE: Round Corner Upper Front Crossbar Front Upright Front Upright Plain Crossbar Plain Crossbar Lower Front Crossbar NOTE: Square Corner...
- Page 11 Assembly 15 F x 8 Assembly 16 D x 6...
- Page 12 Assembly 17 C x 4 C x 4 I x 3 Assembly 18 Drawer Side Drawer Front G x 4 Drawer Base Drawer Side NOTE: Gap this end NOTE: Repeat for remaining two drawers...
- Page 13 Assembly 19 I x 4 Drawer Back H x 4 NOTE: Repeat for remaining two drawers Assembly 20 NOTE: Ensure that inner drawer runner is at forward edge before inserting the drawer. Position the drawer mounted strip inside the inner runner and holding the drawer level, gently slide the drawer all the way into the frame.
- Page 14 Assembly 21 Changer Front F x 4 Assembly 22 Changer Side C x 4 Changer Base Changer Back Changer Side Changer Front K x 4 Assembly 23 Assembled changer J x 2 NOTE: DO NOT use the changer unless it is secured to the Dresser unit with parts J and L...
- Page 15 Assembly 24 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
- Page 16 Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. Customer Care line for this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX www.eastcoastnursery.co.uk 7848-01...
