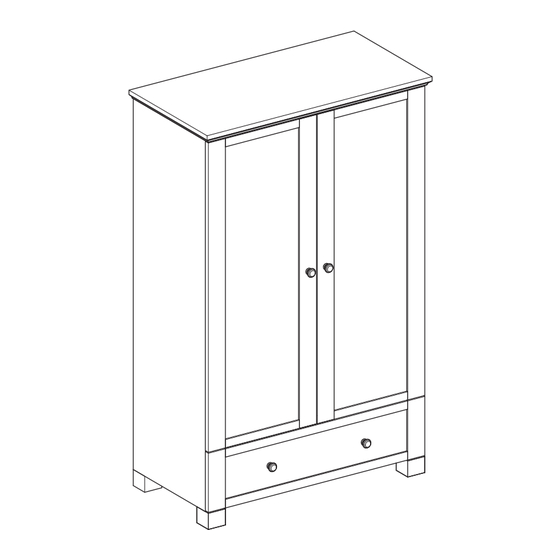

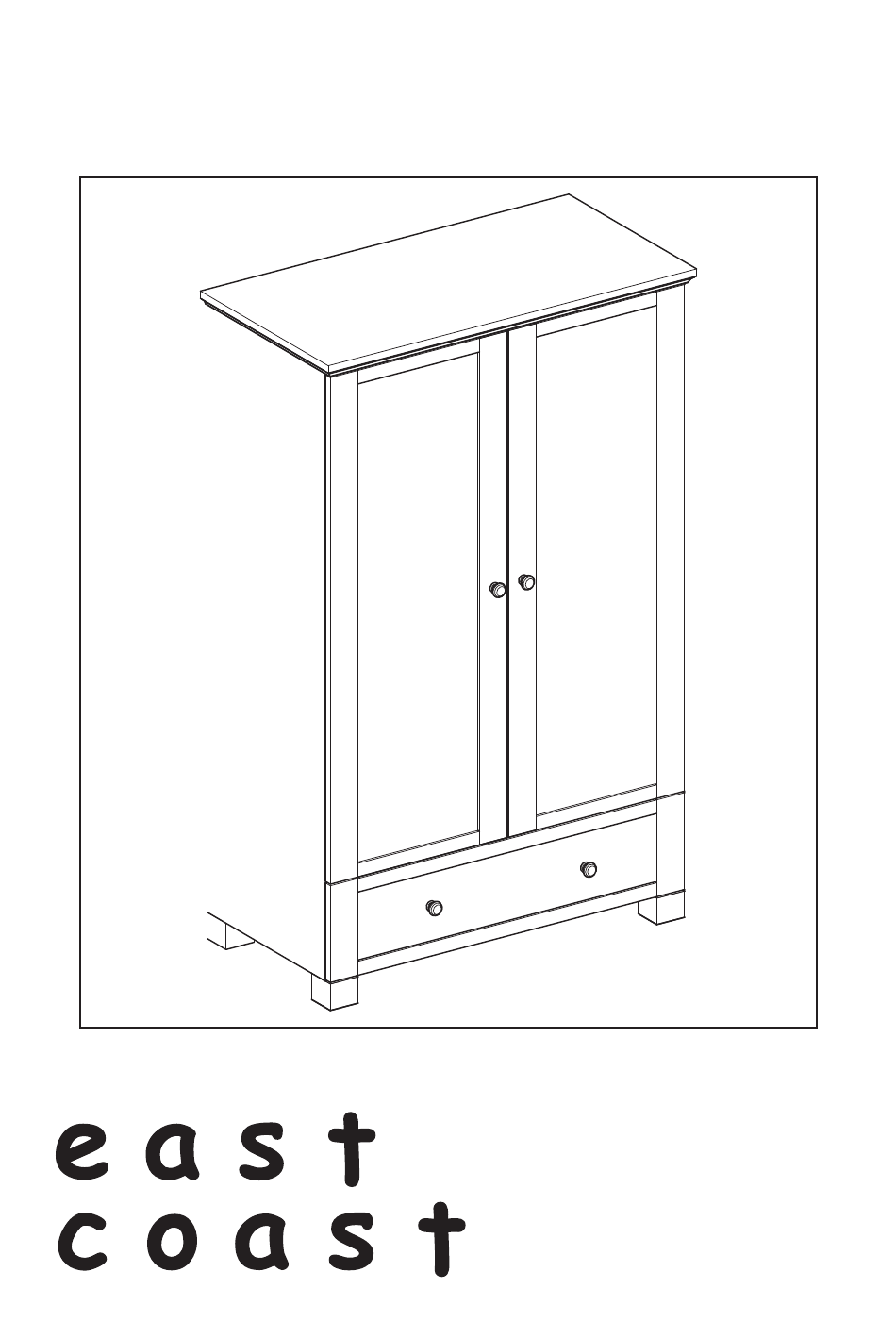

- Page 1 MONTREAL Two door Wardrobe...
- Page 2 IMPORTANT RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Parts: Top panel Door x 2 Large back panel x 2 Small back panel x 2 Upper shelf Rear frame x 2 Side panel x 2 Lower shelf Rear crossbar Drawer Back Right Drawer Side Front Crossbar x 2 Clothes rail Drawer Base Left Drawer Side Lower frame...
- Page 4 Wardrobe Assembly 1. Fitting the Dowels. Front Crossbar x 2 Top panel Rear crossbar NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of each crossbar. (Total 12 dowels) Wardrobe Assembly 2. Assembling top and bottom frames. Medium Bolt (27mm) x 2 Rear frame Medium Bolt (27mm) x 2...
- Page 5 Wardrobe Assembly 3. Fitting the Cam pins. Cam Pin x 4 Side panel NOTE: Repeat for second Side panel Wardrobe Assembly 4. Fitting the top and bottom frames. Medium Bolt (27mm) x 4 Side panel Large Bolt (70mm) x 3...
- Page 6 Wardrobe Assembly 5. Fitting the crossbars. Medium Bolt (27mm) x 2 Rear crossbar Front Crossbar Front Crossbar Cam Nut x 2 NOTES: Ensure that the Front crossbars have the large holes in its ends facing downward. Attach the Crossbars by inserting Cam Nuts, making sure that the arrow on one of the screwdriver slots points to the nearest edge of the part.
- Page 7 Wardrobe Assembly 7. Attaching the second Side panel. Side panel Cam Nut x 2 NOTE: Ensure all dowels are located in the correct holes in the second Side panel Wardrobe Assembly 8. Securing the second side panel. Medium Bolt (27mm) x 3 Large Bolt (70mm) x 3 Medium Bolt (27mm) x 5 NOTE: Fit the bolts as shown then stand the wardrobe up on a level surface for the remaining...
- Page 8 Wardrobe Assembly 9. Fitting the back panels. Medium Bolt (27mm) x 2 Short Woodscrew x 14 Slot at top edge Small back panel Short Woodscrew x 16 Large back panel Short Woodscrew x 14 Large back panel Short Woodscrew x 16 Small back panel NOTES: Fit the two Medium bolts before attaching the Back panels...
- Page 9 Wardrobe Assembly 10. Assembling the drawer. Long Woodscrew x 4 Right Drawer Side Drawer Front Drawer Base Long Woodscrew x 4 Drawer Back Left Drawer Side Wardrobe Assembly 11. Fitting the handles and hinges. Door Medium Woodscrew x 6 Small Bolt (24mm) x 3 Handle Handle x 2 Hinge x 3...
- Page 10 Wardrobe Assembly 12. Fitting and adjusting the doors. Screw B Screw A Door Side panel With the wardrobe in its final position, the doors can be fitted. Locate screw A on the hinge in the slot on the hinge plate attached to the Side panel The doors can be adjusted to fit by adjusting screws A and B in the rear part of each hinge to alter the angle and fit of each door in its frame.
- Page 11 Wardrobe assembly 13. Fitting the safety strap The Wardrobe is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Screw (15mm) Screw (25mm) Washer x 2...
-
Page 12: Care And Maintenance
• Glue is not included but can be used at your discretion on dowelled joints to further strengthen the wardrobe. • Once assembled, it is inadvisable to disassemble the wardrobe. Customer Care Hotline For this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX 5002/2...
