Telephone dialler
4-9

Connecting the outputs

The SmartLinkAdv can activate one (or more) outputs in response to
a recognized event.
All the outputs are open-collector outputs capable of sinking a
maximum current of 150mA.

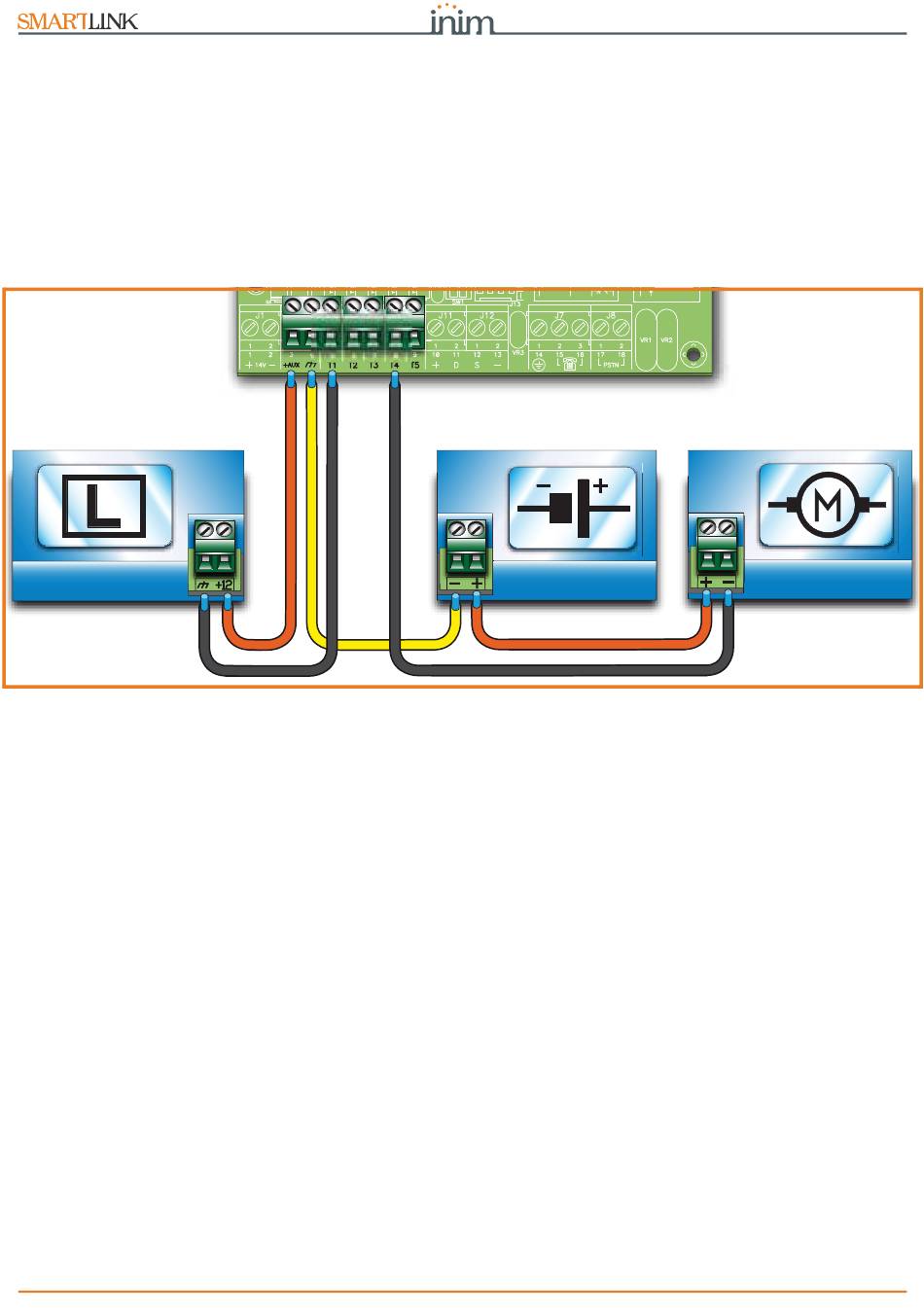

The wiring diagram below illustrates a series of typical connections
for the activation of a load when a Normally Open output closes to
GND.
SmartLinkAdv
PCB
Generic load External power Generic
12V supply 13.8V device
24 Installation
