- Page 1 Installation and programming manual EN 50136-1 EN 50136-2 EN 50130-4 EN 50130-5 CEB T014 SmartLink Advanced Telephone dialler Installation and programming manual...
-
Page 2: Warranty
Seller's option, any product not meeting the specifications. In no event shall INIM Electronics s.r.l. be liable to the purchaser or any other person for any loss or damage whether direct or indirect or... -
Page 3: Table Of Contents
Installation and programming manual Table of contents Warranty ......2 Limited warranty ......2 Copyright . - Page 4 Telephone dialler Earth connection ......Inserting the SIM card ......PC Connection .
-
Page 5: About This Manual
Installation and programming manual ABOUT THIS MANUAL DCMIINE0SLINKA MANUAL CODE 1.60 VERSION Terminology A device which sends voice calls or digital reports to programmed DIALER contact numbers in the event of an alarm. If not otherwise specified, refers to the SmartLinkAdv. DEVICE Persons whose training, expertise and knowledge of the products and QUALIFIED... -
Page 6: Chapter 1 General Information
Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work on INIM Electronics brand devices only. Description of the product and various models The SmartLink device described in this manual is a reserve DESCRIPTION telephone line generator and telephone dialler. -
Page 7: Supplied Documentation
The manuals are regularly supplied with the apparatus and can be downloaded from “Download” section website: www.inim.biz. The installation manual is included in the package. To order further copies contact the offices at INIM Electronics and quote the order number shown in Appendix C, Order Codes. General information... -
Page 8: Chapter 2 Device Description

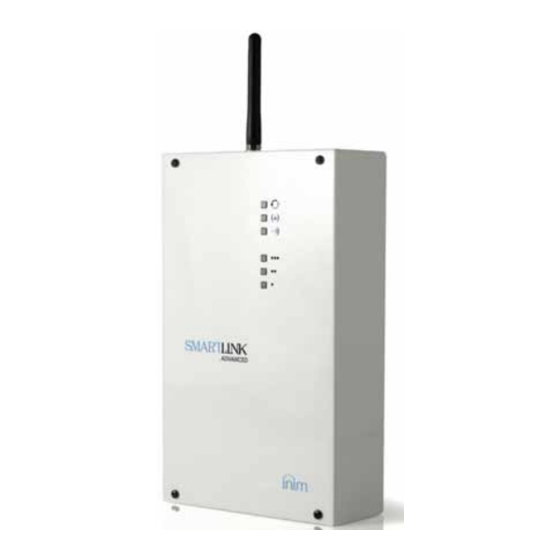

Telephone dialler Chapter 2 DEVICE DESCRIPTION Unpacking the device The device is packed inside a cardboard box containing: • The SmartLinkAdv comprises a PCB mounted inside a metal box • A bag containing the installation kit comprising: •• Antenna •• 10 x 3k9 Ohm 1/4W resistors ••... - Page 9 Installation and programming manual Metal backbox PCB board Table 2-1: Description of parts Terminal board Battery housing Open-tamper microswitch Wall-mount screw locations Battery connector Screw holes USB connector Cable entries SIM card connector Dislodgement-tamper microswitch location Antenna connector Antenna placement hole Default-data reset button Buzzer Activity LED...
-
Page 10: Signalling From Device
Telephone dialler Table 2-3: Technical specifications Models SmartLinkAdv/P SmartLinkAdv/G SmartLinkAdv/GP Nominal output 13.8 V ±10% voltage Voltage Functioning range 11 - 16 V standby status 40 mA 100 mA PCB current-draw during transmission 300 mA during maximum 70 mA 600 mA Maximum current draw of +AUX 400 mA terminals... - Page 11 Installation and programming manual Table 2-5: LED signalling Status Num. Colour Signalling Slow flashing Fast flashing Operating Device Green Device initializing status operating Flash cycle followed by pause: • 1 flash: general battery fault No faults Fault • 2 flashes: telephone line fault present •...
-
Page 12: Chapter 3 Smartlinkadv Functions
Telephone dialler Chapter 3 SMARTLINKADV FUNCTIONS Telephone line down management The devices that are to use the reserve line during PSTN line-down conditions must be connected to terminals 15 and 16. When the PSTN line is operating properly, terminals 15 and 16 are connected internally to 17 and 18. -
Page 13: Event Activations
SmartLinkAdv or customized by the installer. ATTENTION! INIM does not guarantee the total availability of all the GSM functions described in this manual, due to the various combinations of GSM service providers, SIM types and telephone models that may be in use. -
Page 14: Command And Shortcuts
Telephone dialler Command and Shortcuts A command is a request from the end-user or a device to the SmartLinkAdv to carry out one or more of its functions. During the programming phase of the SmartLinkAdv you can SHORTCUTS arrange the commands into shortcuts. A shortcut is a single request that activates a series of successive functions. - Page 15 Installation and programming manual 3-6-1 Commands over the GSM network Up to 200 actions can be programmed to activate in response to remote GSM commands. Each of the actions can be triggered by either an SMS command or a Caller ID command or both. Users who wish to activate a command via SMS text must enter the COMMAND VIA SMS command details as follows:...
-
Page 16: Easyscan
GSM/GPRS service provider. INIM provides device programming functions which may be capable of restoring this feature, by means of manual changes to the respective parameter settings. -
Page 17: Chapter 4 Installation
Installation and programming manual Chapter 4 INSTALLATION Wall-mounting The SmartLinkAdv should be located in a place that is not on view or easily accessible to outsiders. ATTENTION! Verify that the GSM network signal of the selected provider is adequate. Do not install the device near metal objects. Ensure that there are at least two metres between the device and other electrical devices. -
Page 18: Mounting The Antenna
Telephone dialler The protective earthing system must be compliant with all safety standards and laws in force. ATTENTION! Ensure that the Mains is switched Off during the mains connection phase. Danger of electric shock. Connect the power supply (already connected to the mains) to terminals “+ 14 -”... -
Page 19: Telephone Connections
Installation and programming manual Telephone connections Connect the PSTN line to terminals 17 and 18 (Table 2-2 "Terminals on the terminal board"). Note SmartLinkAdv is protected against eventual lightning strikes. Connect the telephone equipment (or other device/apparatus that requires a reserve telephone line) to terminals 15 and 16. Up to 4 devices can be connected in parallel. -
Page 20: Pc Connection
Once connected to the SmartLinkAdv, the USB device installation driver recognized by the PC provides the SmartLeague software program installation folder, specifically the following folder (for an installation at default): C:\Program Files\Inim\SmartLeague\drivers\SmartLink_advanced 4-7-2 Connecting via GPRS The connection with the SmartLinkAdv occurs only after a request for teleservice made through an SMS command. -
Page 21: Wiring And Balancing Alarm Detectors
Installation and programming manual Wiring and balancing alarm detectors The wiring and respective balancing method depend on the type of Gold detector you are installing, and the level of protection you wish to White Orange achieve. The detectors can be powered through: •... - Page 22 Telephone dialler 4-8-2 Single balancing Single zones can discriminate 3 conditions on the entire terminal: • standby • alarm • tamper (short-circuit) For each of these the SmartLinkAdv reads different values of the equivalent resistance on the terminal, shown below in Ohm: 6K8Ohm Zone 1/4W...
- Page 23 Installation and programming manual 4-8-4 Double-Zone balancing Double zones without EOL resistor can discriminate 5 conditions on the entire terminal: • standby on both zones • alarm on zone 1 and standby on zone 2 • alarm on zone 2 and standby on zone 1 3K9Ohm •...
-
Page 24: Connecting The Outputs
Telephone dialler Connecting the outputs The SmartLinkAdv can activate one (or more) outputs in response to a recognized event. All the outputs are open-collector outputs capable of sinking a maximum current of 150mA. The wiring diagram below illustrates a series of typical connections for the activation of a load when a Normally Open output closes to GND. -
Page 25: Chapter 5 First Power Up
Installation and programming manual Chapter 5 FIRST POWER UP In order to allow the system to perform an accurate auto-enrolling operation on "First power-up", work carefully through the following steps. ATTENTION! When completing the wiring ensure that the power supply sources (mains 230V a.c. - Page 26 Telephone dialler Note The results obtained by the “Easyscan” regarding the GSM signals should not be considered constant throughout time, as they are subject to changes relating to the GSM service. Therefore, you should carry out the Easyscan operation at regular intervals or, at least, when the system is undergoing maintenance.
-
Page 27: Chapter 6 Project Development And Programming
Installation and programming manual Chapter 6 PROJECT DEVELOPMENT AND PROGRAMMING The SmartLinkAdv system was designed to allow programming via PC. All the functions relating to programming and the project are accessible through the software program. You will need: • a computer which can be connected to the already-installed SmartLinkAdv. -
Page 28: Using The Software Program
Internet. It is possible to consult FAQ page, make enquiries and suggestions via e-mail. Access to the area reserved for registered users of the INIM website. After typing in a Username and Password, you can access the updated versions of the... -
Page 29: Programming Via The Software
Installation and programming manual Table 6-2: SmartLeague - solutions The freshly opened template remains in the forefront whilst the other open template and the Homepage remain in the background. Installation tree structure. Section in question. Programming template of the component to be programmed (selected from the tree structure). -
Page 30: Reset Default Settings
Telephone dialler Select the part of the system you wish to program from the tree menu on the left. Set the parameters in the Programming section on the right. Write the data on the SmartLinkAdv by clicking on the key. During data upload/download operations: •... - Page 31 Installation and programming manual You can reach this section through the Monitoring template which is next to the Programming template, or by selecting Control panel, Monitoring options. The section provides two sub-sections which can be opened by clicking on the header label: •...
-
Page 32: Chapter 7 En50136 Compliance
Telephone dialler Chapter 7 EN50136 COMPLIANCE SmartLinkAdv series devices are EN 50136-1 and EN 50136-2 compliant. The SmartLeague software program provides preset programming parameters which guarantee 50136-2 standard compliance. activate these preset parameters automatically select Programming, EN50136-2 standard compatibility of SmartLinkAdvanced system. -
Page 33: Access Levels
Installation and programming manual Access Levels The standard defines the following access levels to the device and distinct limitations of use of the system: • Level 1 - access by any person (e.g. passer-by) • Level 2 - user access •... - Page 34 Telephone dialler Terminal “T2” must manage “Hold-up alarm” and “Fault” signals coming from another two CIE outputs. Therefore, it is necessary to set up a double-zone balance connection with EOL (refer to paragraph 4-8-5 Double balanced zone with EOL) and program terminal T2 as a double zone with the following zone descriptions: •...
-
Page 35: Appendix A Events
Installation and programming manual Appendix A EVENTS An event is a condition recognized by the SmartLinkAdv; each event is characterized by an activation (when an event occurs) and a restoral (when the event ends). The following table shows the events the control panel recognizes, the number of events for each type, the trigger and restoral method of each event and whether the event is a pulse event (pulse events restore automatically soon after activation). - Page 36 Telephone dialler Table 7-3: Event type Name Occurs when... Restores when ... Number of Pulse events events Deep discharge Battery electrically disconnected Battery connected due to deep discharge shutdown The primary 230V a.c. power The primary 230V a.c. power Mains failure source is not present (blackout) source restores Invalid code...
-
Page 37: Appendix B Declaration Of Conformity
1999/5/EC. Islenska: Hér með lýsir INIM Electronics yfi r því að SmartLinkAdv er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/ Italiano: Con la presente, INIM Electronics s.r.l. -
Page 38: Appendix C Order Codes
High-performance GSM antenna GSM-ANT 200N High-performance GSM antenna with 3m of cable for indoor use IPS12015 1A 14Vdc power supply LinkUSBAB USB cable link to PC and/or INIM devices SmartLeague Programming software, runs under Windows SmartLinkAdv/G PSTN and GSM network dialler SmartLinkAdv/GP... -
Page 39: Notes
Installation and programming manual Notes... - Page 40 Telephone dialler ISO 9001 Quality Management certified by BSI with certificate number FM530352 via Fosso Antico snc - fraz. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz...
