Double zones without EOL resistor can discriminate 5
conditions on the entire terminal:
• standby on both zones
• alarm on zone 1 and standby on zone 2
• alarm on zone 2 and standby on zone 1
• alarm on both zones
• tamper (wire cutting)
For each of these the SmartLinkAdv reads different
values of the equivalent resistance on the terminal,
shown below in Ohm:
Ohm
> 3900 + 6800
3900 + 6800
6800
3900
0
Double zones with EOL resistors can discriminate 6
conditions on the terminal:
• standby on both zones
• alarm on zone 1 and standby on zone 2
• alarm on zone 2 and standby on zone 1
• alarm on both zones
• tamper (wire cutting)
• tamper (short-circuit)
For each of these the SmartLinkAdv reads different
values of the equivalent resistance on the terminal,
shown below in Ohm:
Ohm
> 2 x 3900 + 6800
> 2 x 3900 + 6800
3900 + 6800
2 x 3900
3900
0
Installation
Double-Zone balancing
Zone 1 Zone 2
(double)
tamper
alarm alarm
standby alarm
alarm standby
standby standby
Double balanced zone
Zone 1 Zone 2
(double)
tamper (wire cutting)
alarm alarm
standby alarm
alarm standby
standby standby
tamper (short-circuit)

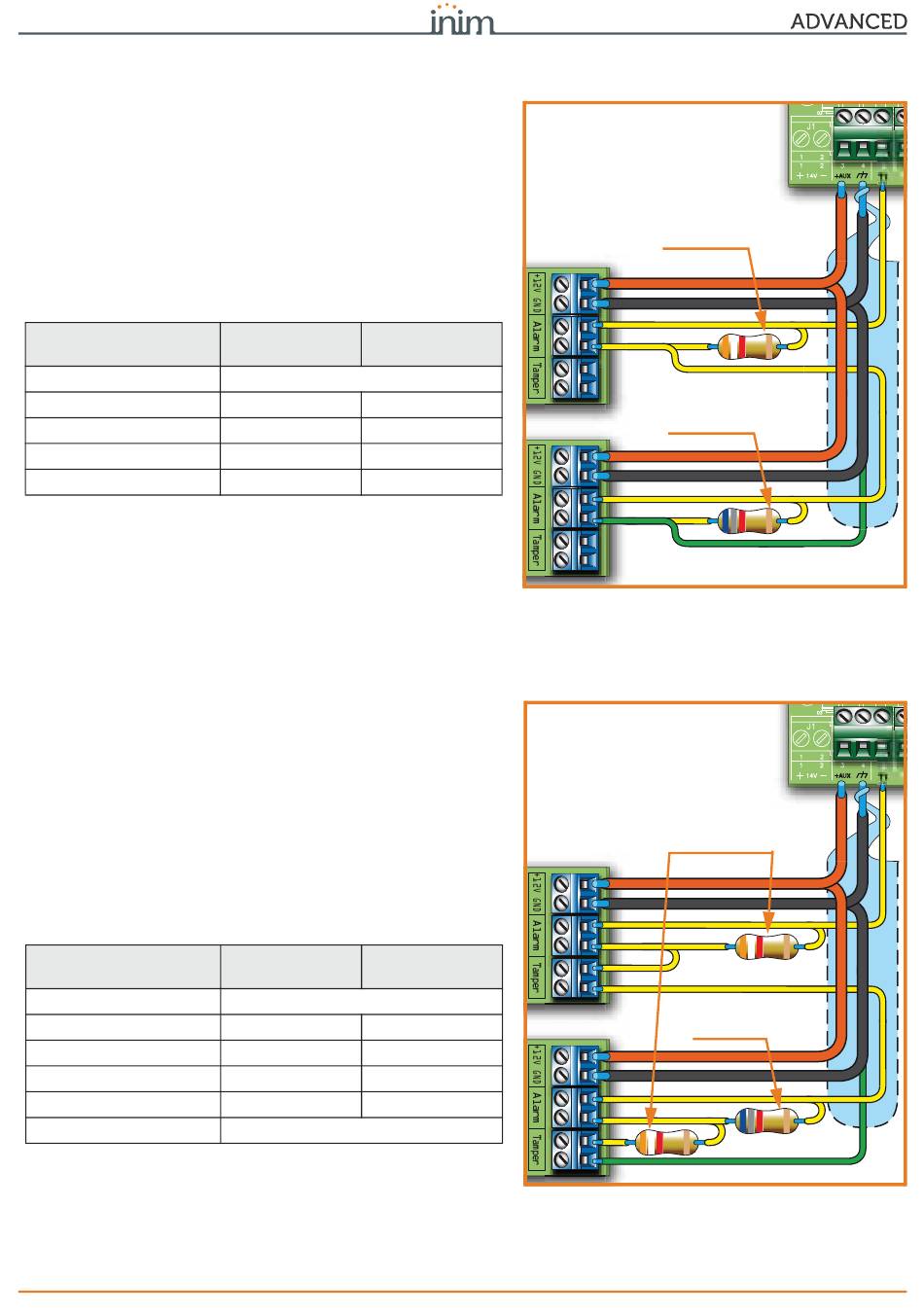

4-8-4
3K9Ohm
1/4W
Zone 1
6K8Ohm
1/4W
Zone 2
4-8-5
with EOL
3K9Ohm
1/4W
Zone 1
6K8Ohm
Zone 2
1/4W
