Single zones can discriminate 3 conditions on the
entire terminal:
• standby
• alarm
• tamper (short-circuit)
For each of these the SmartLinkAdv reads different
values of the equivalent resistance on the terminal,
shown below in Ohm:
Ohm
> 6800
6800
0
Double balancing discriminates 4 distinct conditions
on the zone terminal:
• standby
• alarm
• tamper (short-circuit)
• tamper (wire cutting)
For each of these the SmartLinkAdv reads different
values of the equivalent resistance on the terminal,
shown below in Ohm:
Ohm
> 6800
6800
6800 / 2
0
22

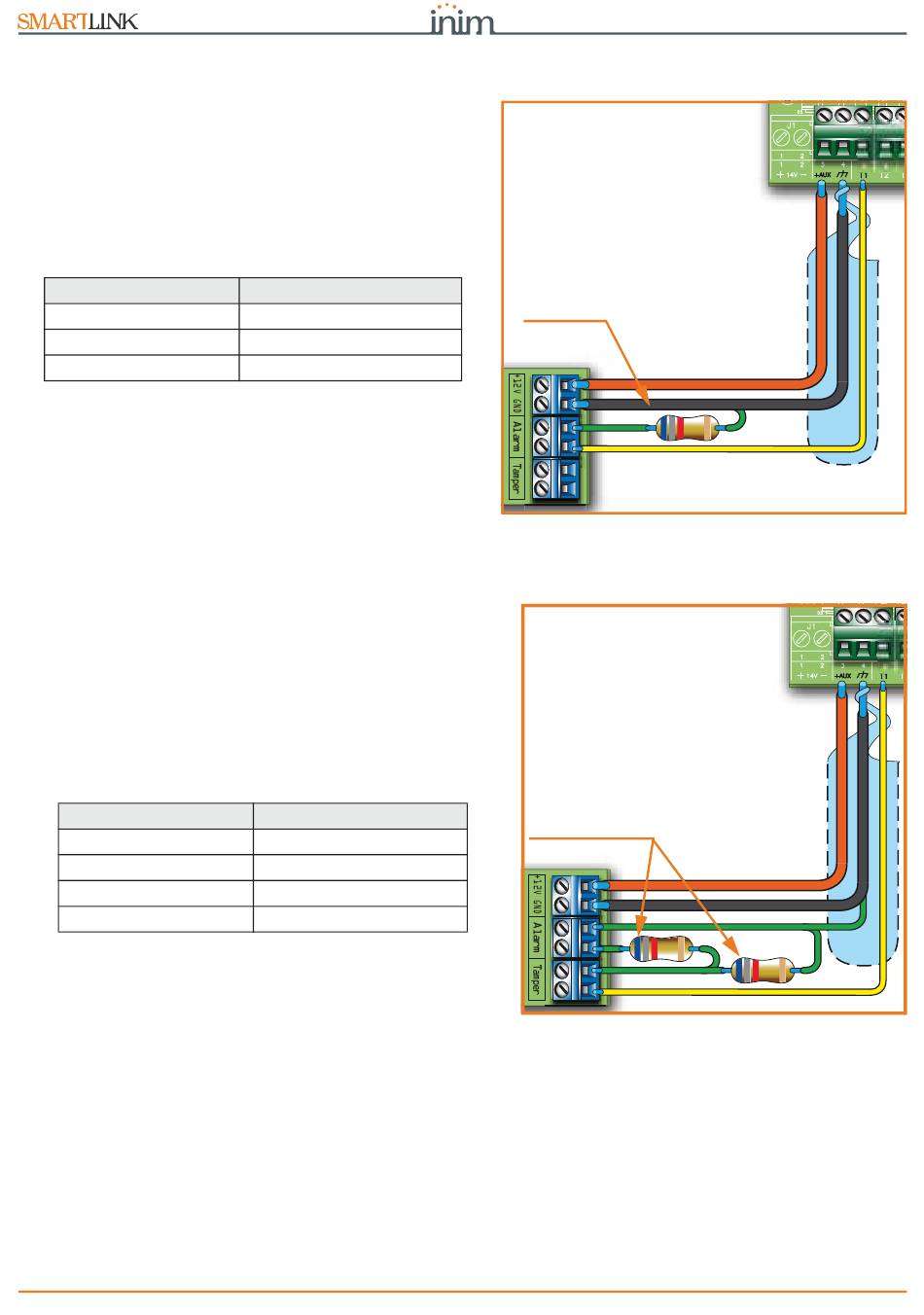

Single balancing
Zone
alarm
standby
tamper
Double balancing
Zone
tamper (wire cutting)
alarm
standby
tamper (short-circuit)
4-8-2
6K8Ohm
1/4W
4-8-3
6K8Ohm
1/4W
