Summary of Contents for Future Automation PS Series

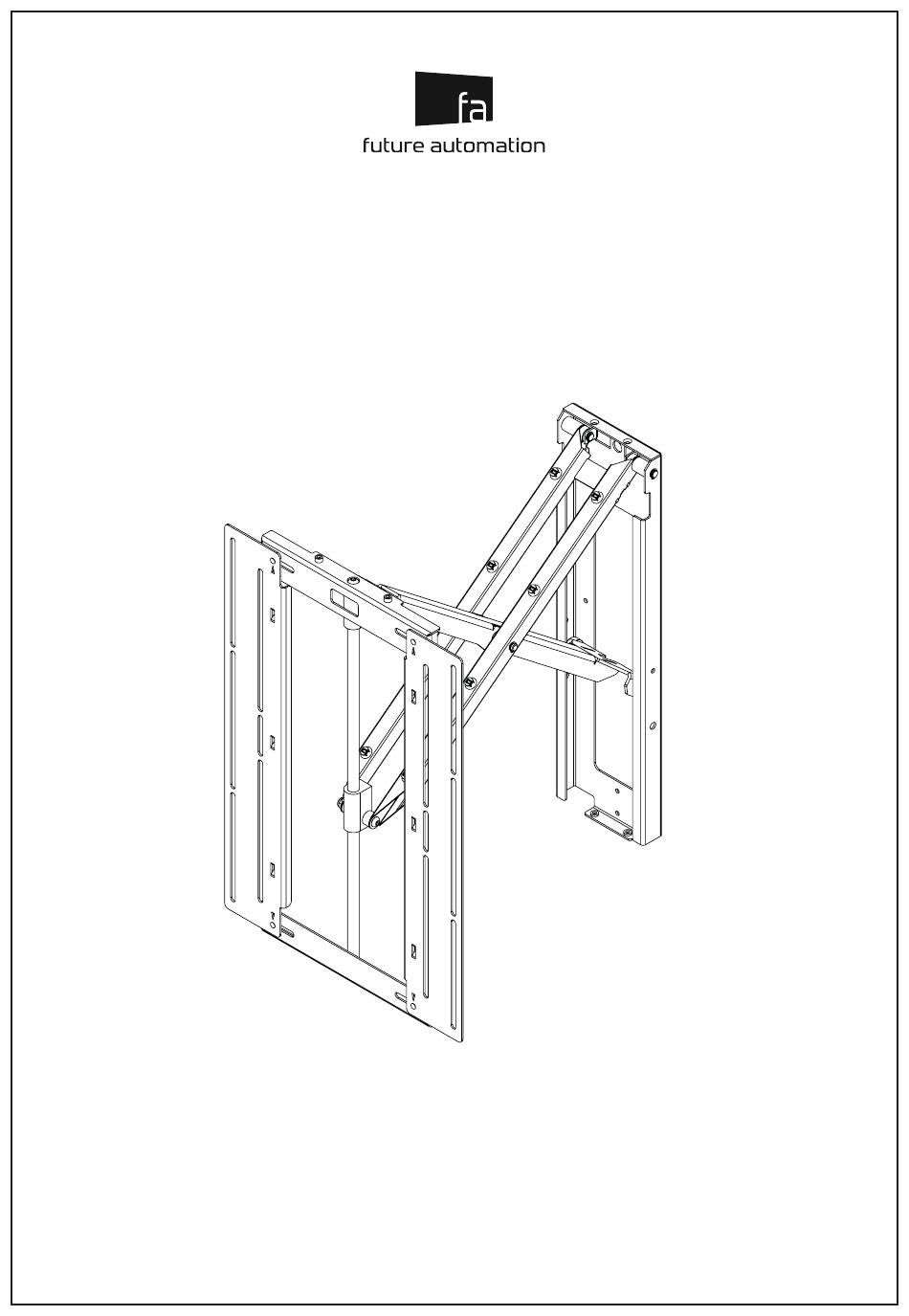

- Page 1 PS RA NG E PS 40 , P S 5 5 , PS 65 MAN U AL A R TI CU L A TI N G W AL L MOU N TS I NST ALLA T I ON I N ST R U C T I O N S I S S UE 003...
-
Page 3: Safety Dis Claimer
Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before cleaning. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 4: Warranty Information
Under the warranty, Future Automation aims to either solve the issue remotely (via telephone or email support) or if the mechanism requires a part, arrange a visit to your premises by a Future Automation approved engineer or send replacement items where appropriate. -
Page 5: G Uid E C On Ten T S
G UID E C ON TEN T S S AF ET Y D I S C L A I M ER P ROD UC T W A R R A NT Y & R I S K AS S E SS ME N T G U I DE C ON TE NT S P ACKA G E C O NT E NT S V E SA M O U N T A D JU S T M EN TS... -
Page 6: Package Contents
PA CKAGE CONTENT S 1 - PS RANGE BRACKET 1.1 - WALL PLATE 1.2 - SCREEN MOUNT 1.3 - SCREEN MOUNT UPRIGHTS 1.4 - CABLE TIE ANCHORS 1.5 - STUD RAIL KIT (SRK) ITEMS NOT SHOWN ON PAGE PS RANGE ACCESSORY PACK: - SCREEN FIXINGS PACK (MULTI-PACK OF NUTS, BOLTS, SPACERS AND WASHERS) - PACK OF CABLE TIES... - Page 7 VES A M OUNT ADJUS TMENT S The PS42 and PS50 brackets are capable of mounting all screens with VESA100 to VESA 400 bolt patterns. The bracket will ship with the mount head in VESA 100 / 200 configuration (Lower Left). To achieve VESA 300/ 400 patterns;...
- Page 8 C ALC ULATI NG M OU NTI NG HEIGH T Dimension X Offer the PS Bracket up to the back of the screen, lining up the screen's VESA holes with the corresponding slots on the PS Bracket Screen Mount. Measure from the top of the screen, down to the top mounting hole on the Wall Plate (Dimension X as indicated above) to determine positioning of the top wall fixing holes.
- Page 9 DETA CH ING TH E SCRE EN MOUN T The screen mount will need to be detached from the PS Bracket before wall mounting. This is achieved by removing the 2 x M6 bolts from the underside of frame as shown (Right). Once the bolts have been removed, pull the bottom edge of the Mount Frame away from the bracket before lifting it up and away from...
- Page 10 S UR FA C E M OU NTI NG The top fixing hole for the PS Bracket wall Fix through the top Ø8.5mm [0.33”] fixing plate should be located the distance of hole in Wall Plate to secure it to the wall. Dimension X (measured on page 6) down Once checking the bracket is level on from the top of the screen position.
- Page 11 S T U D R AI L M OU NTI NG The fixing holes for the upper Stud Rail are located at Dimension X down from the top of the screen position Fix the bracket to the Rail by screwing 2 x M6 (In-line with top fixing hole on Wall Plate).
- Page 12 C AB LE M A NAGEM ENT Power and signal cable wall sockets should be kept outside of the footprint of the bracket to maximise space available for cable routing - see Tech/ CAD files for bracket dimensions. All cables should enter the bracket at the top of the Wall Plate, run down each of the outer Scissor Arms and attach to the rear of the Screen Frame as shown below.
- Page 13 FI TTIN G THE SC REEN Lay the screen face down on a padded surface and place the Screen Mount, removed in Stage 2, onto the screens four mount holes. Secure the Screen Mount to the back of the screen, using the bolts and washers provided in the Fixings Pack as shown below.
- Page 14 FI TTIN G THE SCRE EN CON T. Lift the Screen and Mount Frame up and onto the central bar of the PS Bracket, hooking it on the opposite way to its removal on page 8. Make sure the 2 locating nubbins at the top of the screen mount are securely fixed onto the plate at the top of the bar.
- Page 15 F RIC TI ON ADJUS TMENT Once fitted, if you find that the PS bracket's pull function is too stiff or too loose, the friction can be adjusted using the M8 nut and bolt arrangement on the bottom sliding collar as shown below. Loosen bolt to decrease friction, or tighten to increase friction.
- Page 16 EUROPEAN OFFICE NORTH AMERICAN OFFICE Address: Address: Unit 6-8 Enterprise Park Brunel Road 127 Venture Drive Bedford Dover Bedfordshire MK41 9TG 03820 Phone: +44 (0) 1438 833577 Phone: +1 (603) 742 9181 Email: info@futureautomation.co.uk Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday &...
