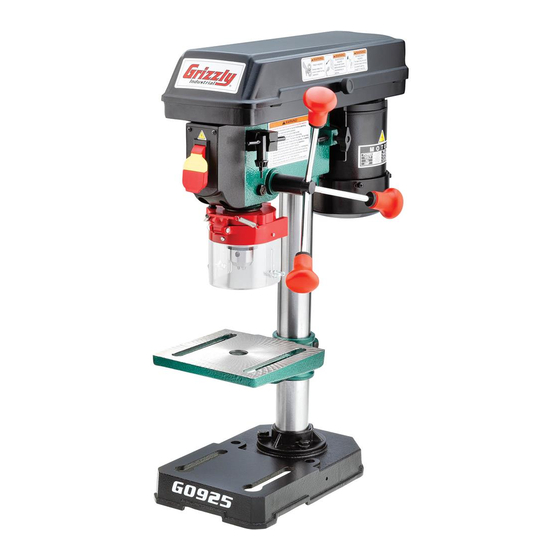

Grizzly G0925 Owner's Manual
  1. Manuals
  2. Brands
  3. Grizzly Manuals
  4. Power Tool
  5. G0925
  6. Owner's manual

Grizzly G0925 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
The following changes were recently made since the owner's manual was printed:
•
Factory replaced depth stop bracket with a chuck guard.
•
Inventory list has been revised.
•
Assembly section has been revised.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.
Revised Parts Breakdown & List
21
81-12
81-10
81
81-2
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
READ THIS FIRST
81-5
81-1
81-14
81-6
81-4
81-3
81-13
81-7 81-8 81-9
81-11
COPYRIGHT © MAY, 2020 BY GRIZZLY INDUSTRIAL, INC.
#CS21123 PRINTED IN CHINA
Model G0925
***IMPORTANT UPDATE***
For Machines Mfd. Since 02/20
and Owner's Manual Printed 02/20
REF
PART #
DESCRIPTION
21
P0925021
FLAT WASHER 6MM
81
P0925081
CHUCK GUARD ASSEMBLY
81-1
P0925081-1
CHUCK GUARD SEAT
81-2
P0925081-2
LOWER GUARD
81-3
P0925081-3
TAP SCREW M3.5 X 5
81-4
P0925081-4
PHLP HD SCR M4-.7 X 30
81-5
P0925081-5
HEX NUT M4-.7
81-6
P0925081-6
LOCK NUT M4-.7
81-7
P0925081-7
PHLP HD SCR M4-.7 X 20
81-8
P0925081-8
EXTENSION SPRING 1 X 6 X 20
81-9
P0925081-9
HINGE BRACKET
81-10 P0925081-10
UPPER GUARD
81-11 P0925081-11
WING NUT M5-.8
81-12 P0925081-12
HEX BOLT M5-.8 X 10
81-13 P0925081-13
PHLP HD SCR M3-.5 X 10
81-14 P0925081-14
HEX NUT M3-.5
Revised Needed for Setup
Description
Phillips Head Screwdriver #1 ............................ 1
Wrench or Sockets 4, 5.5, 10mm ................1 Ea.
Qty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G0925 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grizzly G0925

Summary of Contents for Grizzly G0925

  • Page 1 ***IMPORTANT UPDATE*** For Machines Mfd. Since 02/20 and Owner's Manual Printed 02/20 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com The following changes were recently made since the owner's manual was printed: •...
  • Page 2 (see Figure 2) from chuck guard seat. Tap Screws Figure 4. Attaching chuck guard to chuck guard seat. Hex Nut Phillips Head Screw Figure 2. Location of chuck guard seat screws. Model G0925 (Mfd. Since 2/20)
  • Page 3 Figure 8. Attaching pointer to depth rod. 12. Open chuck guard. Figure 6. Inserting depth rod through mounting hole. 13. Use acetone or lacquer thinner to clean spindle and chuck mating surfaces. 14. Retract chuck jaws completely. Model G0925 (Mfd. Since 2/20)
  • Page 4 Note: Hitting chuck directly with a steel ham- mer may damage chuck, making it unsafe to use. Downfeed Handle Figure . Downfeed handles installed in hub. Figure . Using block of wood and hammer to tap chuck onto spindle taper. Model G0925 (Mfd. Since 2/20)
  • Page 5 (For models manufactured since 02/20) COPYRIGHT © FEBRUARY, 2020 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #CS20962 PRINTED IN CHINA V1.02.20...
  • Page 6 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 7: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info ..........................2 Manual Accuracy ........................2 Identification ..........................3 Controls & Components ......................4 Machine Data Sheet ........................5 SECTION 1: SAFETY ........................7 Safety Instructions for Machinery ....................7 Additional Safety for Drill Presses ....................9 SECTION 2: POWER SUPPLY ......................

  • Page 8: Introduction

    ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta- tion is available for your machine. Manufacture Date Serial Number Model G0925 (Mfd. Since 02/20)

  • Page 9: Identification

    For Your Own Safety Read Instruction Manual Before Operating Drill Press a) Wear eye protection. b) Do not wear gloves, necktie, or loose clothing. c) Clamp workpiece or brace against column to prevent rotation. d) Use recommended speed for drill accessory and workpiece material. Model G0925 (Mfd. Since 02/20)

  • Page 10: Controls & Components

    I. Belt Tension Lock: Secures motor in position quill into headstock. to set belt tension. J. ON/OFF Switch w/Disabling Key: Turns motor ON when flipped up; turns motor OFF when pressed down. Removal of yellow key disables switch so motor cannot start. Model G0925 (Mfd. Since 02/20)

  • Page 11: Machine Data Sheet

    MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0925 8" BENCHTOP DRILL PRESS Product Dimensions: Weight................................34 lbs. Width (side-to-side) x Depth (front-to-back) x Height..............9 x 17-1/2 x 23-1/2 in.
  • Page 12 The information contained herein is deemed accurate as of 2/11/2020 and represents our most recent product specifications. Model G0925 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model G0925 (Mfd. Since 02/20)

  • Page 13: Section 1: Safety

    Never operate under the influence of drugs or injury or blindness from flying particles. Everyday alcohol, when tired, or when distracted. eyeglasses are NOT approved safety glasses. Model G0925 (Mfd. Since 02/20)
  • Page 14 Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model G0925 (Mfd. Since 02/20)

  • Page 15: Additional Safety For Drill Presses

    If normal safety pre- respect. Failure to do so could result in cautions are overlooked or ignored, seri- serious personal injury, damage to equip- ous personal injury may occur. ment, or poor work results. Model G0925 (Mfd. Since 02/20)

  • Page 16: Section 2: Power Supply

    -10- Model G0925 (Mfd. Since 02/20)
  • Page 17 Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -11- Model G0925 (Mfd. Since 02/20)

  • Page 18: Section 3: Setup

    IMPORTANT: Save all packaging materials until you are completely satisfied with the machine and have resolved any issues between Grizzly or the shipping agent. You MUST have the original pack- aging to file a freight claim. It is also extremely helpful if you need to return your machine later.

  • Page 19: Inventory

    NOTICE Figure 5. G0925 loose parts inventory. Avoid harsh solvents like acetone or brake parts cleaner that may damage painted sur- faces. Always test on a small, inconspicu- ous location first.

  • Page 20: Site Considerations

    Lock entrances to the shop or disable start switch or power connection to prevent Lag Screw unsupervised use. Flat Washer Machine Base Workbench Figure 8. "Direct Mount" setup. -14- Model G0925 (Mfd. Since 02/20)

  • Page 21: Assembly

    (see Figure 10), and secure with table lock handle. Figure 12. Location of set screws that secure Column headstock to column. Table Lock Table Assembly Handle Figure 10. Table secured on column. -15- Model G0925 (Mfd. Since 02/20)
  • Page 22 Attempt to separate spindle and chuck by hand—if they separate, repeat Steps 6–8. Figure 13. Downfeed handles installed in hub. Use acetone or lacquer thinner to clean spindle and chuck mating surfaces. Retract chuck jaws completely into chuck. -16- Model G0925 (Mfd. Since 02/20)

  • Page 23: Test Run

    — If the machine does start, immediately stop the machine. The switch disabling feature is not working correctly. This safety fea- ture must work properly before proceeding with regular operations. Call Tech Support for help. Congratulations! Test Run is complete. -17- Model G0925 (Mfd. Since 02/20)

  • Page 24: Section 4: Operations

    Page ects. Regardless of the content in this sec- 19 and adjusts drive belt to required pulley tion, Grizzly Industrial will not be held liable sheaves. for accidents caused by lack of training.

  • Page 25: Choosing Spindle Speeds

    Mild Steel Carbide Insert Type One-Piece Type 1800 Tenon/Plug Cutters Soft Wood Hard Wood Plastic Brass Aluminum Mild Steel 3/8" – 1/2" 1200 1000 5/8" – 1" Figure 16. Drill bit speed chart (RPMs). -19- Model G0925 (Mfd. Since 02/20)

  • Page 26: Changing Spindle Speed

    Spindle Speed Note: If V-belt is tight, have an assistant pull motor while you change drill speeds. The Model G0925 has five spindle speeds that operate between 740-3140 RPM. Refer to the speed chart located under the belt cover. Use care when changing V-belts as they could pinch your fingers.

  • Page 27: Installing/Removing Drill Bits

    Installing/Removing Adjusting Depth Stop Drill Bits The Model G0925 has a depth stop that allows you to drill repeat non-through holes to the same Any drill bit you install in the chuck must be depth every time. The scale and indicator show tight enough that it will not come loose during the depth in inches.

  • Page 28: Positioning Table

    2. Adjust table height and position it around col- umn as desired, then tighten table height lock Tighten lock bolt to secure table position. handle. Table Lock Handle Table Figure 24. Table position adjustment controls. -22- Model G0925 (Mfd. Since 02/20)

  • Page 29: Section 5: Accessories

    To reduce this risk, only install accessories recommended for this machine by Grizzly. NOTICE Refer to our website or latest catalog for additional recommended accessories.
  • Page 30 " in ⁄ " increments. No-slip shanks fit ⁄ " chucks. Titanium nitride coated for long life. Figure 32. Model G8581 ⁄ " Keyless Drill Chuck, JT33. Figure 30. Model H8196 3-Pc. Step Drill Set. -24- Model G0925 (Mfd. Since 02/20)
  • Page 31 T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T26419 T20451—“Kirova” Clear Safety Glasses T20452—“Kirova” Anti-Reflective S. Glasses T20456—DAKURA Safety Glasses, Black/Clear Figure 36. Recommended lubrication products. T20502 T20452 T20503 T20451 T20456 Figure 34. Assortment of basic eye protection. -25- Model G0925 (Mfd. Since 02/20)

  • Page 32: Section 6: Maintenance

    To reduce risk of shock or accidental startup, always disconnect machine from power before adjustments, Cleaning the Model G0925 is relatively easy. maintenance, or service. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any...
  • Page 33 Quill & Column Surfaces Quill Rack & Pinion Oil Type ..Grizzly T23962 or ISO 68 Equivalent Grease Type ..Grizzly T26419 or NLGI#2 Equiv Oil Amount ..........Thin Coat Grease Amount ........Thin Coat Lubrication Frequency ...8 Hrs. of Operation Lubrication Frequency ..90 hrs. of Operation...

  • Page 34: Section 7: Service

    10. Chuck or cutter at fault. 10. Replace out-of-round chuck, dull, or bent cutter. 11. Motor bearings at fault. 11. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement. -28- Model G0925 (Mfd. Since 02/20)
  • Page 35 1. Depth stop pointer placed incorrectly. 1. Adjust pointer on depth stop stud. inaccurate. Backside of 1. Scrap board not installed between table 1. Install scrap board between table and workpiece. workpiece splinters. and workpiece. -29- Model G0925 (Mfd. Since 02/20)

  • Page 36: Adjusting Spring Tension

    — If spindle does not retract quickly, repeat ing Step 5, or force of spring will cause cover Steps 4–9, and re-check tension until to spin out of your hands. return speed is adequate. -30- Model G0925 (Mfd. Since 02/20)

  • Page 37: Aligning Pulleys

    They may also get hot after extended use so wait to han- dle if drill has been in use. — If drive belt is cracked, torn, excessively worn, or damaged, replace it. -31- Model G0925 (Mfd. Since 02/20)

  • Page 38: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -32- Model G0925 (Mfd. Since 02/20)

  • Page 39: Wiring Diagram

    Neutral 120V MOTOR 120 VAC Ground Capacitor 22uF 250VAC PADDLE SWITCH Ground DKLD AN17 20A 125V Ground PADDLE SWITCH BOX Figure 44. Switch box. Figure 45. Run capacitor. READ ELECTRICAL SAFETY -33- Model G0925 (Mfd. Since 02/20) ON PAGE 32!

  • Page 40: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Main 67-1 67-2 67-3 67-4...
  • Page 41 P0925042 PHLP HD SCR M5-.8 X 25 P0925079 LOCK WASHER 12MM P0925043 DRILL CHUCK JT33 X 1.5-13MM P0925080 LOCK WASHER 5MM BUY PARTS ONLINE AT GRIZZLY.COM! -35- Model G0925 (Mfd. Since 02/20) Scan QR code to visit our Parts Store.

  • Page 42: Labels & Cosmetics

    Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. BUY PARTS ONLINE AT GRIZZLY.COM! -36- Model G0925 (Mfd.

  • Page 43: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
