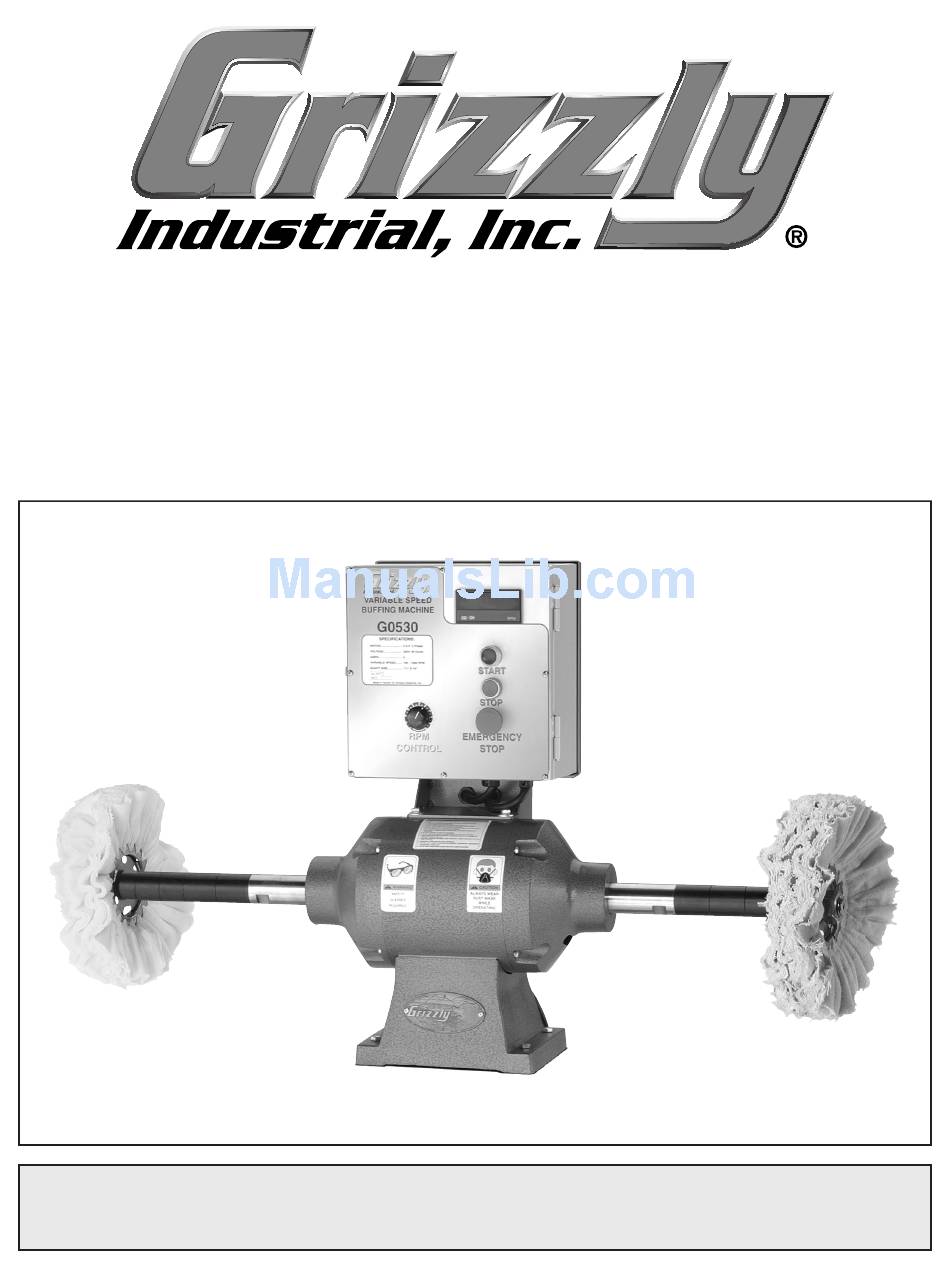

- Page 1 MODEL G0530 INSTRUCTION MANUAL COPYRIGHT © OCTOBER 2003 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #CR5679 REVISED APRIL 2005, PRINTED IN TAIWAN...
- Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, buffing, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
-
Page 3: Table Of Contents
Before Buffing ... 12 Basic Buffing ... 12 SECTION 7: REFERENCE INFO ... 13 Assistance ... 13 Accessories ... 13 G0530 Machine Data Sheet ... 15 Parts Diagram ... 16 Parts List ... 17 Wiring Diagram ... 18 Warranty & Returns ... 19... -
Page 4: Section 1: Safety
All children and visitors should be kept at a safe distance from work area. padlocks, master switches, or by removing starter keys. better and safer at the rate for which it was designed. attachment to do a job for which it was not designed. G0530 Variable Speed Buffer... - Page 5 15. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recom- mended accessories. The use of improper accessories may cause risk of injury. G0530 Variable Speed Buffer 16. REDUCE THE RISK OF UNINTENTIONAL 17. CHECK DAMAGED PARTS. Before further LENGTH 50ft 100ft 18.
-
Page 6: Additional Safety Instructions For Buffers
No list of safety guidelines can be com- plete. Operating this machinery may require additional safety precautions spe- cific to your shop environment. Failure to use reasonable caution while operating this machine could result in serious per- sonal injury. G0530 Variable Speed Buffer... -
Page 7: Section 2: Introduction
We are proud to offer the Model G0530 Variable Speed Buffer. This machine is part of a growing Grizzly family of fine woodworking and metal- working machinery. When used according to... -
Page 8: Section 3: Circuit Requirements
Wiring The Model G0530 is prewired for 220V 3-phase operation. Amperage Draw The Model G0530 has a 5 HP motor that will draw the following amps at 220V 3-phase: Buffer Motor ... 15 Amps Circuit Breaker Requirements Install the machine on a dedicated circuit to reduce the possibility of overloading the circuit and tripping the circuit breaker. -
Page 9: Section 4: Machine Features
Set up and operation instructions will be easier to understand if you become familiar with the location and names of the machine controls shown in Figure 2. Figure 2. Machine features. G0530 Variable Speed Buffer... -
Page 10: Section 5: Set Up
F. Bolt Bag (For mounting to optional stand) ") ...1 — Hex Head Bolts ⁄ "-18 x 2" ...4 — Flat Washers ⁄ " ...8 — Lock Washers ⁄ " ...4 — Hex Nuts ⁄ "-18 ...4 G0530 Variable Speed Buffer... -
Page 11: Clean Up
G0530 Variable Speed Buffer Site Considerations Weight Load The Model G0530 weighs approximately 275 lbs. Most shop floors should be sufficient to carry the weight of the machine. Reinforce the floor if you question its ability to support the weight. -
Page 12: Assembly
(Figure 6). If mounting to a stand, bolt the stand to the floor. Figure 6. Buffer-to-stand installation. Get lifting help before beginning assembly. The Model G0530 is a heavy load at 275 pounds. ⁄ "-18 x 2" ...4 ⁄... -
Page 13: Buffing Wheel Installation
Buffing Wheel Installation Buffing operations on your Model G0530 will vary. Depending on the type of material to be buffed, multiple buffing wheels will be necessary, and for other tasks, single wheels will be used. A variety of spacers have been provided to accommodate many combinations of buffing wheels (see Figure 7 and 8). -
Page 14: Section 6: Operations
-12- Basic Buffing Buffing operations on your Model G0530 will vary depending on the type of material to be buffed, the type of buffing wheel used, and the finished result you need. Basic buffing operations: Stand out of the way of the buffer, and turn the buffer ON. -
Page 15: Section 7: Reference Info
Grizzly Service Department. Trained ser- vice technicians will be glad to help you. If you have any comments regarding this manual, please write to Grizzly at the address below: Grizzly Industrial, Inc. Technical Documentation P.O. Box 2069... - Page 16 -14- WHITE POLISHING COMPOUND FOR POLYESTER FINISHES MODEL H0814 COARSE PREPOLISHING PASTE MODEL H0816 MEDIUM PREPOLISHING PASTE MODEL H0817 FINE PREPOLISHING PASTE MODEL H0818 MEDIUM PREPOLISH LIQUID MODEL H4873 HIGH GLOSS LIQUID POLISHING COMPOUND MODEL H0821 G0530 Variable Speed Buffer...
-
Page 17: G0530 Machine Data Sheet
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 MODEL G0530 VARIABLE SPEED BUFFER Design Type: ... Bench Model Overall Dimensions: Height ... 56 Width ... 45 Depth ... 9 Shipping Weight ... 270 lbs. -
Page 18: Parts Diagram
-16- G0530 Variable Speed Buffer... -
Page 19: Parts List
CONTROL BOX SWITCH SUPPORT 16 PFH02M FLAT HD SCR M6-1 X 12 17 PB86 HEX BOLT 5/16-18 X 3/4" 18 PWR1-1/2 WRENCH 1-1/2" G0530 Variable Speed Buffer PART # DESCRIPTION 19 PWR2 WRENCH 2" 20 PN37 HEX NUT 1-1/4" -7 (LH THREAD) -
Page 20: Wiring Diagram
MODEL G0530 VARIABLE SPEED BUFFER WIRING DIAGRAM POWER LAMP Contactor Frequency Converter (Factory Set) Door Safety Switch -18- G0530 Variable Speed Buffer... -
Page 21: Warranty & Returns
Warranty & Returns Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 22 Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Industrial to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________...
