Summary of Contents for SIIG CV-009S

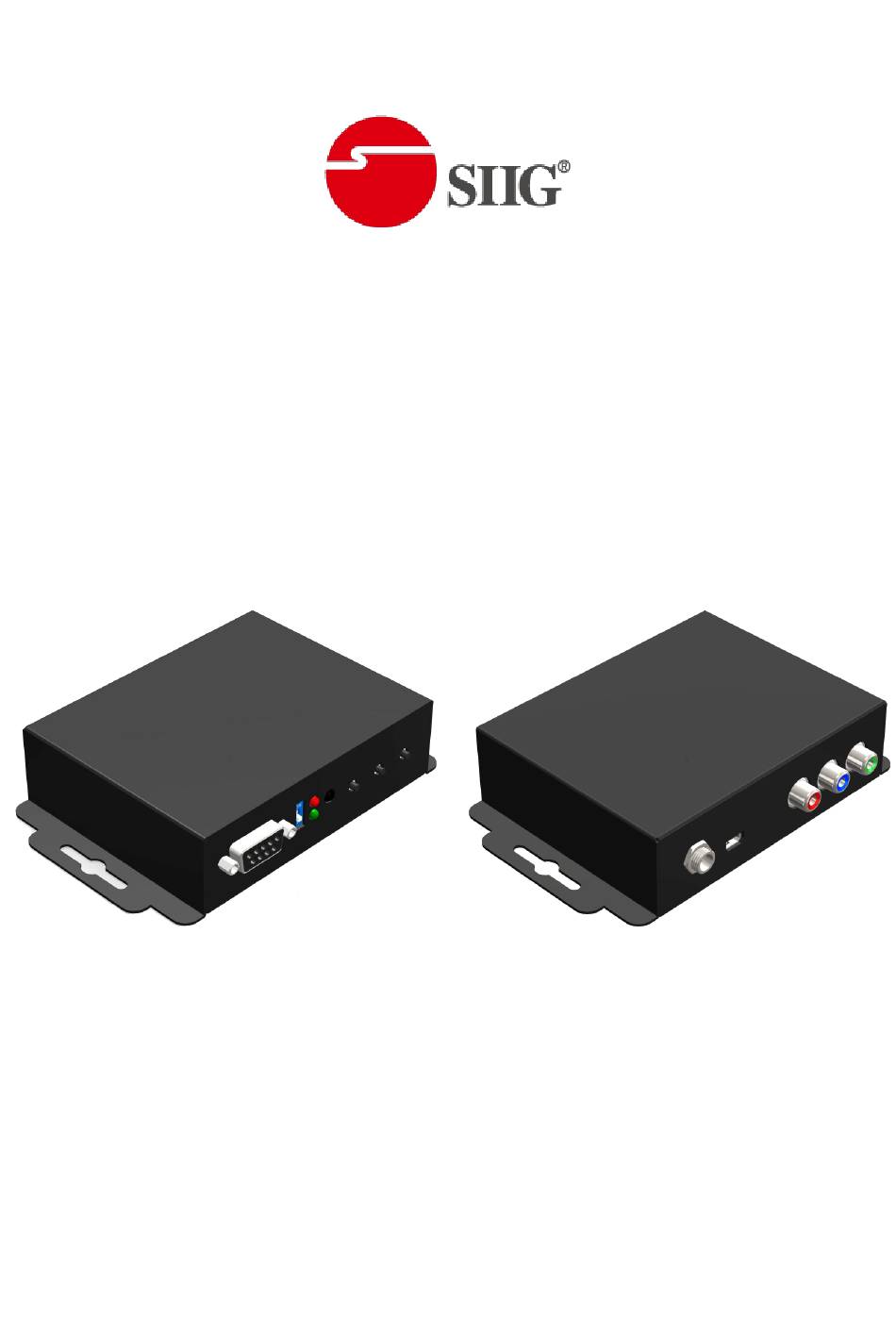

- Page 1 Component/CVBS to VGA Scaler Converter P/N: CV-009S...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-009S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The CV-009S Component/CVBS to VGA Scaler Converter provides a cost effective way to convert Component or CVBS signal to analog PC video (VGA). With this module, VGA based receivers such as LCD monitors or plasma TV can be readily connected to Component/CVBS sources. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-009S Technical Role of usage Component to VGA Converter Input Frequency 74.25MHz bandwidth Output Frequency 165MHz bandwidth Audio support [1] Human body model — ±19kV [air-gap discharge] & ±12kV[contact ESD protection discharge] [2] Core chipset — ±2kV PCB stack-up 4-layer board [impedance control —... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel VGA OUT: Connect to a VGA display with a VGA male-male cable here. DIP SWITCH: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [green]: signal indicator LED [red]: power indicator LED. IR SENSOR: IR sensor for receiving the IR commands from IR remote PUSH BUTTON [LEFT]: Down Button... -
Page 6: Connection Diagram
COMPONENT – Pr INPUT CONNECTION DIAGRAM... -
Page 7: Osd Menu
OSD MENU Out Res. Output Mode RGB, YCbCr422 Disable, White, Cross, 1.Output Setup Hatch, Color, Gray, Default Pattern Windows, H-Ramp, W-HRamp, W-VRamp, Diagonal Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level 2.Image B/W Extension Off, On... -
Page 8: Operation Approach
OPERATION APPROACH Method A: Push-in Button Menu/Enter Down Method B: IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit OSD ENTER Enter key Up key LEFT Left key RIGHT Right key DOWN Down key MENU... - Page 9 Method C: IR Remote Control through Mini-USB port COM Port Selection COM Port Detection Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button Output Quick Selection Button 1.
- Page 10 3. Output Setup Button 4. Image Button 5. Adjustment Button...
- Page 11 6. System Button 1) In-Sync Info: To view the current input resolution 2) Factory Reset Button 3) Firmware Update Button The steps of firmware update: a) Unplug Mini-USB connector from device b) Set the Dip Switch to ON [] c) Connect the device to PC via USB to mini-USB cable d) Click the FW Update button on software e) Click “Load File”...
-
Page 12: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-009S features and specifications is subject to change without further notice.
