Humminbird HELIX Series Installation Diagrams page 9

BOW UNIT
Networking
Graph
4
5
3
MK
Heading
Sensor
Cranking Trolling Motor
Battery Batteries

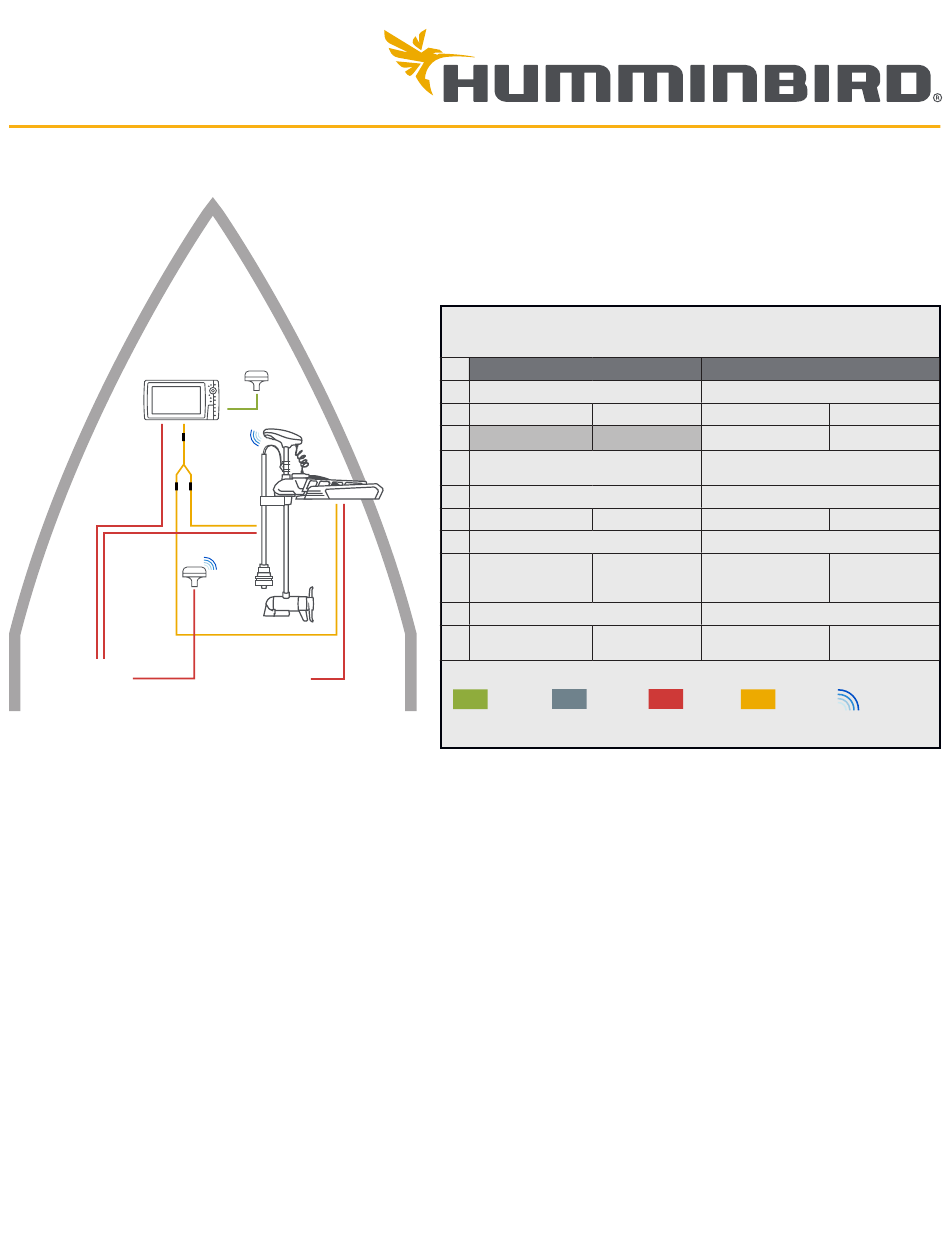

INSTALLATION DIAGRAMS
Adding a MEGA 360 Imaging – Ultrex model
to a boat with (1) Bow-Mounted Humminbird unit
and Minn Kota motor with Built-In MEGA Imaging
1
1
2
2
3
4
5
NMEA 0183
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
Compatible Accessories
HELIX G3N Series
GPS + Heading Sensor
408400-1 AS GPS HS
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
MEGA 360 and MDI/2D Y-Cable
720108-1 14 M360 2DDI Y
MEGA 360 Adapter Cable
AD HELIX M360
(Included with
MEGA 360)
MEGA 360 Imaging
MEGA 360
411250-1
Imaging – Ultrex
Ethernet 12V DC Power
SOLIX Series
GPS + Heading Sensor
408400-1 AS GPS HS
720080-1 AS GPS NMEA
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
MEGA 360 and MDI/2D Y-Cable
720108-1 14 M360 2DDI Y
MEGA 360 Adapter Cable
NA
MEGA 360 Imaging
MEGA 360
411250-1
Imaging – Ultrex
Transducer Cable Bluetooth® Signal
