Compatible Accessories - Humminbird HELIX Series Installation Diagrams

4
BOW UNIT
Networking
Graph
8
1
MK
Heading
Sensor
Trolling Motor
Batteries
2
5
CONSOLE UNIT
2
Networking
Graph
1
7
Cranking
Battery Transducer supplied with
MEGA Side Imaging unit at

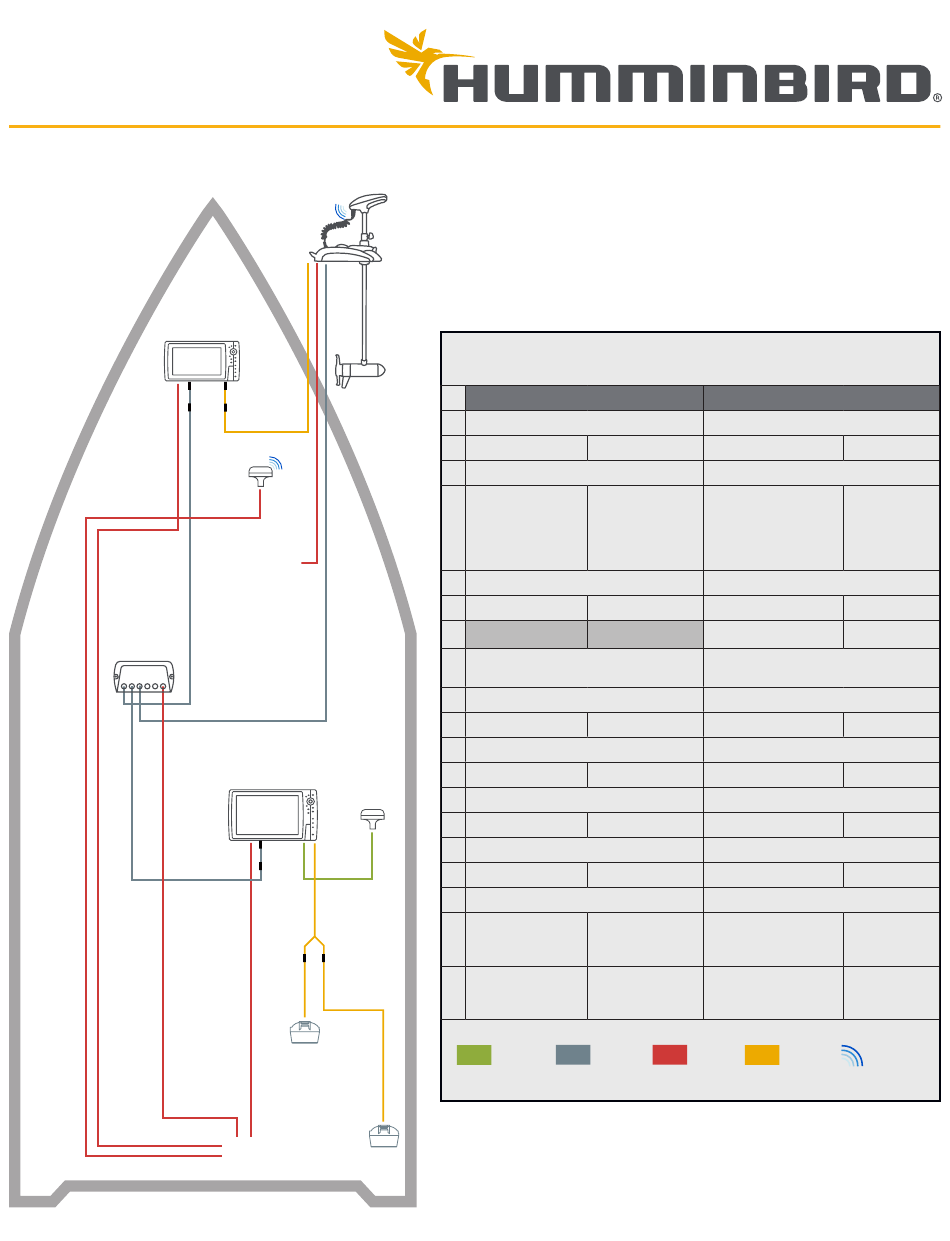

INSTALLATION DIAGRAMS
Minn Kota Trolling Motor with i-Pilot Link
and Built-in MEGA Imaging, (1) bow-mounted
Humminbird unit and (1) console mounted
Humminbird unit
1
Ethernet Adapter Cable (need 2)
720074-1
2
Ethernet Cable (need 2)
720073-6
720073-2
720073-5
720073-3
720073-4
3 GPS + Heading Sensor
408400-1
Minn Kota Trolling Motor with i-Pilot
4
Link and Built-In MEGA Imaging
5 5-Port Ethernet Switch
408450-1
6 Transducer Splitter Cable
720101-1
7 High Speed Transducer (fiberglass hull)
3
710276-1
High Speed Transducer (aluminum hull)
710274-1
8
Adapter Cable for Built-In MEGA Imaging
6
1852088
1852086
NMEA 0183
* One (1) AS ECX 30E Ethernet Extension cable included with i-Pilot Link trolling motor
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
console

Compatible Accessories

HELIX Series
Ethernet Adapter Cable
AS EC QDE NA
Ethernet Cable (need 2)
AS EC 5E (5') 720073-6
AS EC 10E (10') 720073-2
AS EC 15E (15') 720073-5
AS EC 20E (20') 720073-3
AS EC 30E (30') 720073-4
GPS + Heading Sensor
AS GPS HS 408400-1
720080-1
Minn Kota Trolling Motor with i-Pilot
Link and Built-In MEGA Imaging
5-Port Ethernet Switch
AS ETH 5PXG 408450-1
Transducer Splitter Cable
9 M SIDB Y 720103-1
High Speed Transducer (fiberglass hull)
XP 9 HW T 710287-1
High Speed Transducer (aluminum hull)
XNT 9 HW T 710285-1
Adapter Cable for Built-In MEGA Imaging
MKR-MI-1
(HELIX 8-12 G2N NA
and newer)
MKR-MDI-2 HB
HELIX 7 G2N NA
/ G3N
Ethernet 12V DC Power
SOLIX Series
AS EC 5E (5')
AS EC 10E (10')
AS EC 15E (15')
AS EC 20E (20')
AS EC 30E (30')
AS GPS HS
AS GPS NMEA
AS ETH 5PXG
14 M SIDB Y
XP 14 HW T
XNT 14 HW T
Transducer Cable Bluetooth® Signal
