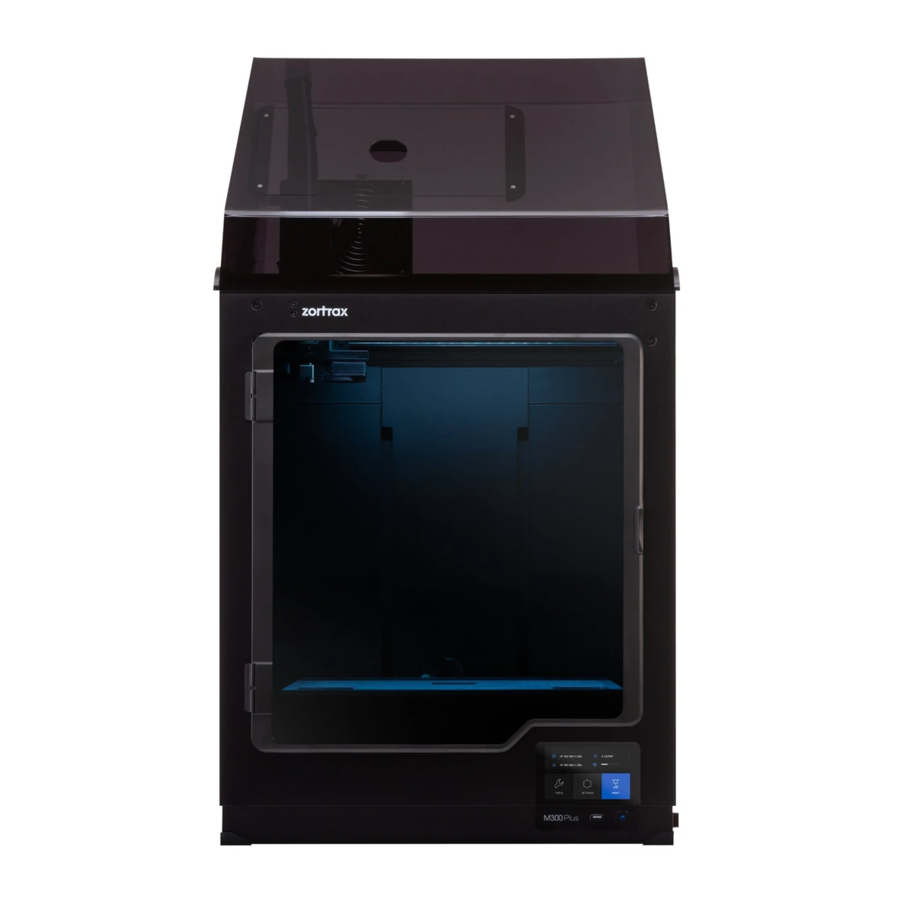

zortrax M300 Plus Maintenance Manual
Hide thumbs
Also See for M300 Plus:
- Unpacking & first use (22 pages) ,
- Parts installation (11 pages) ,
- Manual (26 pages)
Subscribe to Our Youtube Channel
Related Manuals for zortrax M300 Plus
Summary of Contents for zortrax M300 Plus
- Page 1 Maintenance Guide SOURCE: https://support.zortrax.com/m300-plus-maintenance-guide/...
-
Page 2: Table Of Contents
Table Of Content Main Hotend Platform X/Y Axes; Extruder Guide Rails Extruder Z-Axis Suggested Part Replacement Time... -
Page 3: Main
Main ACTIVITY FREQUENC SOLUTIONS TO THE PROBLEMS NECESSARY ACCESSORIES Cleaning the Before each To remove material remains from the – a vacuum machine, its printing interior of the device, use a vacuum cleaner, interior and process cleaner or compressed air –... -
Page 4: Hotend
Hotend ACTIVITY FREQUENCY Checking if the hotend and the nozzle are Before each printing process not clogged Cleaning the nozzle After finishing one spool of material Checking if the screws that secure the Every 300 working hours heater and thermocouple are tightened... -
Page 5: Platform
Platform ACTIVITY FREQUENC SOLUTIONS TO THE PROBLEMS NECESSARY ACCESSORIES Cleaning the Before each To remove material remains from the – a spatula perforated plate printing surface of the perforated plate, use a process spatula Checking the Before each – – perforated plate printing for deformation... -
Page 6: X/Y Axes; Extruder Guide Rails
X/Y Axes; Extruder Guide Rails ACTIVITY FREQUENC SOLUTIONS TO THE PROBLEMS NECESSARY ACCESSORIES Checking if the Before each It is possible to feel slight resistance – silicone oil axes and the printing while checking if the extruder moves extruder guide process freely on the guide rails. -
Page 7: Extruder
Extruder ACTIVITY FREQUENCY Checking if the extruder top cover and the Before each start-up of the printer material guide are properly installed Checking if the material guide is properly Before each start-up of the printer secured to the extruder cable with the material guide clamps If you use the HEPA Cover, check if it does Before each start-up of the printer... -
Page 8: Z-Axis
Z-Axis ACTIVITY FREQUENCY Lubricating the Z-axis screw and rails Every 500 working hours... -
Page 9: Suggested Part Replacement Time
Suggested Part Replacement Time The table shows approximate replacement time of components that are exposed to natural wear and tear. In order to maintain the printer in good condition and to provide the highest priting quality, it’s advisable to replace particular components after an appropriate period of time indicated in the table.
