IMPORTANT:

Please read and follow all safety statements,
directions, before attempting to assemble
WARNING:
THIS UNIT IS HEAVY!
Do not assemble this item alone for safety. Two persons are necessary.
Some parts may contain sharp edges – especially as noted in manual. Wear protective gloves if
necessary.
Do not play with the construction of the arbor. Children and pets should be supervised when they
are in area of the arbor. Do not allow the gate or the side panel to collide hard to avoid danger.
Read all instructions before assembly and using this product.
Select ideal location. Set out all parts on a clear and level surface prior to assembly. Ideally, the gazebo
frame should be set up in its desired location to avoid moving it after assembly.
Use caution. During all the process of assembling, especially when lifting heavy or large parts, pay
attention to safety.
Tools and Assistance. Ladder and screwdriver are self-provided. Whenever possible, assistance is preferred.
Check for parts available. Before assembling your gazebo, be sure that you have all parts described in
the Parts List.
Check for damaged parts. Before assembling your gazebo, check for damaged parts, any part that
appear damaged should be carefully checked to determine that it will be operated properly and perform its
intended function. Any part that is damaged should be properly repaired or replaced by a qualified
technician.
Refer to assembly diagram. During assembly, it will be helpful to referring to the assembly diagram.
Keep children away. Children must never be allowed in the work area. Do not let them handle parts and
Assembly Instruction
ITEM#L-GZ076PST-1
Summer Foliage Gazebo
warnings, assembly instructions, use& care
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ076PST-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GZ076PST-1

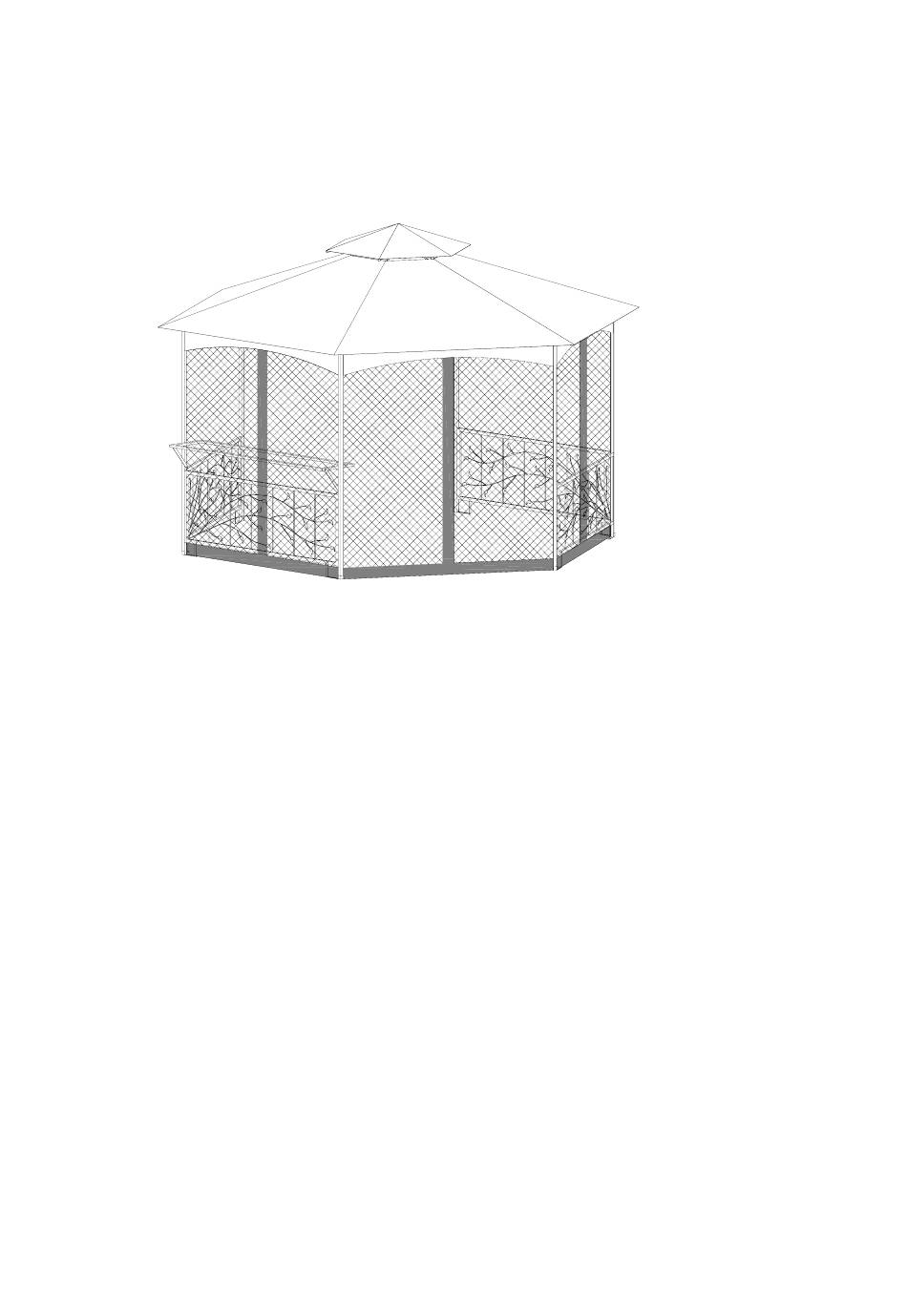

  • Page 1 Assembly Instruction ITEM#L-GZ076PST-1 Summer Foliage Gazebo IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use& care directions, before attempting to assemble WARNING: • THIS UNIT IS HEAVY! • Do not assemble this item alone for safety. Two persons are necessary.
  • Page 2 tools. No people will be permitted to enter into work area except who is working. • Caution for fabric: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC .This tent is made of flame-resistant fabric. It is not fireproof. The fabric will burn if left in continuous contact with a flame source.
  • Page 3 Parts List Pole1 Pole2 Pole 3 Pole 4 Pole 5 Fence1 Fence2 Screen Conner connector Top Pole Center fitting with hook Glass side bar top Side support (preassembled on the side bar top Peg Fitting 1 Peg Fitting 2 Peg Fitting 3 Canopy Top canopy Bug netting...
  • Page 4 Step1. Insert Fence B1 into pole A2 ,then fix B1 by pulling it down as Fig.1. Assemble Fence B1,B2 and Pole A1,A3,A4,A5 in the same way according to picture above Fig.1 Step 2. Use screw (AA), flat washer (BB) to connect Peg Fitting (K) to Fence ( B1) and Pole (A4 or A2 ), as Fig.2.
  • Page 5 Fig.5-1 Fig.5-2 Step 5. Use screw(DD),flat washer(EE) and Nut(CC) to joint top pole(E) and center connector(F) ,as Fig 5-1;And then lift the assembled top frame to insert the other end of the top pole(E) into the corner connector(D),as Fig.5-2。 *After steps above, use screwdriver and wrench to tighten all the hardware, but not too tight.
  • Page 6 Limited Warranty Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of six (6) months from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
  • Page 7 CUSTOMER SERVICE: Please do not return this product to the store. For technical assistance on assembly or replacement parts call Sunjoy Industries at 1-866-532-9557 from 8:30 AM to 5:30 PM EST or Email WM@sunjoygroup.com assistance.
