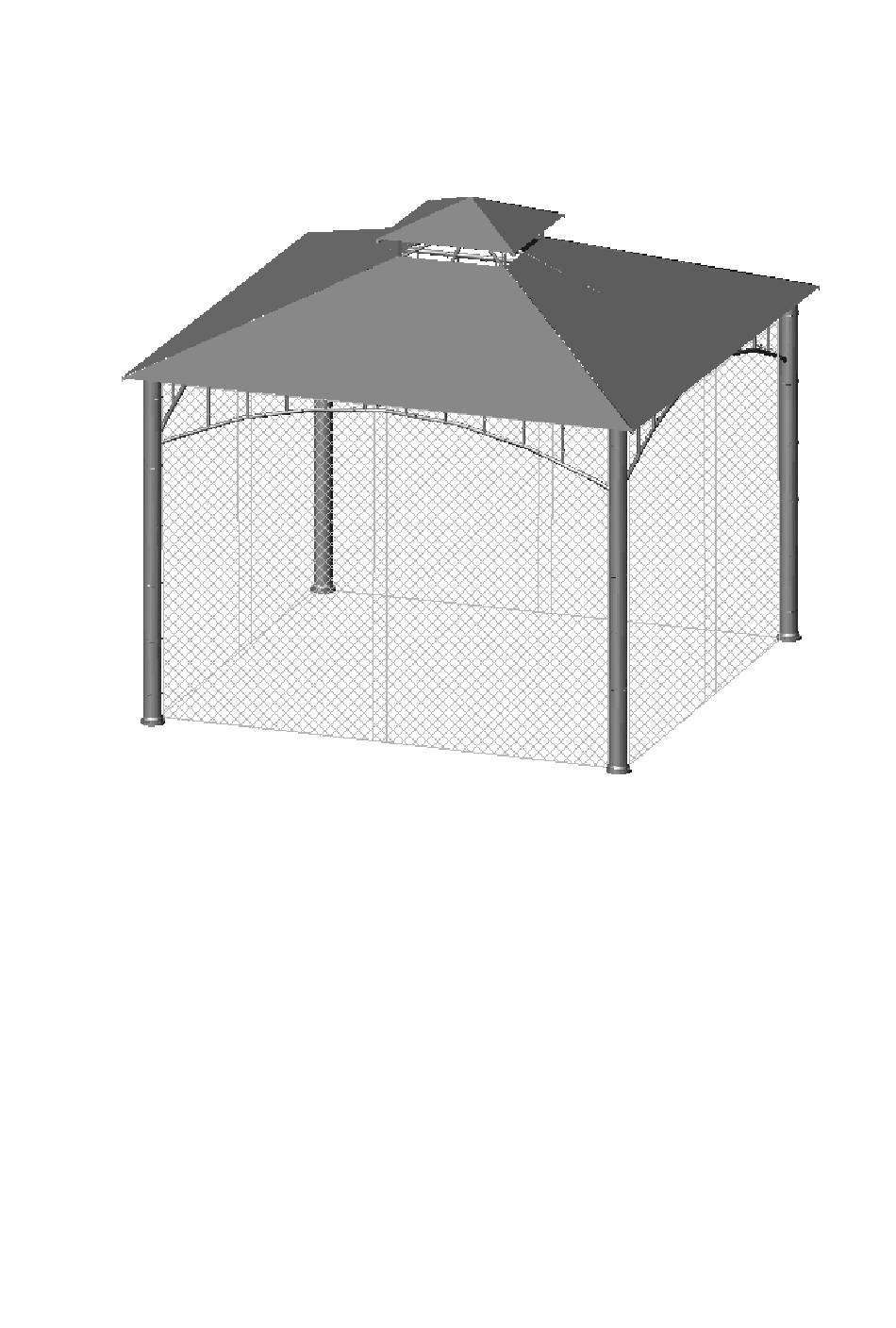

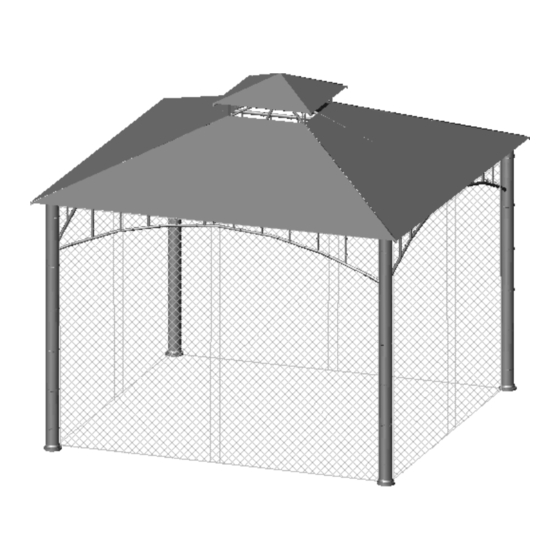

Summer Veranda Gazebo
Style # L-GZ093PST
DPCI # 009/05/0118
Product Size identification: 10'L x 10'W (Between two posts) x10'H
Recommended persons for safe assembly: 3.
CONGRATULATIONS – You've purchased a fine item from Target.
Our clear, easy to follow; step by step instructions will guide you through the
project from start to finish. Feel confident that this will be a fun and rewarding
project. The final product will be a quality piece that will go together smoothly
and give years of enjoyment.
All you will need is a screwdriver, a hammer, and a ladder at least 8.2 ft.
high (or 2.5m).
If you have any questions, just call 866-578-6569. Please refer to the DPCI
code above when calling.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-GZ093PST
Summary of Contents for Sunjoy L-GZ093PST
- Page 1 Summer Veranda Gazebo Style # L-GZ093PST DPCI # 009/05/0118 Product Size identification: 10’L x 10’W (Between two posts) x10’H Recommended persons for safe assembly: 3. CONGRATULATIONS – You’ve purchased a fine item from Target. Our clear, easy to follow; step by step instructions will guide you through the project from start to finish.
- Page 2 WARNING: This unit is heavy and big. Do not assemble it alone. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. Please read all the instructions first. ...
- Page 3 Parts List 4 pieces Left Frame 4 pieces Right Frame 4 pieces Column Center fitting for the 1 piece second roof 1 piece Hook Short bar for the second 4 pieces roof Medium 4 pieces second roof Long bar for the second 4 pieces roof Canopy for the second...
- Page 4 Hardware ease identification, Identification hardware organized into separate hardware packs as below. Actual size is not shown below. Hardware Pack 1 (AA) M6×20 screw 28 pieces TBZ01406020HQ (BB) M6 flat washer 28 pieces TBZ10806HQ Hardware Pack 2 (CC) M6×40 screw 8 pieces TBZ00306040HQ (BB) M6 flat washer...
- Page 5 STEP #1 Frames and arches (x28) (AA) (x28) (BB) Fig.1，Fig.2: Insert each 1A into each 1B to form four arches for four sides all around, and secure them with screws AA, and washers BB. Fig.3: Attach the arches formed above onto four columns, using screws AA and washers BB, to get a complete frame.
- Page 6 STEP #2 Top bars (x 8) (CC) (x 8) (BB) (x 8) (DD) (x 1) (WW) (X12) (GG) Warning: Please peg the frame on the ground before going on to the next step. The next step will require a ladder. Fig.4: Insert 2D into 2C;...
- Page 7 STEP #3 Top roof, canopy and mosquito net (x 4) (CC) (x 4) (BB) (x 4) (DD) Fig.8: Put 3A onto the top roof. Do not complete it here in order to assemble the second roof. Fig.9：Insert 3C into 3B, and then use screws CC, washers BB and nuts DD to secure 3C and the bars on the second roof.
- Page 8 IMPORTANT: Please do not return this product to the store. For technical assistance on assembly or replacement parts, please do not return this product to the store, call Sunjoy Industries at 866-578-6569 from 8:30 AM to 5:30 EST Monday to Friday or fax the...
