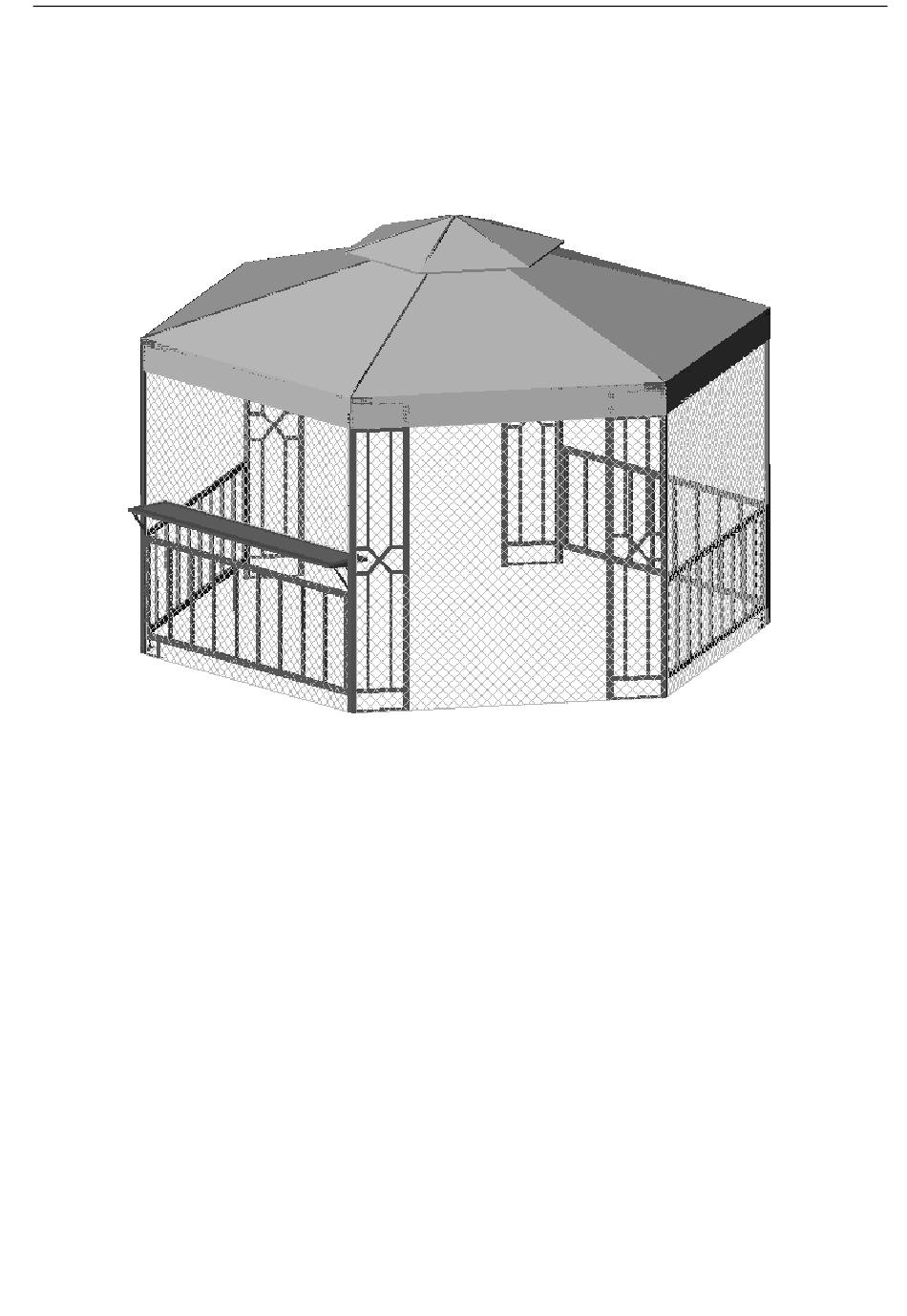

Hampshire gazebo
Style # L-GZ029PST
Recommended persons for safe assembly: 3.
CONGRATULATIONS – You've purchased a fine item from The Home Depot.
Our clear, easy to follow; step by step instructions will guide you through the project
from start to finish. Feel confident that this will be a fun and rewarding project. The
final product will be a quality piece that will go together smoothly and give years of
enjoyment.
All you will need is a screwdriver, a hammer, and a ladder not lower than 2m (about
6.6 feet).
If you have any questions just call 866-578-6569. Please refer to the DPCI code
about when calling.
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy Hampshire L-GZ029PST
Summary of Contents for Sunjoy Hampshire L-GZ029PST
- Page 1 Hampshire gazebo Style # L-GZ029PST Recommended persons for safe assembly: 3. CONGRATULATIONS – You’ve purchased a fine item from The Home Depot. Our clear, easy to follow; step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece that will go together smoothly and give years of enjoyment.
- Page 2 Step Identification For ease of identification all parts are labeled to correspond to the Step number in which the part is used. Step2 Step3 Step1 IMPORTANT: 1. When installing and assembling your gazebo, it’s recommended that 2 or more persons are involved. 2.
- Page 3 Parts List Part Qty. Picture Screen Screen 1 Screen 2 Rail fence Rail fence 1 Standing post Standing post 1 Beam Beam 1 Connector for top bars Frame fixer Top decoration Hook Top bar Top bar with hook Larger canopy Top canopy Electrical wire Bar top...
- Page 4 For ease of identification all hardware Hardware Identification is organized into separate Hardware packs. Hardware Pack 1 (AA) M5×16 bolt 32 pieces (TBZ00105016HQ) (BB) M5 washer 32 pieces (TBZ10405HQ) (CC) M6×70 bolt 4 pieces (TBZ00106070HQ) (DD) M6 washer 8 piece (TBZ10406HQ) (EE ) Nut 4 pieces...
- Page 5 STEP #1 Screens (X32) AA (X32) BB (X4)CC (X8)DD (X4)EE Fig.3 Fig.4 Fig.1：Attach the rail fences onto the standing posts and screens, as Fig. 1. Fig.2：Align the holes in 1E with those in beams 1D and 1D1, and fix them with bolts AA, washers BB, as Fig. 2. Fig.3：Align the holes in 1E with those in beams 1D, 1D1, and screen 1A1, secure them with bolts AA, washers BB, and then use bolts CC, washers DD and nuts EE to fix the beams with screens, as Fig.
- Page 6 STEP #2 Top & Canopy (X6)FF (X12)DD (X6)EE Fig.5: Screw the hook 2A1into 2A, and then connect the top bars 2B, 2B1 with 2A and secure them with bolts FF, washers DD, and nuts EE, as Fig. 5. Fig.6: Insert the other ends of top bars 2B, 2B1 into the connector as shown in Fig. 6. Fig.7＆Fig.8: Put the larger canopy 2C onto the larger top (do not have it well fixed here）, then fix the top canopy 2D completely.
- Page 7 STEP #3 (X2) AA (X2) BB (X2)FF (X4)HH (X2)GG (X2)DD (X12)II Fig.10: Fix 3A with 1A and 1C with bolts FF and washers HH, and then use bolts AA and washers BB to fix 3B and 3A separately. Secure 3B with 1A and 1C separately with bolts GG and washers DD, as Fig.10.
- Page 8 Important: Please do not return this product to the store. For technical assistance on assembly or replacement parts Please do not return this product to the store, call Sunjoy Industries at 1(866) 578-6569 from 8:30 AM to 5:30 EST Monday to Friday or fax the replacement part form which put into the package to (740)-283-3549 or Email thd07@sunjoygroup.com for assistance.
