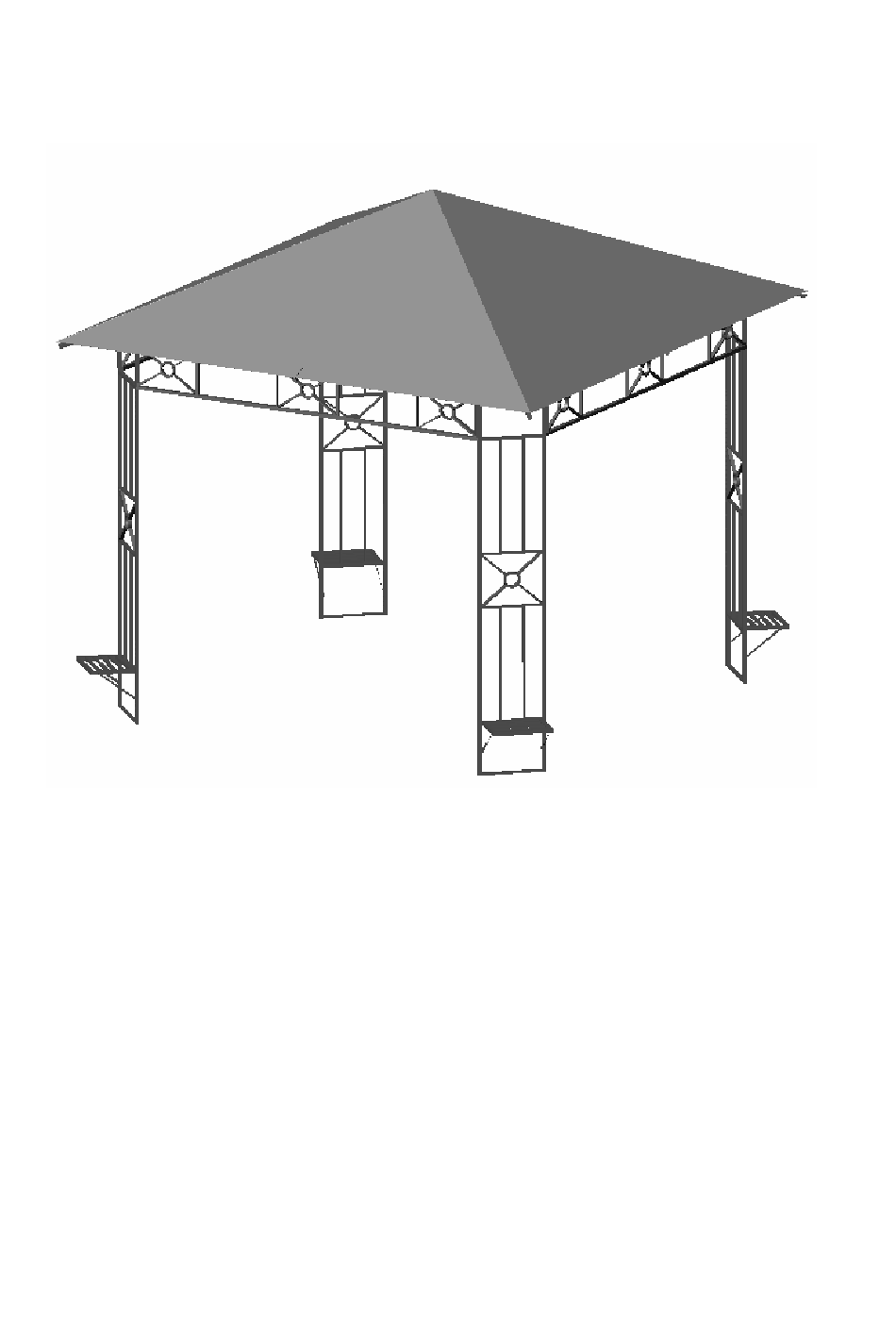

Cola Gazebo
Style # L-GZ071PST
Recommended persons for safe assembly: 3.
CONGRATULATIONS – You've purchased a fine item from The Home Depot.
Our clear, easy to follow; step by step instructions will guide you through the project
from start to finish. Feel confident that this will be a fun and rewarding project. The
final product will be a quality piece that will go together smoothly and give years of
enjoyment.
All you will need is a screwdriver, a hammer, and a ladder not lower than 2m (about
6.6 feet).
If you have any questions just call 866-578-6569. Please refer to the DPCI code
about when calling.
