IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use &
care directions, before attempting to assemble.
1. When installing and assembling your gazebo, it is recommended that 4 or more adults are
involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck
by lightning.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury,
possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage
will occur to the structure.
5. Never barbecue under this gazebo or use lanterns that contain open flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Ensure that all connectors & poles are firmly secured fully in position. It is important to do so
before use so as to avoid collapsing or damage to the item, which could result in injury.
Tools required: ladder, hammer screwdriver (not included)
`
Assembly Instructions
ITEM#L-GZ076PST-1B

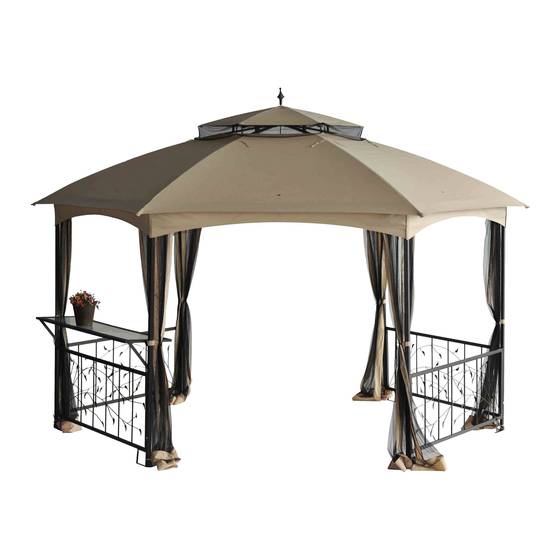

Hexagon Leaf Gazebo
1
Advertisement
Table of Contents
Related Manuals for Sunjoy L-GZ076PST-1B
Summary of Contents for Sunjoy L-GZ076PST-1B
- Page 1 Assembly Instructions ITEM#L-GZ076PST-1B Hexagon Leaf Gazebo IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions, before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 4 or more adults are involved.
- Page 2 Parts List Pole 1 Pole 2 Pole 3 Pole 4 Pole 5 Fence 1 Fence 2 Screen Corner connector Slant bar Small top bar Large top connecter Small top connecter Hook Tracking Tube Glass side bar top Side bar top support (preassembled on the side bar top K) Peg fitting 1...
- Page 3 Peg fitting 2 Peg fitting 3 Small canopy Top canopy Bug netting decoration Finial Hardware Pack M5×15 mm Screw 56PCS M5 Flat Washer 56 PCS M6×30 mm Screw 2PCS M6 Flat Washer 2PCS Plastic Washer 4PCS Stake 8PCS Plastic Tie 48 PCS M6 Wrench 1 PC...
- Page 4 Fig 1.1 Fig 1.2 Fig.2 Step.1: Insert Fence 1(B1) into Pole2 (A2) and Pole 4 (A4) as Fig 1.1and Fig 1.2 showed; then insert the other end of fence into Pole 5(A5) and Pole 3(A3), assemble Fence 2(B2) in the same way. Step.2: Use screw (AA), flat washer (BB) to connect Peg fitting 3 (O) to Fence (B1) and Pole (A4 and A2) (Fig.2).
- Page 5 Fig.4 Fig.3 Fig.5 Fig.6 Fig.8 Fig.7 Step.3: Use screw (AA), flat washer (BB) to connect Peg Fitting 1(M) to Fence (B1 and B2) and Pole (A3 and A5) (Fig.3). Step.4: Use screw (AA), flat washer (BB) to fix Tracking Tube (J) to the Screen (C) (Fig.4). Step.5: Install the Screen (C) to the Pole (A4/A1/A2/A3/A5) with its own pin (Fig.5).
- Page 6 Fig.10 Fig.9 Fig.12 Fig.11 Step.9: Insert Small top bar (F1) to Small top connecter (H) (Fig.9). Step.10: Assemble the small canopy (P) on small top frame (Fig.10). Fig.13 Step.11: Rotate the Finial decoration (S) to the screw bar of small top (H) (Fig.11). Step.12: Assemble the Top canopy (Q) on top frame (do not tighten) (Fig.12).
- Page 7 Fig.16 Fig.15 Fig.15 Fig.16 Step 15：Insert Stake (GG) into Peg fitting 1/2/3(M/N/O) from up to bottom (Fig.15). Step 16：Hang the Netting (R) to Tracking Tube (J) with Plastic Tie (HH), (Fig.16).Lastly fully assembled the canopy (Q). Now the gazebo is ready for use.
- Page 8 USE & CARE: 1. This Gazebo is not a permanent structure and should be disassembled & stored away after use. 2. Do not repack your gazebo until completely dry. 3. This Gazebo must be assembled by Four adults or more. 4.
