Safety, Operations & Maint. Manual
®
Cleanfix

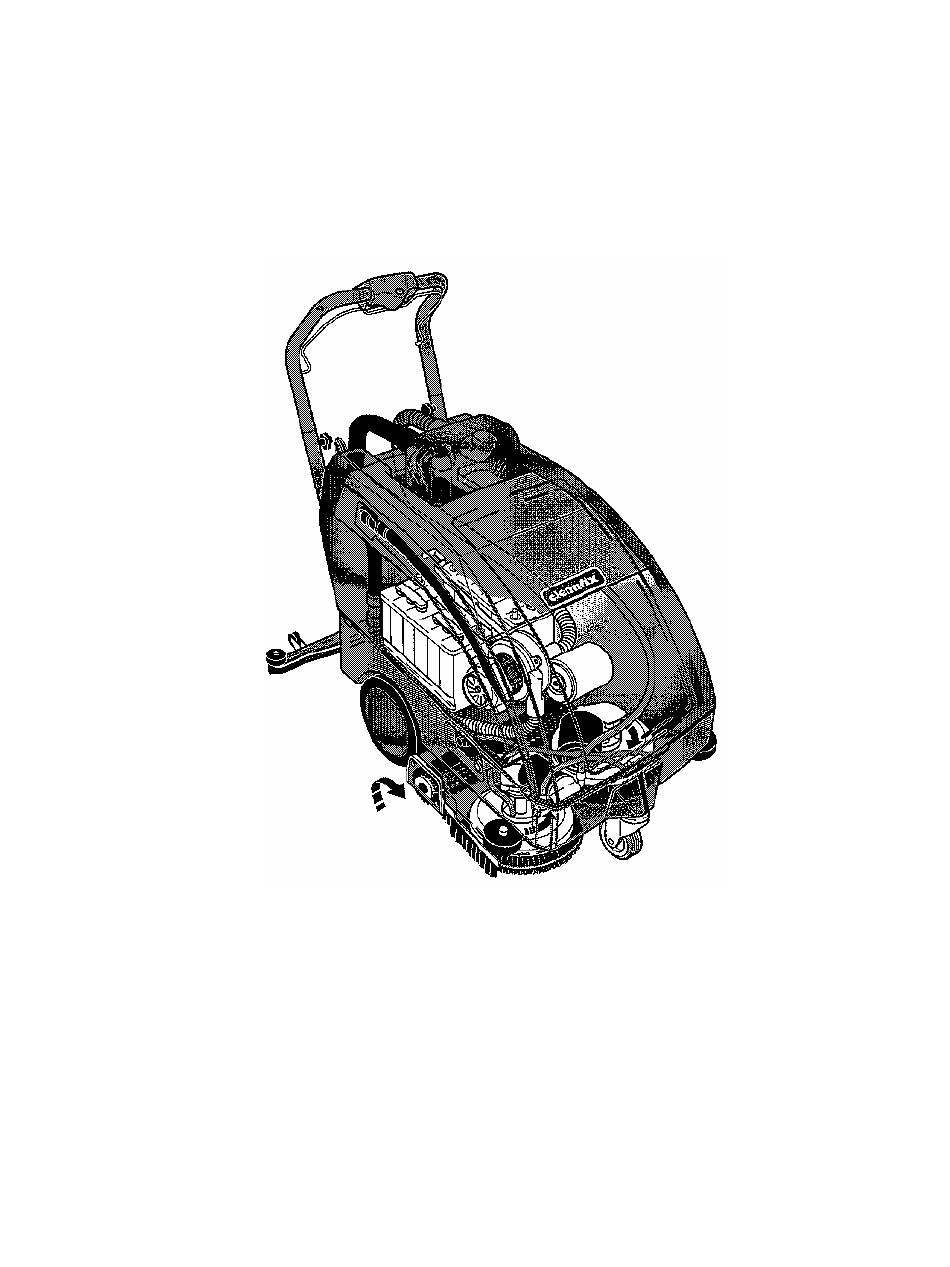

Falcon
(RA 530 B)
This unit is intended for commercial use
This manual is furnished with each new RA 530 B.
It provides necessary operation and maintenance instructions.
READ AND FOLLOW ALL INSTRUCTIONS, WARNINGS AND CAUTIONS BEFORE AND WHEN
USING THIS AUTO-SCRUBBER. THE MACHINE MAY ONLY BE USED BY PERSONS WHO HAVE
BEEN INSTRUCTED IN ITS HANDLING AND EXPRESSLY ENTRUSTED WITH THE OPERATION
THEREOF.
All information and specifications printed in this manual are current at the time of printing. However,
because of Cleanfix' policy of continual product improvement, we reserve the right to make changes at
any time without notice.
Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0
Advertisement
Table of Contents
Related Manuals for Cleanfix Falcon
Summary of Contents for Cleanfix Falcon
- Page 1 THEREOF. All information and specifications printed in this manual are current at the time of printing. However, because of Cleanfix’ policy of continual product improvement, we reserve the right to make changes at any time without notice. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 2: When The Machine Is Delivered
• Never drive over steps! air flow. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 3 Only use low foaming and non-inflammable • The danger of using easily flammable, toxic, cleaning agents, which do not include health-damaging, caustic irritating hazardous components. substances is expressly pointed out. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 4: Sources Of Danger
This will avoid further damage to or damage to the user and/or the auto-scrubber. the auto-scrubber or injury to the user. SAVE THESE INSTRUCTIONS! Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... -
Page 5: Intended Use
CHECK IF COMPLETE • Machine • Squeegee assembly • Scrub brushes or pad driver and cylindrical brush • Operations manual Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... -
Page 6: Installing The Batteries
Using wet batteries (lead-acid batteries), the waste water tank must be kept tilted OPEN during the entire charging process. ATTENTION! The manufacturer takes no responsibility when batteries spill occurs! Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... -
Page 7: Preparations For Work
Front view 4. Vacuum push button 1. Brush pressure adjustment 5. Brush push button 2. Supporting bar / Kick stand 6. Solution push button G. Access to battery/component compartment Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 8 FUNCTIONAL PARTS AND ACCESSORIES Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 9: Operation
• The brush pressure can be adjusted with the screw for adjusting the brush pressure (F2). To insert the brushes or pad holders, place the pins on the brushes into the holes of the drive Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... -
Page 10: Finishing The Job
• Remove squeegee assembly from the holder normal upward position. and clean it. • Rinse and clean recovery tank cover with clean water. • Clean below the machine with a damp cloth. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 11 This auto-scrubber should be stored in an upright position. Objects should not be stored or stacked on top of unit. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 12: Maintenance And Repair
Before repairing machine disconnect any chargers attached and unplug batteries from machine. • Repairs and any type of service may only be done by an authorized service center or factory personnel. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 13 3. Charging WARNING! Only use chargers approved by Cleanfix for charging. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
- Page 14 Failure to comply with the operating and handling instructions, carrying out repairs using non-original spare parts and attempts to carry out the repairs by the user lead to a loss of the right to make claims under the warranty. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 15: Troubleshooting
Poor cleaning performance! Problem: Worn brush or pads. Solution: Replace brush or pads. Problem: Improper chemical for cleaning job or improper dilution. Solution: Change chemical or adjust dilution. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 16 (less pressure) machine runs slower. Turn screw downwards = lower brushes (more pressure) machine runs faster. Problem: Brushes are not touching the floor. Solution: Lower the brushes with pedal. Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0...
-
Page 17: Technical Specifications
Wassermenge Waterflow 0 – 0.8 gal./min. / 0 - 3 lt/min Quantité eau Waterlift of vacuum motor Unterdruck Saugmotor 63 inches / 180 mbar Depression du moteur d’aspiration Safety, Operation and Maintenance Manual for Falcon (RA 530 B); Version 1.0... - Page 18 No person, agent, representative or distributor the written warranty. Cleanfix will not be liable for any other is authorized to give any warranties on behalf of Cleanfix, or to damages, including but not limited to incidental, indirect or...
