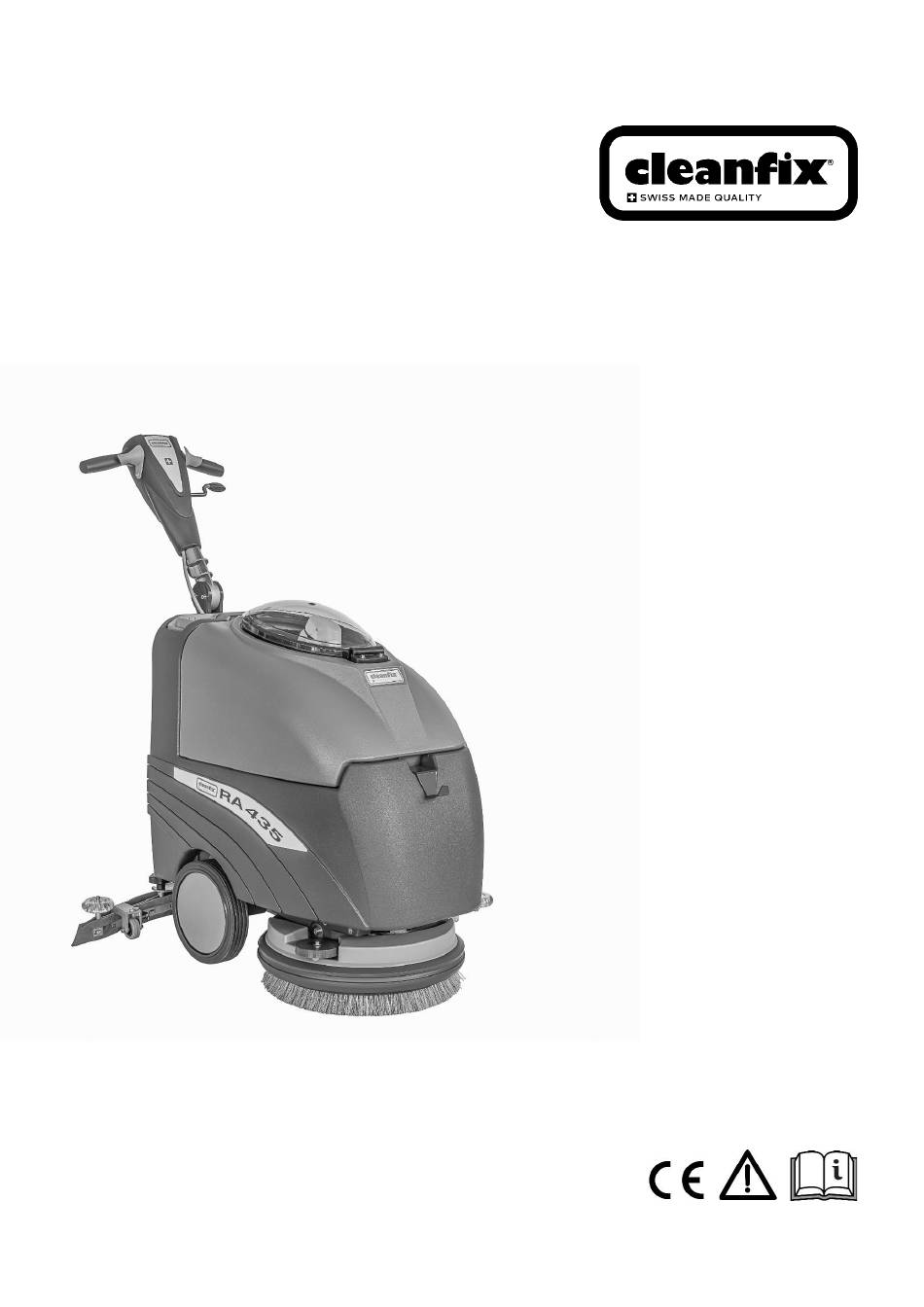

- Page 1 RA435 IBC SEV RA435 IBC VDE Scrubber dryer English Operating Instruction Operation, care and maintenance...
-
Page 2: Table Of Contents
Dear customer Congratulations and thank you for purchasing your Cleanfix RA435 scrubber-dryer. You have purchased a Swiss quality product that has been manufactured with the utmost care. Cleanfix Reinigungssysteme AG Stettenstrasse 15 CH-9247 Henau Tel. +41 58 329 45 45 info@cleanfix.com / www.cleanfix.com... -
Page 3: Symbols
Operating the device in an improper condition before it has been repaired by authorized specialists is expressly prohibited. Cleanfix reserves the right for technical improvements within the scope of model maintenance. Therefore, the unit may differ in details from the information in the brochure and the pictures in this operating manual. -
Page 4: Security
The use of waxes and dispersions will cause malfunctions and clogging of the pipes. Use only brushes or accessories supplied or approved by Cleanfix. The use of other brushes or drive plates with pads may compromise safety and service life. - Page 5 If the power cord of this device is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid danger. Danger to life! Do not use damaged extension cords. www.cleanfix.com 435.041...
-
Page 6: Important Safety Instructions For Handling Batteries
• Batteries must not be disposed of with household waste! • Return defective or used batteries to the dealer! • Before disposal, secure the contacts against short-circuit (e.g. insulate with adhesive tape). • Do not throw batteries into water! www.cleanfix.com 435.041... -
Page 7: Delivery
Carefully unpack the device and check the contents of the packaging for completeness (see scope of delivery). Should you notice any transport damage, contact your dealer immediately. Scrubber dryer RA435 IBC SEV - Version Item no.: 435.016SEV Scope of delivery Scrubber dryer RA435 IBC VDE - Version Item no.: 435.020VDE Suction nozzle curved, standard Item no.: 432.559... -
Page 8: Structure And Function
23 Fresh water drain 10 Brush head 24 Deflection rollers suction nozzle 11 Scrubbing brush 25 Batteries 12 Deflection roller brush head 26 Brush motor circuit breaker 13 Wheel 27 Type plate 14 Suspension additional pad or brush www.cleanfix.com 435.041... -
Page 9: Commissioning
DIP1 DIP2 DIP1 DIP2 Charge curve / Batterietyp Fuse Voltage 827-046-000 OFF OFF OFF OFF IUIa EXIDE GEL 827-046-001 OFF OFF OFF IUoU AGM 827-046-002 ON OFF OFF OFF IUla Nass 827-046-003 ON OFF OFF IUIUo AGM DISCOVER www.cleanfix.com 435.041... - Page 10 (2) (Fig. 6). Tighten the star knobs (1) hand tight. Attach the suction hose (3) to the suction nozzle. The suction nozzle can be lowered and raised at the tread plate (4) with the foot. (Fig. 7) www.cleanfix.com 435.041...
- Page 11 (Fig. 8) Do not fill above maximum! Please refer to the manufacturer's instructions on the containers for the prescribed dosage of cleaning and care agents. You can find recommended products from Cleanfix detergents in our web shop. www.cleanfix.com 435.041...
-
Page 12: Machine Operation
2. Pressing the button switches to NORMAL mode 3. Pressing the button switches to BOOST mode 4. Pressing the button switches the suction nozzle off with a run-on time of 10 seconds, so that residual water in the hose is still sucked in. www.cleanfix.com 435.041... -
Page 13: Working Methods
(Fig. 10) to switch on the suction nozzle, the power of which can be changed to ECO, NORMAL or BOOST by pressing it several times. Now start the brush by pressing one of the two red start levers (1, Fig. 12) on the steering handle to begin cleaning. www.cleanfix.com 435.041... - Page 14 → Drive the scrubber-drier to the appropriate emptying point. Advantageous in Sink with sewer connection. → Unscrew the screw cap (23, Fig. 16) under the machine at the left wheel, drain the fresh water and screw the lid back on hand-tight screw on again. www.cleanfix.com 435.041...
-
Page 15: Maintenance And Cleaning
• Loosen the suction hose at the top (20, Fig. 20, page 16) and rinse it from above. If necessary, empty the fresh water tank (see page 14) Clean nozzles and fins with gloves - risk of injury! www.cleanfix.com 435.041... - Page 16 • In case of repair, please contact your specialist dealer or one of the authorized service workshops. You will be served quickly and professionally. Our products have been tested for safety at the factory. www.cleanfix.com 435.041...
-
Page 17: Battery Maintenance
20°C - 25°C. The optimum chargingtemperature is between 5°C and 40°C. • Are not allowed! Li-Ion batteries Batteries can go into deep charge if not used for a long time and can then no longer be recharged! Batteries should therefore be recharged monthly! www.cleanfix.com 435.041... -
Page 18: Fuse
The brush motor is equipped with additional overload protection (E, Fig. 26), which triggers as soon as the brush is subjected to excessive pressure or resistance. The lock can be deactivated again by pressing the protective switch on the brush motor under the dirty water tank. (Fig. 28 + 29) www.cleanfix.com 435.041... -
Page 19: Service Intervals
Service intervals Cleanfix cleaning machines are high-quality machines, which have been tested in the factory also for safety by our Q&A team and by authorized inspectors. Electrical and mechanical components are naturally subject to wear or aging after a long period of use. - Page 20 Measure acid density according to manufacturer's instructions, replace if necessary Wrong charger to battery type Clarify, replace if necessary Charging plug machine or Check, replace if necessary or plug on charger defective or call service center has bad contact www.cleanfix.com 435.041...
-
Page 21: In Case Of Prolonged Non-Use And Storage
The machine must generally be transported upright and adequately lashed down. Leaking battery acid can cause considerable damage up to total failure of the machine! Technical data Item number 435.016SEV / 435.020VDE Power brush motor 750 Watt Power suction engine... -
Page 22: Environmental Protection
Disposal The packaging and unused cleaning agents must be disposed of in accordance with national regulations. Your Cleanfix partner can assist you with this by arrangement. The disposal of absorbed dirt water must be carried out in accordance with the national regulations. -
Page 23: Ce Declaration Of Conformity
CE Declaration of Conformity ACCORDING TO EC MACHINE GUIDELINES 2006/42/EG, APPENDIX IIA The manufacturer / distributor Cleanfix Reinigungssysteme AG, Stettenstrasse 15, 9247 Henau Switzerland hereby declares that the product: RA435 IBC VDE, RA435 IBC SEV, RA470 IBC VDE, RA470 IBC SEV Identification number: 435.015VDE, 435.016SEV, 435.020VDE, 470.000VDE, 470.000SEV... -
Page 24: Ukca Conformity Declaration
- UKCA CONFORMITY DECLARATION – ACCORDING TO SUPPLY OF MACHINERY (SAFETY) REGULATIONS 2008 The manufacturer / distributor Cleanfix Reinigungssysteme AG, Stettenstrasse 15, CH Henau, Switzerland hereby declares that the product: RA435 IBC VDE, RA435 IBC SEV, RA470 IBC VDE, RA470 IBC SEV Identification number: 435.015VDE, 435.016SEV, 435.020VDE, 470.000VDE, 470.000SEV...
