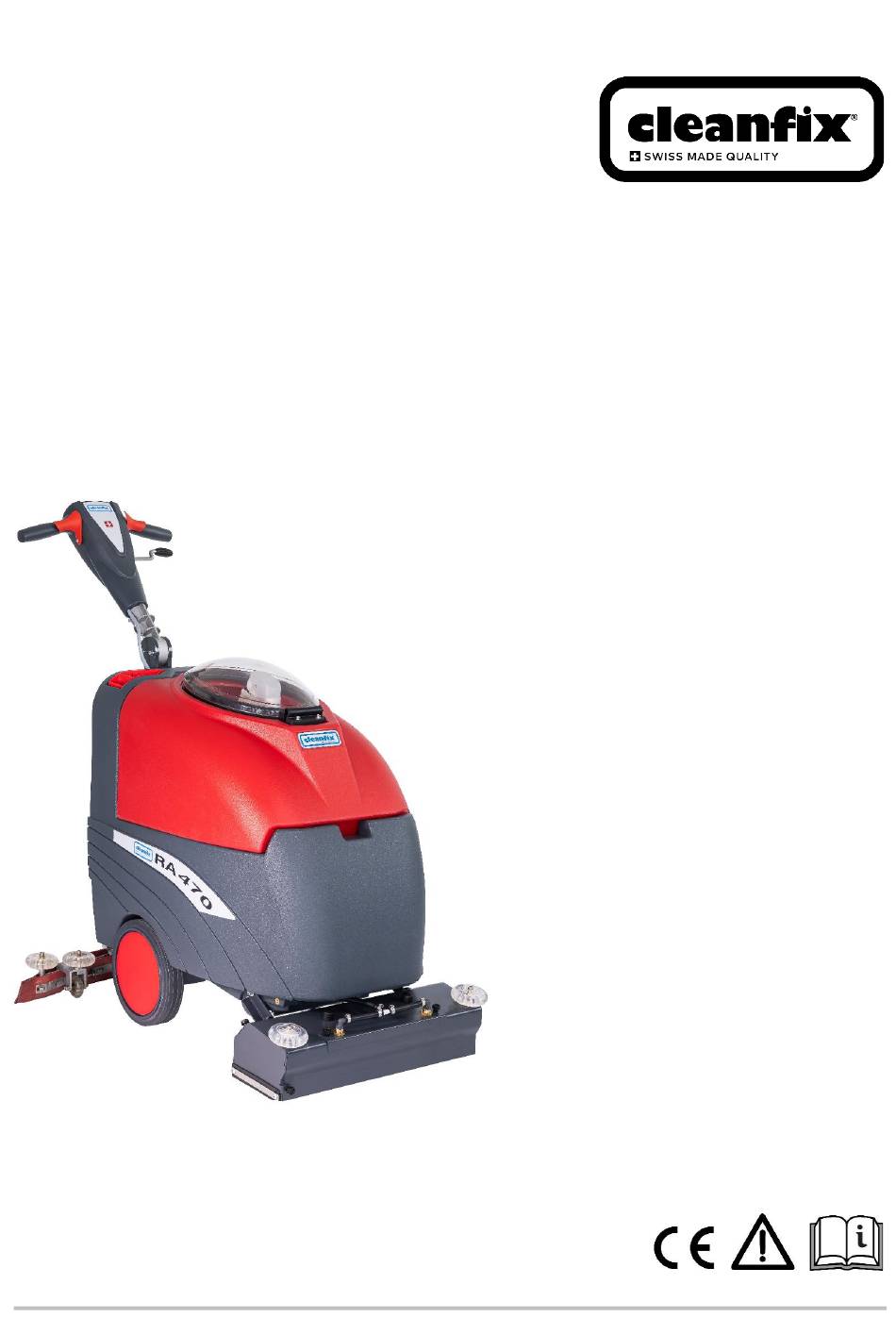

- Page 1 RA470 Roller Brush Scrubber Dryer Operating Instruction Operation, care and maintenance...
-
Page 2: Table Of Contents
Dear customer Congratulations and thank you for purchasing your Cleanfix 470 roller brush scrubber dryer. You have purchased a Swiss quality product, which manufactured with the greatest care. Cleanfix Reinigungssysteme AG Stettenstrasse 15 CH-9247 Henau Inhalt Symbols .......................3 Read operating instructions ..............3 Intended Use ....................3... -
Page 3: Symbols
• the machine is maintained and repaired with original spare parts from the manufacturer. Intended Use The RA470 is an industrial/commercial floor cleaning machine for both rough and smooth hard surfaces (concrete, tile, stone, plastic, etc.). Typical application locations are schools, hospitals/healthcare facilities, hotels, factories, stores, office buildings and retail centers. -
Page 4: Security
The use of waxes and dispersions will cause malfunctions and clogging of the pipes. Use only brushes or accessories supplied or approved by Cleanfix. The use of other brushes or drive plates with pads may compromise safety and service life. - Page 5 If the power cord of this device is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to avoid danger. Danger to life! Do not use damaged extension cords. www.cleanfix.com 470.041...
-
Page 6: Important Safety Instructions For Handling Batteries
• Batteries must not be disposed of with household waste! • Return defective or used batteries to the dealer! • Before disposal, secure the contacts against short-circuit (e.g. insulate with adhesive tape). • Do not throw batteries into water! www.cleanfix.com 470.041... -
Page 7: Delivery
Carefully unpack the device and check the contents of the packaging for completeness (see scope of delivery). Should you notice any transport damage, contact your dealer immediately. Scope of delivery 1x Roller scrubber dryer RA470 Item no.: 470.000 1x Suction nozzle curved, standard Item no.: 432.559 1x Roller brush standard, Ø... -
Page 8: Structure And Function
9 Suction nozzle 22 Water quantity dosage 10 Cover with spray nozzles 23 Fresh water drain 11 Deflection rollers Roller housing 24 Deflection rollers suction nozzle 12 Roller housing with roller brush 25 Batteries 13 Wheel 26 Type plate www.cleanfix.com 470.041... -
Page 9: Commissioning
Charge curve / DIP1 DIP2 DIP1 DIP2 Fuse Voltage Batterietyp 827-046- OFF OFF OFF OFF IUIa EXIDE GEL 827-046- OFF OFF IUoU AGM 827-046- OFF OFF OFF IUla Wet 827-046- OFF OFF IUIUo AGM DISCOVER www.cleanfix.com 470.041... - Page 10 (2) (Fig. 6). Tighten the star knobs (1) hand tight. Attach the suction hose (3) to the suction nozzle. The suction nozzle can be lowered and raised at the tread plate (4) with the foot. (Fig. 7) www.cleanfix.com 470.041...
- Page 11 Always add cleaning or care agents after filling with water to prevent foaming. Do not fill above maximum! Please refer to the manufacturer's instructions on the containers for the prescribed dosage of cleaning and care agents. You can find recommended products from Cleanfix detergents in our web shop. www.cleanfix.com 470.041...
-
Page 12: Machine Operation
2. Pressing the button switches to NORMAL mode 3. Pressing the button switches to BOOST mode 4. Pressing the button switches the suction nozzle off with a run-on time of 10 seconds, so that residual water in the hose is still sucked in. www.cleanfix.com 470.041... -
Page 13: Working Methods
Now start the roller brush by actuating one of the two red start levers (1, Figure 12) on the steering handle. The rotary movement of the roller brush causes a forward movement, which means that cleaning can begin. www.cleanfix.com 470.041... - Page 14 → Move the roller scrubber drier to the appropriate discharge point. Advantageous in Sink with sewer connection. → Unscrew the screw cap (23, Fig. 17) under the machine at the left wheel, drain the fresh water and screw the lid back on hand-tight screw on again. www.cleanfix.com 470.041...
- Page 15 If the bristles are too short, the floor covering may be damaged. Check the brush regularly before starting work! Only the brushes intended for the unit may be used. The use of other cleaning agents may impair safety. www.cleanfix.com 470.041...
-
Page 16: Maintenance And Cleaning
(Fig. • Loosen the suction hose (20, Fig. 24) at the top and flush it from above. If necessary, empty the freshwater tank (see page 38). Clean nozzles and fins with gloves - risk of injury! www.cleanfix.com 470.041... - Page 17 • In case of repair, please contact your specialist dealer or one of the authorized service workshops. You will be served quickly and professionally. • Our products have been tested for safety at the factory. www.cleanfix.com 470.041...
- Page 18 Then reinsert the nozzles and retighten the union nuts by hand. When inserting the nozzles, make sure that the notches of the nozzles are aligned and parallel to the long edge of the support bracket. (Fig. 31) www.cleanfix.com 470.041...
-
Page 19: Battery Maintenance
20°C - 25°C. The optimum charging temperature is between 5°C and 40°C. • Are not allowed! Li-Ion batteries Batteries can go into deep charge if not used for a long time and can then no longer be recharged! Batteries should therefore be recharged monthly! www.cleanfix.com 470.041... -
Page 20: Fuse
Use only fuses with the prescribed value (75A)! Service intervals Cleanfix cleaning machines are high-quality machines, which have been tested in the factory also for safety by our Q&A team and by authorized inspectors. Electrical and mechanical components are naturally subject to wear or aging after a long period of use. -
Page 21: Help In Case Of Malfunctions
(p. 10) Tighten star handles Suction nozzle is loose Brush does not rotate Brush drive not switched on Brush drive on display switch on Brush does not rotate Hair, cords, etc. wraps the Cut open and remove object brush www.cleanfix.com 470.041... -
Page 22: In Case Of Prolonged Non-Use And Storage
• All filters are cleaned. • be stored in a dry, dust-protected and frost-proof place. • The room temperature should not fall below +4°C or exceed +50°C. Storage After decommissioning the machine must be: • dry • dust-protected and • stored frost-proof www.cleanfix.com 470.041... -
Page 23: Transportation
• Batteries must be disposed of separately! • Contact your local authority or dealer for more information. • Store the used device and the rechargeable batteries in a childproof place until disposal! www.cleanfix.com 470.041... -
Page 24: Disposal
Disposal The packaging and unused cleaning agents must be disposed of in accordance with national regulations. Your Cleanfix partner can assist you with this by arrangement. The disposal of absorbed dirt water must be carried out in accordance with the national regulations. -
Page 25: Ce Declaration Of Conformity
The manufacturer / distributor Cleanfix Reinigungssysteme AG, Stettenstrasse 15, 9247 Henau Switzerland hereby declares that the product: RA435 IBC VDE, RA435 IBC SEV, RA470 IBC VDE, RA470 SEV Identification number: 435.015VDE, 435.016SEV, 470.000VDE, 470.000SEV Meets the requirements of the above directive. -
Page 26: Ukca Conformity Declaration
The manufacturer / distributor Cleanfix Reinigungssysteme AG, Stettenstrasse 15, 9247 Henau, Switzerland hereby declares that the product: RA435 IBC VDE, RA435 IBC SEV, RA470 IBC VDE, RA470 SEV Identification number: 435.015VDE, 435.016SEV, 470.000VDE, 470.000SEV Complies with the requirements of the above mentioned directive.
