Summary of Contents for Cleanfix Robo 40
-

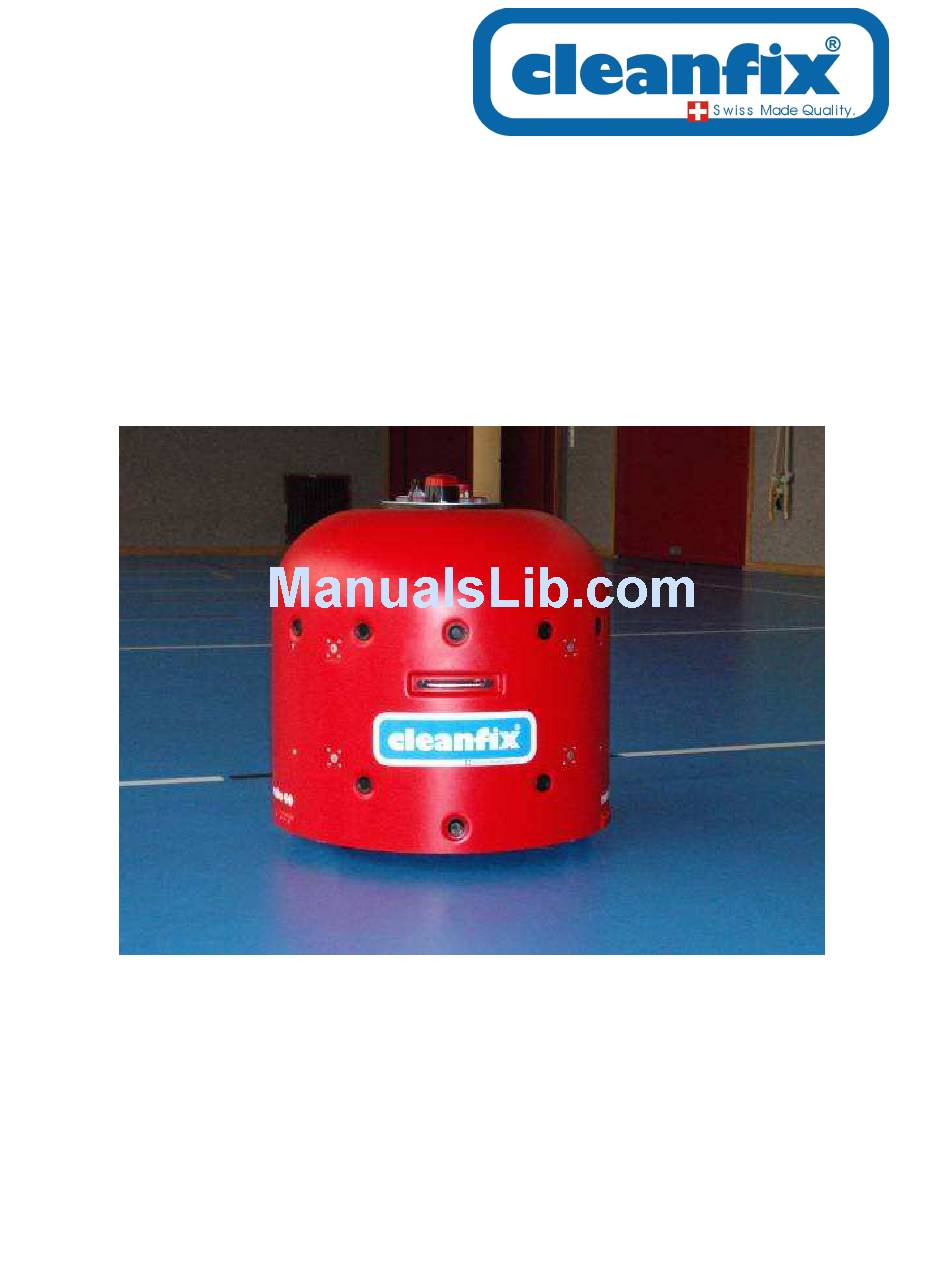

Page 1: Operating Instructions
Robo 40 S c r u b b e r D r y e r R o b o t Operating instructions It is absolutely necessary to read the operating instructions before starting the machine! English... - Page 2 - INFORMATION - General information Please read through these operating instructions carefully. Knowledge of the contents of the operating instructions is one of the prerequisites of avoiding mistakes and thereby operating the unit safely and trouble-free. If any questions arise, please contact our service department using the service hotline, 079 357 40 33. Under no circumstances should you open the unit yourself and attempt any repairs on your own.
-
Page 3: Choosing The Program
Choosing the quantity of water The Robo 40 has three cleaning levels in which the quantity of water and suction power can be changed. Cleaning level L for low level of soiling Capacity min. - Page 4 Insert the suction hose in the membrane tank. Make sure that the filter (A1) is dirt-free and position it at the lowest point in the tank. Put the lid on (C) and connect the water hose to the nipple. (D) The Robo 40 is now ready to operate...
-
Page 5: Control Panel
Hall program Stop” push-button Spiral program Corridor program If the “RUN” Turn 0/l switch button constantly to “I” lights up, the Robo 40 is ready to start. Press the “on/off” To start the push-button. cleaning program press “Run” “Sensor Test”... -
Page 6: Interrupting Operation
"run" button again. Note: If the Robo 40 is working in the hall or corridor program, it will continue with the program that it started after the interruption. In the spiral program, it will begin a new spiral at the place it was interrupted. - Page 7 Note: When the unit is switched on, the Robo 40 can only be moved if the "Emergency off" button is pressed. Method 2: Transport the Robo 40 with the service cart (A/B).
- Page 8 - CLEANING THE ROBO 40 - The Robo 40 requires regular cleaning and care. To achieve flawless cleaning results, dirtying such as can be seen in the illustrations A/B/C must not occur. Point 1 First of all, remove the suction bar (see "Suction Nozzle" chapter). Then remove the fresh water tank.
-
Page 9: Charging The Batteries
"run" button (B). Rinse the water lines for 5 to 10 seconds before each use of the Robo 40. After completion of the rinsing process, check the water discharge on the ground. This guarantees an intact water flow. -
Page 10: Eliminating Malfunctions
Emergency stop button pressed Reset switch Key switch not in "on" position Turn key switch to the right Faulty fuse Install new fuse (only service personnel) Leave any other repairs and service work up to a Cleanfix technician. - NOTES -... -
Page 11: Technical Specifications
- TECHNICAL SPECIFICATIONS - Technical specifications Scrubber dryer robot Robo 40 Performance data Power rating (max.) Suction power 100 - 200 Brush pressure Cleaning speed m/sec Battery charging time Run time = (battery and water) approx. 6 Main processor MB RAM... - Page 12 Cleanfix Reinigungssysteme AG Stettenstrasse CH-9247 Henau-Uzwil Tel. 071 955 47 47 Fax 071 955 47 60 www.cleanfix.com info@cleanfix.com...
