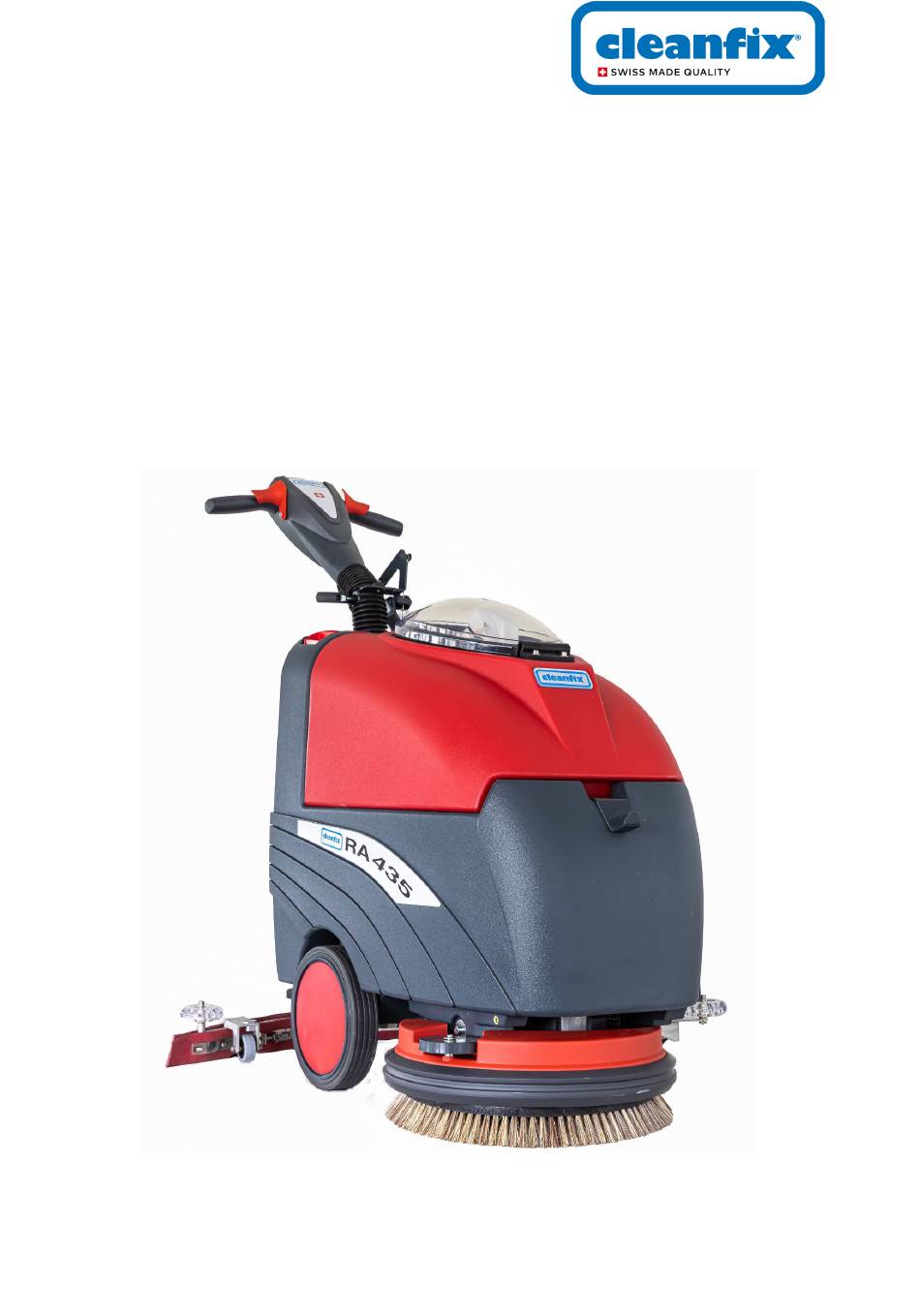

- Page 1 RA435 IBC Transport wheel 435.370 mounting instructions May issue 2023 www.cleanfix.com...
-
Page 2: Danger From Electric Current
Transport wheel contents Transport wheel unit Tension spring P511P Cylinder head screw M8 x 60 P487FA Washer M8 8,4/21/4 P495Z Cylinder head screw M6 x 14 P486QA Washer M6 6,4/18/1,6 P497H May issue 2023 www.cleanfix.com... - Page 3 Mounting transport wheel Loosen the screw on the brush head. The screw is no longer needed. Pos. 2 Pos. 3 Pos. 1 Specified positions/screw holes to which it is mandatory to attach the transport wheel. May issue 2023 www.cleanfix.com...
- Page 4 Use the M6 screw and washer to fix the transport wheel tot he fresh water tank at positions 2 + 3 (according to page 3). It may help to remove the pressure spring for this purpose (better accessibility for spanner). May issue 2023 www.cleanfix.com...
- Page 5 Ready-mounted transport wheel with pressure spring. Contact Cleanfix Reinigungssysteme AG Stettenstrasse 15 CH-9247 Henau +41 71 955 47 47 info@cleanfix.com www.cleanfix.com May issue 2023 www.cleanfix.com...
