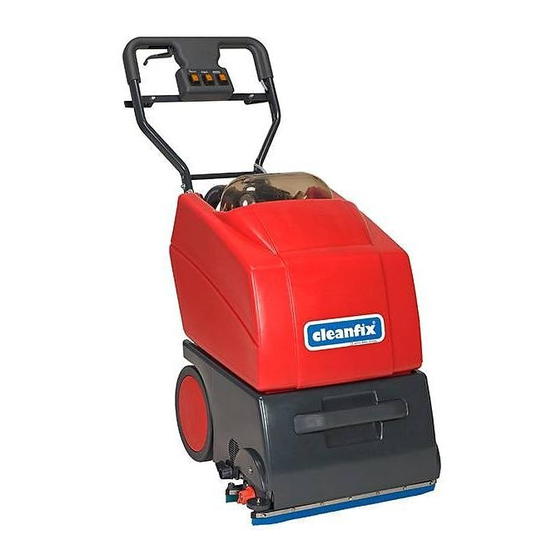

Summary of Contents for Cleanfix RA 410 E

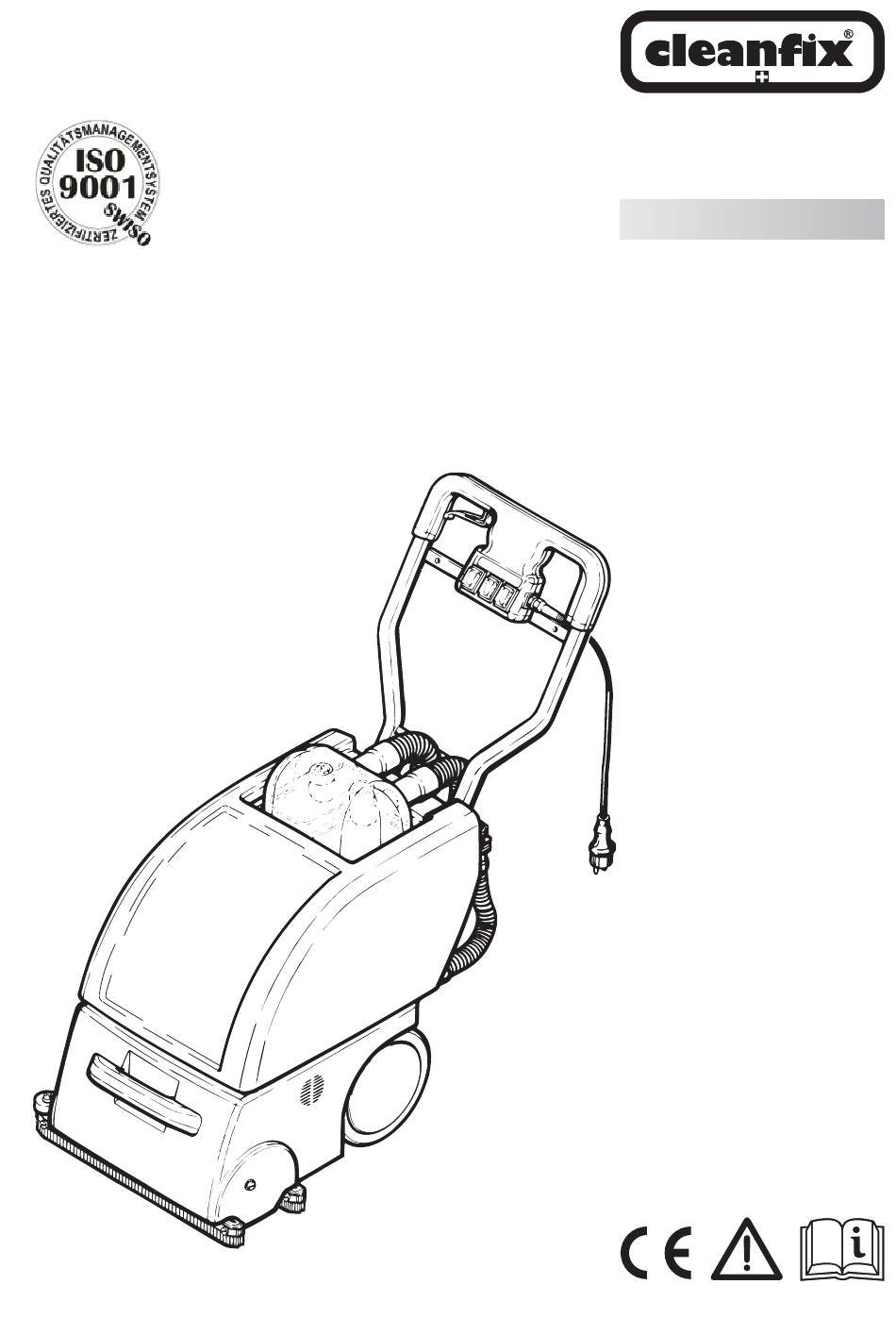

- Page 1 RA 410 E Swiss Made Quality. Englisch BA 410E.000 04 / 2012...
- Page 2 ● These operating instructions have been made for the instructions are also an important part of the proper operators of the RA 410 E. operation. The appropriate accident prevention rules, as well as Please get acquainted with the components, safety ●...
- Page 3 Description of pictures RA 410 E Manual switch for pump Switches for pump Switches for brush drive Switches for vac motor Waste water tank Clean water tank Lift-off for squeegee Parking support Handle for transporting the unit Cylindrical brush Squeegee...
- Page 4 For damages caused to the vacuum motor by foam entering the manufacturer gives absolutely no warranty. ☞ Switch on spraying pump and In case of foam occuring in the tank and anti foam vacuum motor. agent to the dirty water tank! RA 410 E - Englisch...
- Page 5 Clean or replace suction lips. ● Insufficient supply of cleaning agent ☞ Lines or spraying jets plugged with Flush fresh water tank and line ● cleaning agent system. Rinse sieve in tank cover with water. ● RA 410 E - Englisch...
- Page 6 Old appliances contain valuable materi- als that can be recy-cled; these should be sent for recycling.. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appropriate collection systems. RA 410 E - Englisch...
- Page 7 RA 410 E Brush motor As at: 07/07/15 Time:09:59...
- Page 8 RA 410 E Brush motor As at: 07/07/15 Time:09:59 Pos. Description Reference 01 Brush motor complete including Items 2-4 400.281 02 Brush motor 370 W 400.281 A 03 Threaded pin M 6x10 mm P...484 Y 04 Belt pulley 400.284 05 Brush support compl. including Items 38-43 400.460...
- Page 9 RA 410 E Chassis As at: 07/07/15 Time:09:59...
- Page 10 RA 410 E Chassis As at: 07/07/15 Time:09:59 Pos. Description Reference 01 Chassis 411.111 02 Right support 411.114 03 Left support 400.113 04 Hexagon socket screw M 6x25 mm P...486T 05 Frame 420.352 06 Hexagon socket screw M 4x12 mm P...486A...
- Page 11 RA 410 E Front suction nozzle As at: 07/07/15 Time:09:59...
- Page 12 RA 410 E Front suction nozzle As at: 07/07/15 Time:09:59 Pos. Description Reference 01 Front suction nozzle compl. including Items 4,5,7,8,10-13 400.520 02 Rear suction nozzle compl. including Items 4,5,7+8 400.530 04 Suction nozzle 400.538 05 Set of lamella cpl. 2xblue rubber blades, 2xgreen rubber blades, 4xprotection piece 400.050...
- Page 13 RA 410 E Lower pushbar-1 As at: 07/07/15 Time:09:59...
- Page 14 RA 410 E Lower pushbar-1 As at: 07/07/15 Time:09:59 Pos. Description Reference 01 Lower pushbar 480.652 02 Upper pushbar 420.650 03 Upper joint 420.601 04 Lower joint 420.602 05 Screw knob P...253 06 Hexagon socket screw M 6x12 mm P...486Q 07 Washer M6 P...496L...
- Page 15 RA 410 E Lower pushbar-2 As at: 07/07/15 Time:10:00...
- Page 16 RA 410 E Lower pushbar-2 As at: 07/07/15 Time:10:00 Pos. Description Reference 28 Terminal 3 poles P...383A 29 Marking plate P...390 30 PT-schrew KA 30x14 P...516S 31 Tumbler switch P...240 32 Wiring to handle 410.310S 33 Harness 680mm VDE, black P...400B...
- Page 17 RA 410 E Pump As at: 07/07/15 Time:10:00...
- Page 18 RA 410 E Pump As at: 07/07/15 Time:10:00 Pos. Description Reference 01 Schwingkolbenpumpe NDS-XC NDS-C - pump P...812 02 Raised head screw M 4x10 mm P...481M 03 Angled fitting NW 6 P...810M 04 O-ring 14x1,5 mm P...809K 05 Valve cone P...810S...
- Page 19 RA 410 E Pump assembley As at: 07/07/15 Time:10:00...
- Page 20 RA 410 E Pump assembley As at: 07/07/15 Time:10:00 Pos. Description Reference 01 NDS-C-pump P...812 02 Grommet Ø 14 mm P...207 A 03 Suction hose 8/6x170 mm 400.261 A 04 Pressure hose 8/6x330 mm 400.262 05 Pressure hose 8/6x120 mm 400.261...
- Page 21 RA 410 E Suction motor As at: 07/07/15 Time:10:00...
- Page 22 RA 410 E Suction motor As at: 07/07/15 Time:10:00 Pos. Description Reference 01 Vacuum motor 230V/50-60Hz, 800W 400.211 01a Suction blower 230V/50/60Hz, 1200W 420.210 02 Pair of carbon brushes OEP P...870 KB 02a Pair of carbon brushes LAMB P...870 KH 03 Connection piece 411.215...
- Page 23 RA 410 E Suction nozzle As at: 07/07/15 Time:10:00...
- Page 24 RA 410 E Suction nozzle As at: 07/07/15 Time:10:00 Pos. Description Reference 01 Suction nozzle 400.510 02 Top seal 200x10x3 mm 400.561 03 Top seal 190x18x3 mm 400.561 A 04 Cover 219,6x190x2 mm 400.560 05 Lower seal 190x18x3 mm 400.563 06 Pan Head screw M 4x10 mm P...475 V...
- Page 25 RA 410 E Tank As at: 07/07/15 Time:10:01...
- Page 26 RA 410 E Tank As at: 07/07/15 Time:10:01 Pos. Description Reference 01 Tank 411.721 02 Chassis cover 411.711 03 Handle 077.560 04 PT-screw 50x18 mm P...516Q 05 Washer M 5 P...497E 06 Pan Head screw M 5x12 P...475I 07 Washer M 6 P...496L...
- Page 27 RA 410 E Wiring plan As at: 07/07/15 Time:09:58...
- Page 28 RA 410 E Wiring plan As at: 07/07/15 Time:09:58 Pos. Description Reference B1 Valve-switch P...240 BM Brush motor 230V/50Hz compl. 400.281 C1 Working capactior 12uF P...385 B C2 Starting capacitor 20uF P...385 E C3 Capacitor 0,47uF P...393 B P NDS-C pump 230V/50Hz P...812...
