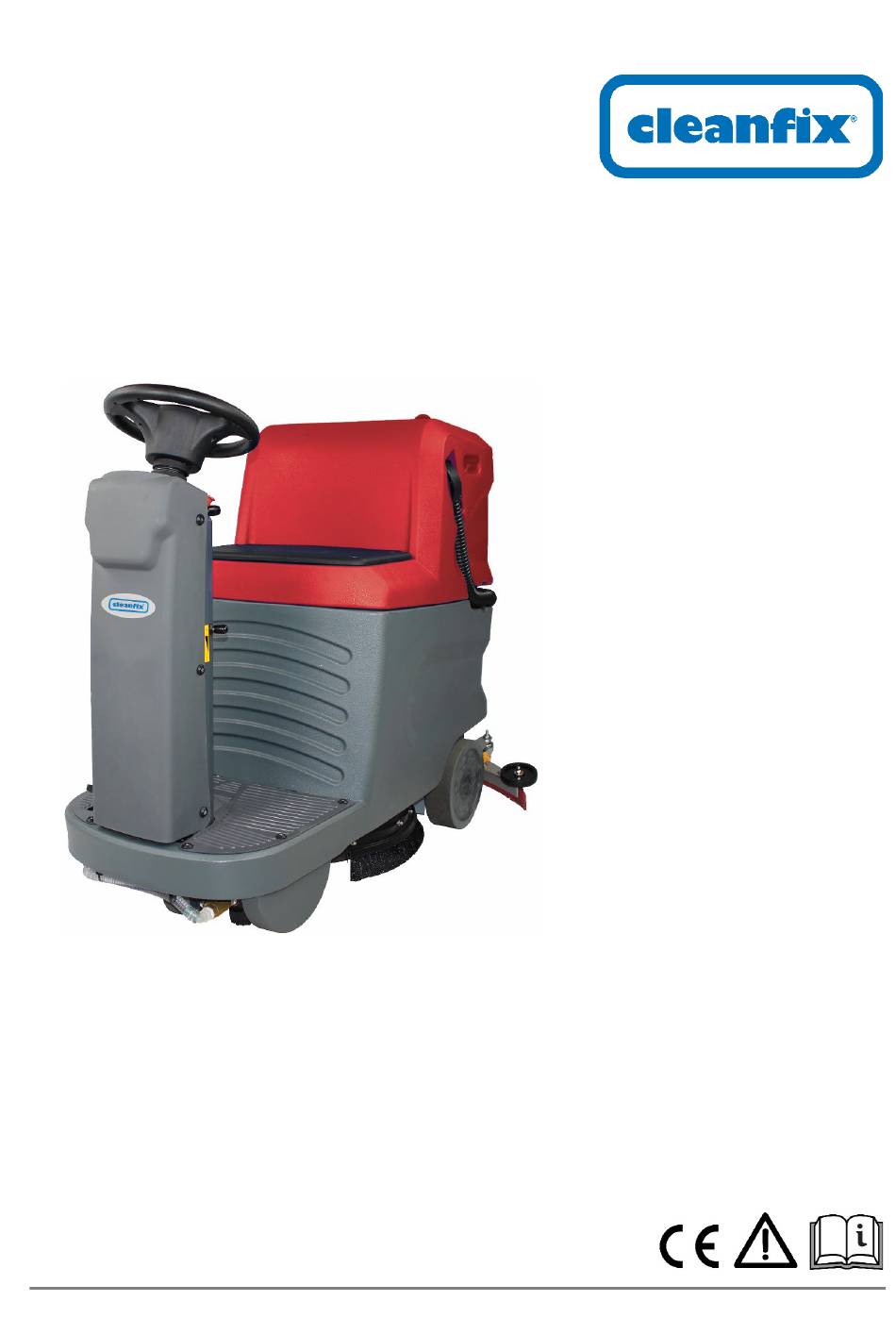

- Page 1 RA565 IBC Scrubber dryer Opera�ng Instruc�on Opera�on, care and maintenance...
- Page 2 This manual is supplied with each new machine. It contains the necessary opera�ng and maintenance instruc�ons. Read and understand this manual completely before opera�ng or servicing the machine. The descrip�ons contained in this document are not binding. The company therefore reserves the right to make any modifica�ons at any �me to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements.
-
Page 3: Table Of Contents
Contents Contents ..................3 SAFETY PRECAUTIONS ..............4 SAFETY LABELS ................6 MACHINE COMPONENTS ............. 7 SYMBOLS ON STEERING COLUMN AND CONTROL PANEL ..... 8 PRE-INSTALLATION OF THE MACHINE .......... 9 MACHINE CLEANING ..............10 INFORMATION ABOUT BRUSHES AND PADS ....... 10 MACHINE PREPARATION ............ -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This scrubbing machine is designed for the professional cleaning of surfaces and floors in industrial, commercial and public environments. The machine is only suitable for use in an enclosed or at least covered loca�on. Please use only recommended pads, brushes and commercially floor cleaners intended for use with the machine. The following warning alert symbol and the heading "FOR SAFETY"... - Page 5 FOR SAFETY 1. Do not operate the machine: With flammable liquids or near flammable vapors as an explosion or flash fire may occur. Unless trained and authorized. Unless the opera�ng manual has been read and understood. If not in proper opera�ng condi�on. 2.
-
Page 6: Safety Labels
SAFETY LABELS The safety labels are located in the marked points on the machine. Missing, damaged or illegible signs must be replaced. WARNING LABEL- are located on the lid of the dirty water tank. Explosion, fire and electric shock hazard, risk of injury. Do not use or absorb flammable materials. -
Page 7: Machine Components
MACHINE COMPONENTS 1. Steering wheel with control panel 2. Main switch for switching on and off 3. Push buton for horn 4. Brush li�-off 5. Suc�on nozzle li�-off 6. Dirty water tank cover 7. Warning light 8. Suc�on hose 9. Dirty water tank 10. -
Page 8: Symbols On Steering Column And Control Panel
SYMBOLS ON STEERING COLUMN AND CONTROL PANEL Horn buton to sound an audible alarm Energy saving switch Switch to direc�on selec�on - forward travel Buton: moun�ng / dropping the brush Symbol: li�ing the brush head / suc�on nozzle Symbol: lowering the brush head / suc�on nozzle Symbols of the suc�on nozzle on the steering column Symbol of the brush head on the steering column Symbol for the maximum water temperature (50°) that can be used... -
Page 9: Pre-Installation Of The Machine
PRE-INSTALLATION OF THE MACHINE Un-boxing the machine 1. Carefully check the transport box for any signs of damage. Report any damage to the carrier immediately. 2. Check the contents list. Contact the distributor if any items are missing Contents: 150Ah bateries (deliveries to Switzerland are delivered without batery - op�onal 105Ah batery) •... -
Page 10: Machine Cleaning
Connec�ng the batery charger INFORMATION: Before charging, ensure that the charger is properly set for your batery type, otherwise damage may occur. Please check the batery label to ensure that the batery type is set correctly. In order to avoid permanent damage to the bateries, it is important to avoid deep discharge. Check the charging process. - Page 11 Filling the fresh water tank The fresh water tank can be filled in two different ways: Remove the filler cap (1) and fill the tank using the rubber hose located on the le� side of the machine. Remove the filler cap (1) and fill with clean water at a temperature of max.
- Page 12 Installa�on of the suc�on nozzle The suc�on nozzle, which is delivered disassembled from the machine for packaging reasons, must be fited when the machine is assembled. Proceed as follows during assembly: 1. Li� the suc�on nozzle by turning the le� lever (1) clockwise. 2.
- Page 13 Moun�ng the brushes / pads FOR SAFETY: Stop the machine on a flat surface before moun�ng the brushes or the driving disc. 1. Check that the main switch is turned off. 2. Li� the brush head by turning the right lever (1) to move the brush head counterclockwise.
-
Page 14: Machine Operation
MACHINE OPERATION For safety reasons: Do not operate the machine un�l you have read and understood this instruc�on manual. WARNING: Fire and explosion hazard. Do not vacuum flammable materials. Before start-up 1. Check if the main switch is turned off. 2. -
Page 15: After Completion Of The Work
Emergency stop switch If problems occur during work, press the emergency stop switch under the control panel, the machine stops and the electric brake is released. To con�nue the work, the machine must be restarted. AFTER COMPLETION OF THE WORK A�er comple�on of the work and before carrying out maintenance work, the following work must be carried out: 1. -
Page 16: Charging The Batteries
18. Park the machine in a closed place where it cannot cause any damage to people or other objects but is also protected from falling objects. 19. Turn the igni�on key counterclockwise (OFF posi�on) and remove the key. 20. Li� the dirty water tank and disconnect the batery plug. WARNING: Do not leave the machine unatended without first removing the key for the start switch and applying the parking brake. -
Page 17: Daily Maintenance
DAILY MAINTENANCE To keep the machine in good working condi�on, it is important that the following maintenance opera�ons are carried out regularly. Cleaning the dirty water tank 1. Loosen the hose (1), unscrew the lid, and empty the dirty water tank. 2. -
Page 18: Weekly Maintenance
4. Check the wear of the rubber blades. If the edge of the rubber blades is badly damaged, the rear rubber blade (6) can be rotated on all four edges. If the rubber blades are completely worn, replace them. To remove the rubber blades, turn the wing nuts (4) to a horizontal posi�on, remove the star grip (5), and then remove the rubber blades to rotate or replace them. -
Page 19: Additional Maintenance
Cleaning the fresh water tank filter Careful cleaning of the fresh water filter ensures beter working performance. Proceed as follows for cleaning: 1. Check that the main switch is turned off. 2. Unscrew the filler cap (1). 3. Remove the filter screen and rinse everything thoroughly under running water. -
Page 20: Troubleshooting
Replacing the brush 1. Check that the main switch is turned off. 2. Li� the brush head by turning the right lever (1) counterclockwise. 3. Press the release buton (2), the brush will be automa�cally ejected. 4. Pick up the brush and replace it with the new one. Motor maintenance Contact an authorized Cleanfix Service Center for carbon brush Carbon brush replacement... -
Page 21: Technical Data
TECHNICAL DATA Item number 566.000 Power supply batery 105 Ah / 150 Ah Power brush motor 24 V / 500 W Power suc�on motor 24 V / 350 W Power drive motor 24 V / 300 W Vacuum 700 mbar Brush revolu�ons 140 1/min Brush pressure max.
