Summary of Contents for Cleanfix RA805

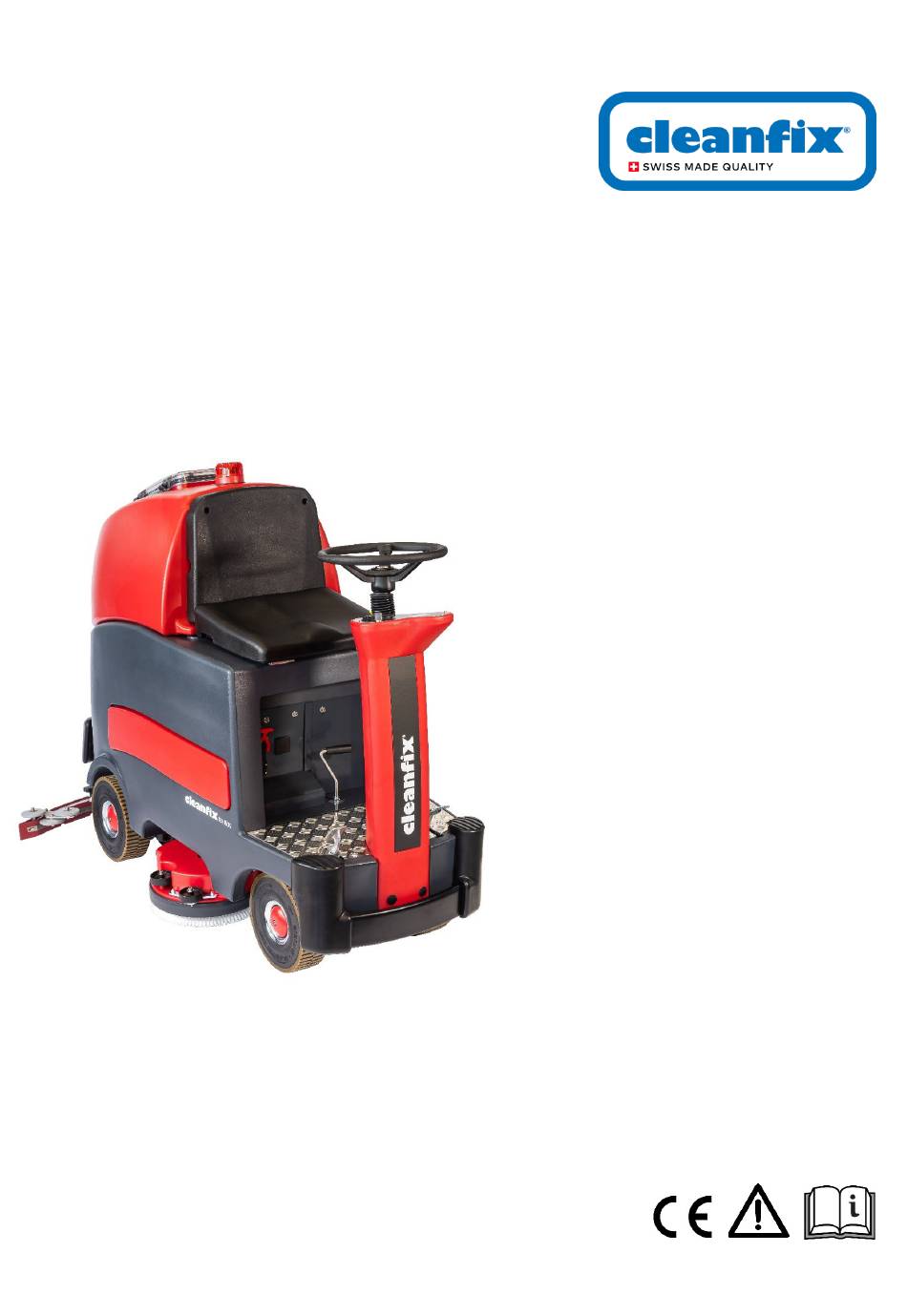

- Page 1 RA805 / RA905 Scrubber dryer English Operating Instruction Operation, care and maintenance...
-
Page 2: Table Of Contents
Dear customer Congratulations and thank you for purchasing your Cleanfix RA805 or RA905 ride-on machine. You have purchased a Swiss quality product, which manufactured with the greatest care. Content Symbols .......................3 Read operating instructions ..............3 Intended use ....................3 Security .......................4 Important safety instructions for handling batteries ......6... -
Page 3: Symbols
Intended use The RA805 / 905 is an industrial/commercial floor cleaning machine for both rough and smooth hard surfaces (concrete, tile, stone, plastic, etc.). Typical applications include schools, hospitals/healthcare facilities, hotels, factories, stores, office buildings and retail centers. -
Page 4: Security
The use of waxes and dispersions will cause malfunctions and clogging of the pipes. Use only brushes or accessories supplied or approved by Cleanfix. The use of other brushes or drive plate with pad may compromise safety and service life. - Page 5 Before use, all parts must be placed in the position specified in the operating instructions. (see picture) To prevent unauthorized use of your machine, the ignition key must always be removed and the parking brake (pos. 7) locked. www.cleanfix.com 800.950...
-
Page 6: Important Safety Instructions For Handling Batteries
• Explosion warning! • If fluid leaks and comes into contact with your skin, flush immediately with plenty of water. If battery fluid gets into your eyes, wash them out with clean water and seek medical attention immediately! www.cleanfix.com 800.950... - Page 7 • Batteries must not be disposed of with household waste! • Return defective or used batteries to the dealer! • Before disposal, secure the contacts against short-circuit (e.g. insulate with adhesive tape). • Do not throw batteries into water! www.cleanfix.com 800.950...
-
Page 8: Delivery
1x Ride-on scrubber-dryer RA905 (alternative) Item no.: 910.015 1x Suction nozzle completely preassembled Item no.: 800.550 2x Scrub brushes Ø 38 cm for RA805 (alternative) Item no.: 800.059 2x Scrub brushes Ø 43 cm for RA905 (alternative) Item no.: 910.059 1x Canister 5L (only for CADS version) Item no.: 565.535... -
Page 9: Structure And Function
26 Batteries Deflection rollers Brush housing 26 Suction engine 27 Suction air filter 28 Level floater 29 Fresh water tank filling hole 30 Compartment for cleaning agent canister 5L (only for CADS version with function) 31 Seat switch www.cleanfix.com 800.950... -
Page 10: Commissioning
The machine is built for (DC) direct current 24V. Used are 4 pcs. 6 Volt batteries connected in series. (Picture 1) This work may only be carried out by approved Cleanfix customer service centers or by qualified personnel. Charging the Disconnect the charging plug from the electrical interface and connect it to the charger plug. - Page 11 Always add detergents after the water has been filled in order to avoid foam formation. Do not fill above maximum! Please refer to the manufacturer's instructions on the containers for the prescribed dosage of detergents. You can find recommended products from Cleanfix detergents in our web shop. www.cleanfix.com 800.950...
-
Page 12: Machine Operation
This controller can also be used to limit the maximum speed continuously while driving, which keeps the speed stable even with the foot pedal fully depressed. Adjustment of the slower desired speed takes place via the foot pedal. www.cleanfix.com 800.950... - Page 13 Displays the set detergent quantity and the mixing ratio in 5 percent steps. If the function is deactivated, no symbol is shown in the display. (see point 9) 5.7. ECO Displays ECO mode. (see point 10) 5.8. SPOT Displays SPOT mode. (see point 10) www.cleanfix.com 800.950...
- Page 14 9. Detergent dosing (Only for version with CADS with function) 9.1. Short keystroke Switches the pump for dosing the cleaning agent on and off. Switching on / off is only possible if the water function is also switched on. www.cleanfix.com 800.950...
- Page 15 To minimize volume regulation. (water / detergent) 13. Emergency stop switch Press red button in case of emergency or maintenance. On-board power supply and battery are disconnected, the machine stops. The emergency stop switch has no influence on the foot brake or parking brake! www.cleanfix.com 800.950...
-
Page 16: Working Methods
Attention, keep in mind the pivoting/swivel range! Heavy soiling In case of heavy soiling, the SPOT mode (10, Fig. 12) can be switched on, whereby the maximum amount of water is dispensed for 10 seconds and the travel speed is reduced. www.cleanfix.com 800.950... - Page 17 (clockwise) and lower - the brush or drive plate disengages. (Fig. 16) • Push new brushes or drive plates with centrally fixed pads under the brush drive, press upward and turn counterclockwise until they engage. (Fig. 17) www.cleanfix.com 800.950...
-
Page 18: Maintenance And Cleaning
4x by reassembling them the other way round. (Fig. 21) • Loosen the suction hose at the top (2, Fig. 18) and rinse it from above. If necessary, empty the freshwater tank (see page 19) Clean nozzles and fins with gloves - risk of injury! www.cleanfix.com 800.950... - Page 19 • Check monthly whether the wheel bolts are still tight. (Fig. 26) • In case of repair, please contact your specialist dealer or one of the authorized service workshops. You will be served quickly and professionally. • Our products have been tested for safety at the factory. www.cleanfix.com 800.950...
-
Page 20: Battery Maintenance
(A) on the positive pole of the battery, unscrew the nut (B) from the fuse switch, remove the defective fuse, insert the new fuse and fasten the nut again (Figure 28). Replace positive terminal cover and lower dirt water tank again. Check the machine functions. Use only fuses with the prescribed value (125A)! www.cleanfix.com 800.950... -
Page 21: Service Intervals
Service intervals Cleanfix ride-on machines are high-quality machines, which have been tested in the factory also for safety by our Q&A team and by authorized inspectors. Electrical and mechanical components are naturally subject to wear or aging after a long period of use. - Page 22 Measure acid density according to manufacturer's instructions, replace if necessary Wrong charger to battery type Clarify, replace if necessary Charging plug machine or Check, replace if necessary plug on charger defective or or call service center has bad contact www.cleanfix.com 800.950...
-
Page 23: Towing In Case Of Malfunction
• All filters are cleaned. • be stored in a dry, dust-protected and frost-proof place. • The room temperature should not fall below +4°C or exceed +50°C. Storage After decommissioning, the machine must be: • dry • dust-protected and • stored frost-proof www.cleanfix.com 800.950... -
Page 24: Transportation
The machine must generally be transported upright and adequately lashed down. Leaking battery acid can cause considerable damage up to total failure of the machine! Technical data RA805 RA905 800.015 910.015 Item number Total power max. -
Page 25: Environmental Protection
Disposal The packaging and unused cleaning agents must be disposed of in accordance with national regulations. Your Cleanfix partner can assist you with this by arrangement. The disposal of absorbed dirt water must be carried out in accordance with the national regulations. -
Page 26: Ce Declaration Of Conformity
Cleanfix Reinigungssysteme AG Stettenstrasse 15 | CH-9247 Henau declare under their sole responsibility that the product, Hard floor cleaning machine RA805 / RA905, to which this declaration refers, is in conformity with the following standards or normative documents. Low voltage, machinery: EN 60335-1 (ed.3);...
