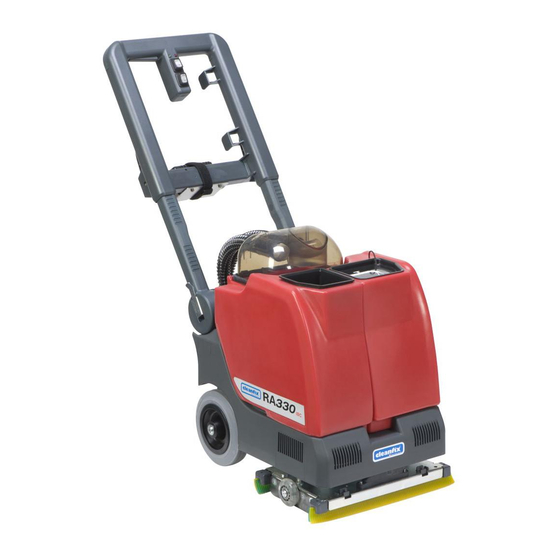

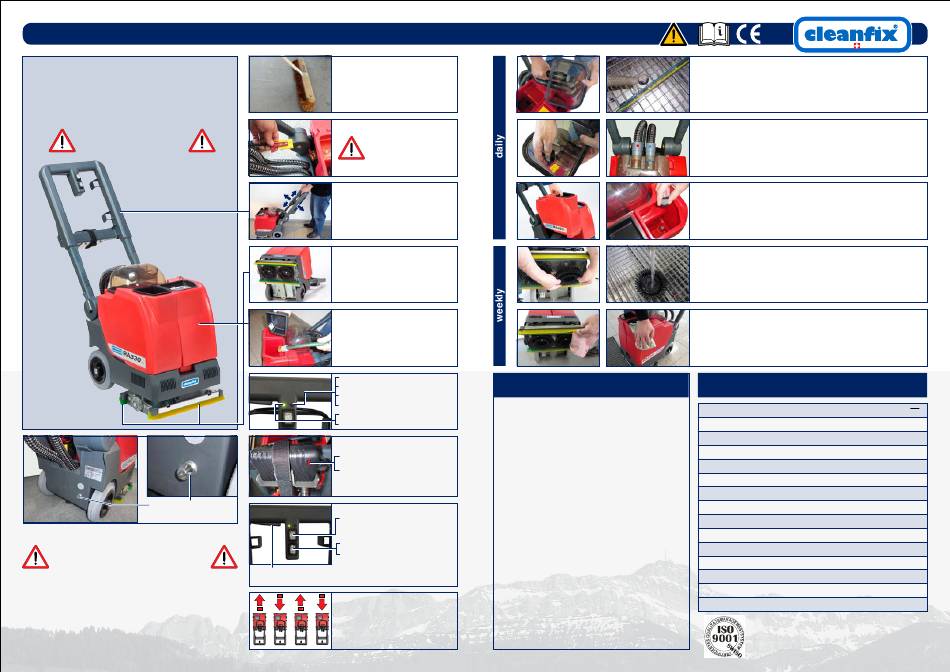

Cleanfix RA 330 IBC Instructions Of Use

Instruction of use
RA 330 IBC
simply clean...
Recharge after each use
Turn off all switches
Motor protection
switch
Please use the machine on flat
surfaces and not inclined to
( For safety ).
Cleanfix Reinigungssysteme AG - Stettenstrasse
CH-9247 Henau-Uzwil / SG
Tel. 0041 71 955 47 47 Service No.
Fax 0041 71 955 47 60 CH 0041 79 357 40 33
www.cleanfix.com D 0049 180 500 91 76
info@cleanfix.com A 0043 662 85 69 53
before start-up
Before using the ma-
chine the floor must be
clean swept
After charging
replug device
Adjust the handle bar
at the correct height
(hip level) and tighten
the clamp
Tilt the machine back-
wards and ensure that
the brushes and the
suction nozzles are fixed
Fill the fresh water Tank
and the dose cleaning
product with dosing.
Battery indicator is blinking
red =
Battery almost empty
Battery indicator glows
Machine switches off after 20 sec.
Battery indicator
green = Battery is loaded
red =
Battery charge
green = Battery charged
Switcher suction motor
Switcher fresh water
and brush motor
Operation lever for water and
brush drive constantly pressed. With this machine,
it has to be cleaned by moving forward and backward
The machine must be
cleaned with forward
and backward
Maintenance
What to do if.....
red=
... The machine does not function at all?
Check the charge level of the battery.
Check the battery connection
– is on the socket under tension
– motor protection switch press
... if there is weak or no suction at all?
Are the suction nozzles clean
Does the dirty-water-filter coverfit airtight
/ properly? Is the suction motor running?
Switch on? Suction at nozzle?
... the brushes or drive discs with pads
do not turn?
Check the battery charging level
Check that the disc brushes / pad driver
are well attached
... there is no water supply to the
brushes / floor?
Check that the fresh water filter is clean
Water supply only functions, when the
brush motor runs!
Swiss Made Quality.
Remove the transparent cover
Remove the airfilter and clean it
Reassemble the airfilter
(pay regard to the suction hose adapter)
Remove the fresh water and dirty water
tank, empty and flush the tanks and the
fresh water filter
Remove the brushes and the pad drives
Clean and check them
Clean and check the suction nozzles
regarding abrasion, clean also the machine
Technical Data
Rated voltage
Capacity fresh water
Capacity waste water
Brush rotation 240 rpm.
Brush diameter 2 x 170 mm
Number of brushes 2 circular brushes
Working width
Suction Width
Theoretical capacity 1320 m
Dimension L / W / H 520/400/550 mm
Shipping weight
Total weight
Sound pressure level
< 2,5 m/s
Acceleration value
Safety class
Item No. 322-GB - 04/2012
12 V ...
9 liters
11 liters
330 mm
390 mm
2 /h
35,5 kg
44,5 kg
67 dBA
2
I
