- Page 1 OPERATION MANUAL Hand Cutter HC-040 www.dcutproducts.com...

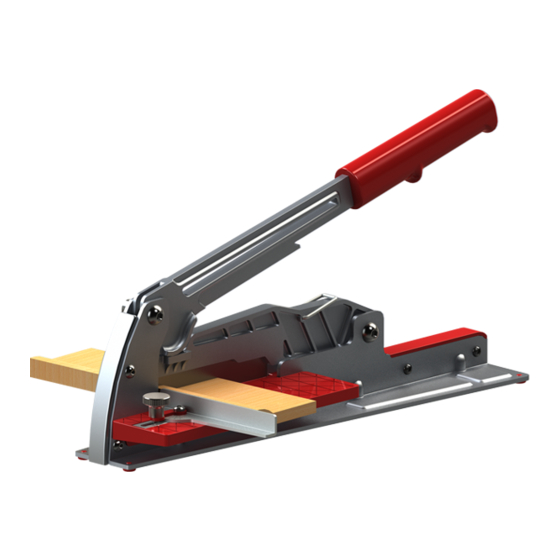

- Page 2 Regular Cutting Place the work-piece under the blade and press down the handle to complete the cut as shown. CUTTING AND C Angle Cutting Adjust the angle attachment to the desired angle and lock it. Place the work- piece under the blade and press down the handle to complete the cut as shown.
- Page 3 P a r t L i s t Parts Q’ty Parts Q’ty Left Base Hex Screw M8 × 25 Rubber Foot Pad Hook Hex Screw M5 × 20 Blade Base Face board Blade Locker Nut M5 Reset Spring Sleeve Right Base Stainless Steel Pad Spacer Block Screw M4 ×...
