Connector - HMS Networks Anybus Wireless Bolt User Manual

Installation
3.4

Connector

The 18-pin connector is common for all models of the Anybus Wireless Bolt. Some pins may have
a different function depending on model. Unused pins should not be connected.

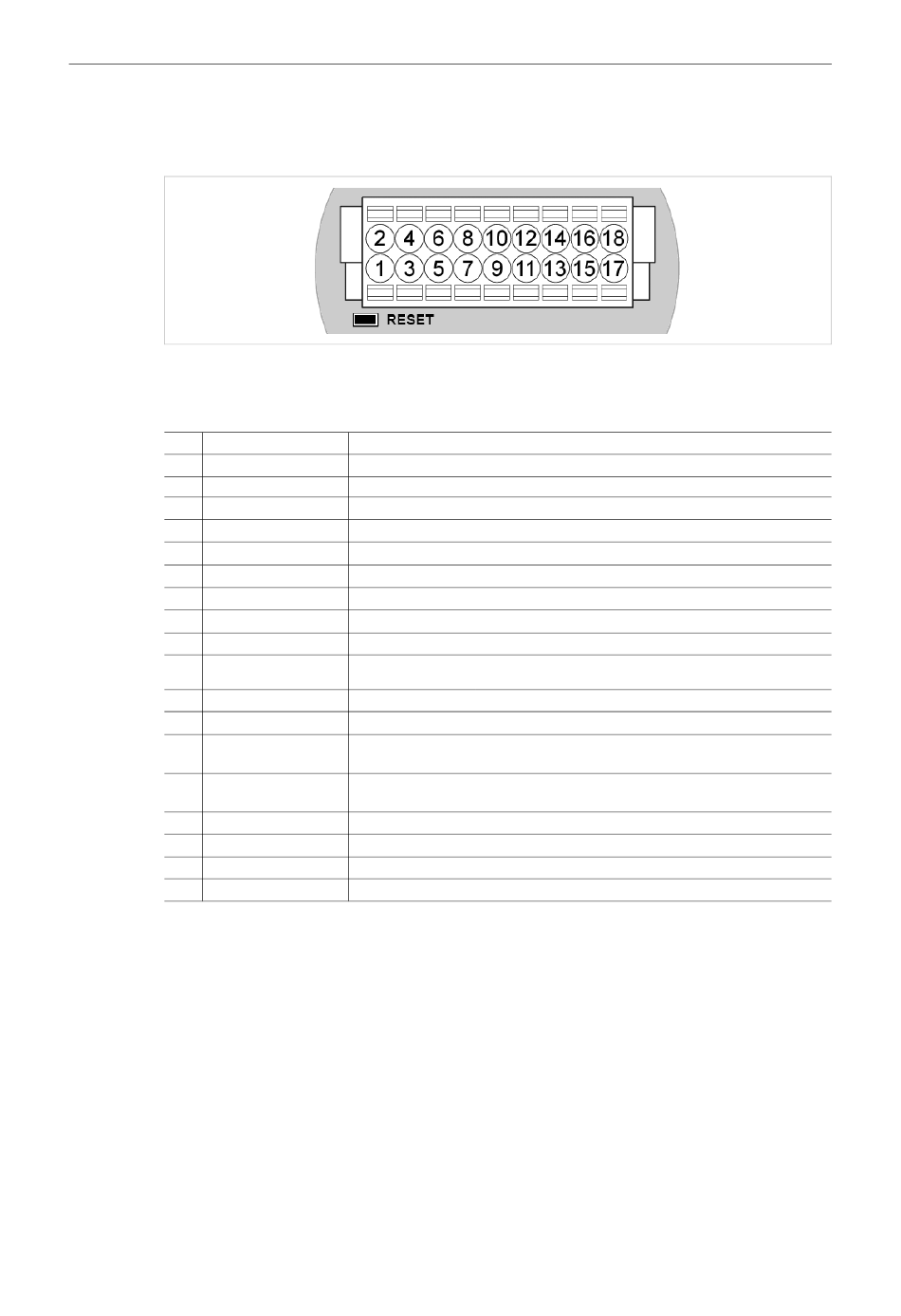

Fig. 2 Connector
The location of the RESET button can be used as a reference for the pin numbering when the
connector is attached to the Wireless Bolt. Pin 1 will be the pin closest to the button.
Pin Name
1 VIN
2 GND
3 DI
DI_GND
4
ETN_RD+
5
ETN_RD-
6
ETN_TD-
7
ETN_TD+
8
RS485_B
9
10 FE/Shield
RS232_TXD
11
RS485_A/RS232_RXD
12
RS232_RTS
13
RS232_CTS
14
ISO_5V
15
RS232_GND/RS485_GND Isolated Ground for serial interface
16
CAN_L
17
CAN_H
18
Note:
• The Ethernet wire colors refer to the T568A standard.
• If using a shielded Ethernet cable the shield must be unconnected.
• RS-232 and RS-485 cannot be used at the same time.
• Use termination for RS-485 and CAN when required.
® ™
Anybus Wireless Bolt User Manual
Description
Power + (9–30 V)
Power Ground
Digital input + (9–30 V)
Digital input ground
Ethernet receive + (white/orange)
Ethernet receive - (orange)
Ethernet transmit - (green)
Ethernet transmit + (white/green)
RS-485 B Line
Ethernet: Functional Earth
Serial: Functional Earth and Shield
RS-232 Transmit
RS-485 A Line / RS-232 Receive
RS-232 Request To Send
Not supported for Wireless Bolt.
RS-232 Clear To Send
Not supported for Wireless Bolt.
Isolated 5 V for serial interface
CAN Low
CAN High
