Appendix A: Configuration Examples
A Configuration Examples
A.1 Ethernet Bridge via WLAN or Bluetooth

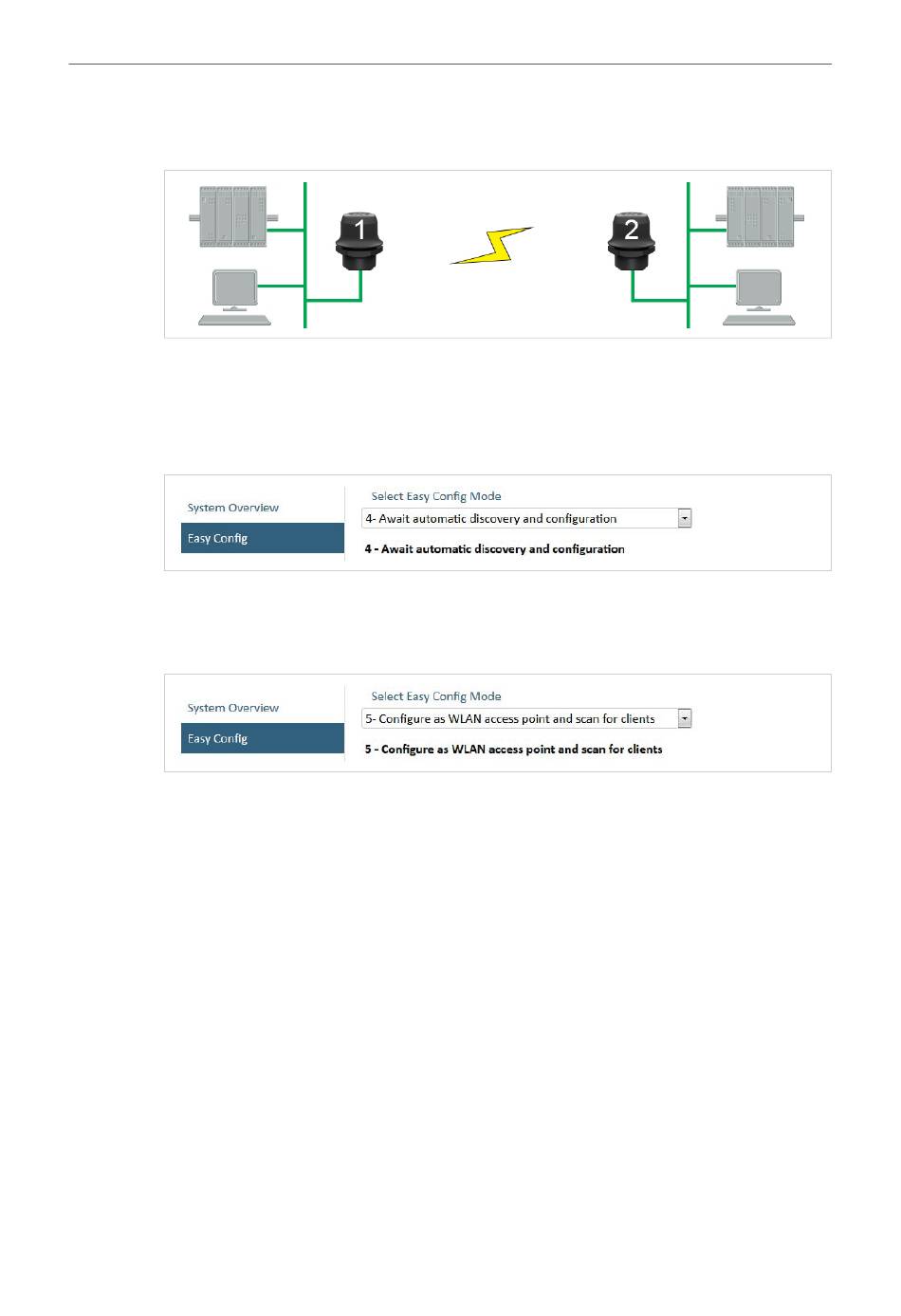

Fig. 21 Ethernet bridge
This example describes how to connect two Ethernet network segments via WLAN or Bluetooth
using Easy Config.
1. In the web interface of unit 1, activate Easy Config Mode 4. This unit will now be
discoverable and open for automatic configuration.
Fig. 22 Easy Config Mode 4
2. In the web interface of unit 2, activate Easy Config Mode 5 for WLAN or 6 for Bluetooth.
Unit 2 will now discover and configure unit 1 as a client and configure itself as an access
point.
Fig. 23 Easy Config Mode 5
Unit 1 will be assigned the first free IP address in the same Ethernet subnet as unit 2.
Adding More Devices
Up to 6 additional clients can be added by repeating the procedure. Each new client will be
assigned the next free IP address in the current subnet.
® ™
