Configuration
4.2.4 WLAN Settings - Client

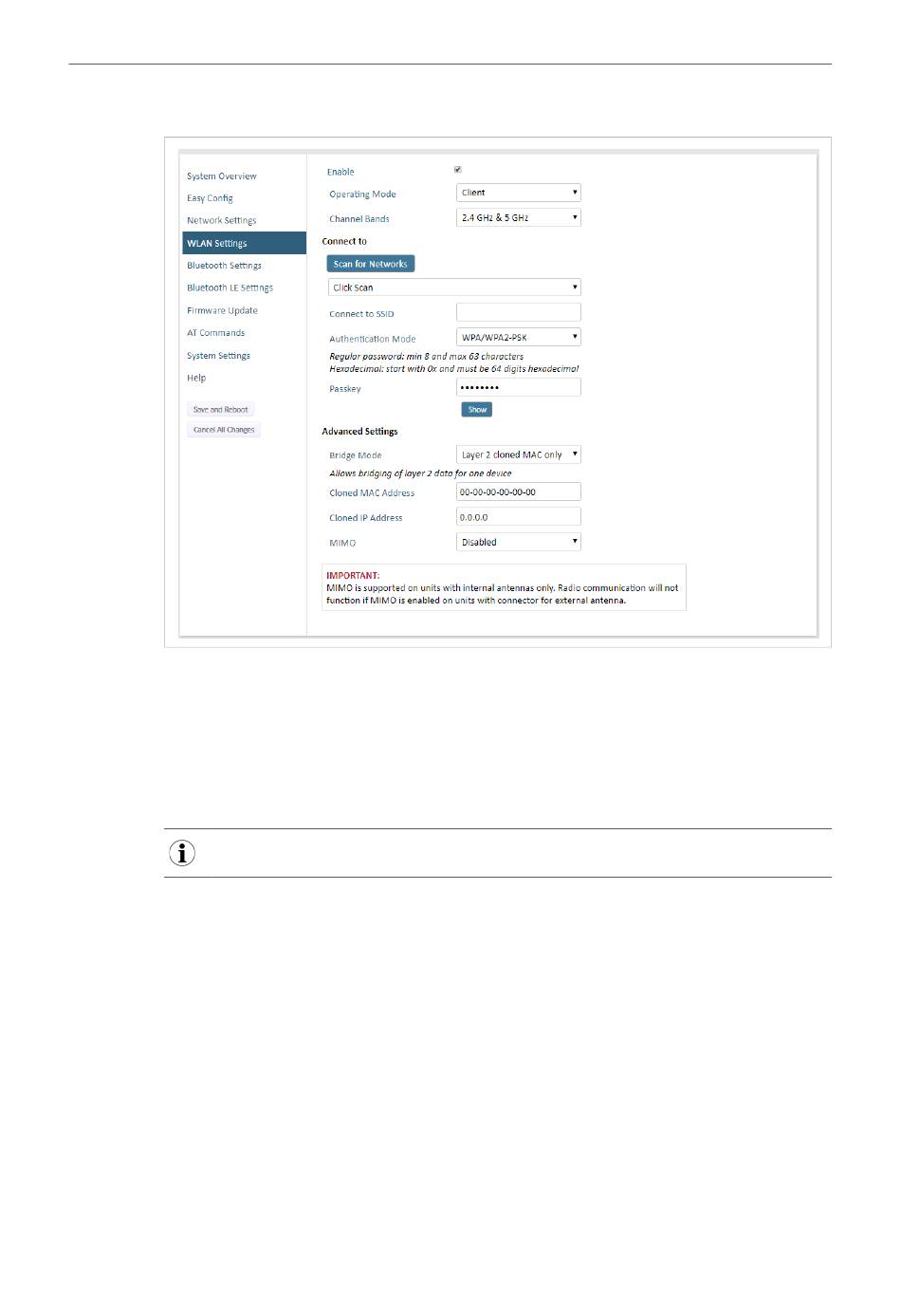

Fig. 9 WLAN Settings - Client
Enable
Operating Mode
Channel Bands
The unit can be configured to scan on both the 2.4 GHz and 5 GHz channel bands but can only
communicate on one band at a time.
Scan for Networks
Connect to SSID
Authentication Mode
Passkey
Username, Domain,
Passphrase
Channel
® ™
Anybus Wireless Bolt User Manual
Enable/disable the WLAN interface.
Choose operation as WLAN Client or Access Point. If Access Point is selected, additional
settings will be available.
Choose to scan only the 2.4 GHz or 5 GHz channel band, or both (default).
Click to scan the selected frequency band(s) for discoverable WLAN networks.
Select a network from the dropdown menu to connect to it.
To connect manually to a network, enter its SSID (network name) here. This can be used
if the network does not broadcast its SSID.
Select the authentication/encryption mode required by the network.
Open = No encryption or authentication
Enter the passkey when using WPA/WPA2-PSK or WEP64/128.
Authentication details when using LEAP or PEAP (WPA2 Enterprise).
Select a specific channel to use when scanning for networks.
Auto = all available channels will be scanned (default).
See also WLAN Channels and World Mode (Client Mode only), p. 17
