Westin 56-23935 Installation Instructions

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1 2
2 1
3 1
4 1
5 1
6 1*
7 1*
8 4 / 6*
9 24 / 36*
10 24 / 36*
11 8 / 12*
12 16 / 24*
13 4 / 6*
14 12 / 18*
* SUPER CREW HAS CENTER MOUNT BRACKETS AND THEREFORE COMES WITH MORE HARDWARE
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
REAR BRACKETS OPPOSITE OF FRONT
ITEM 1

CARE INSTRUCTIONS


REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.

STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.

GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W16-0090
P.N.: 75-562393-RevB

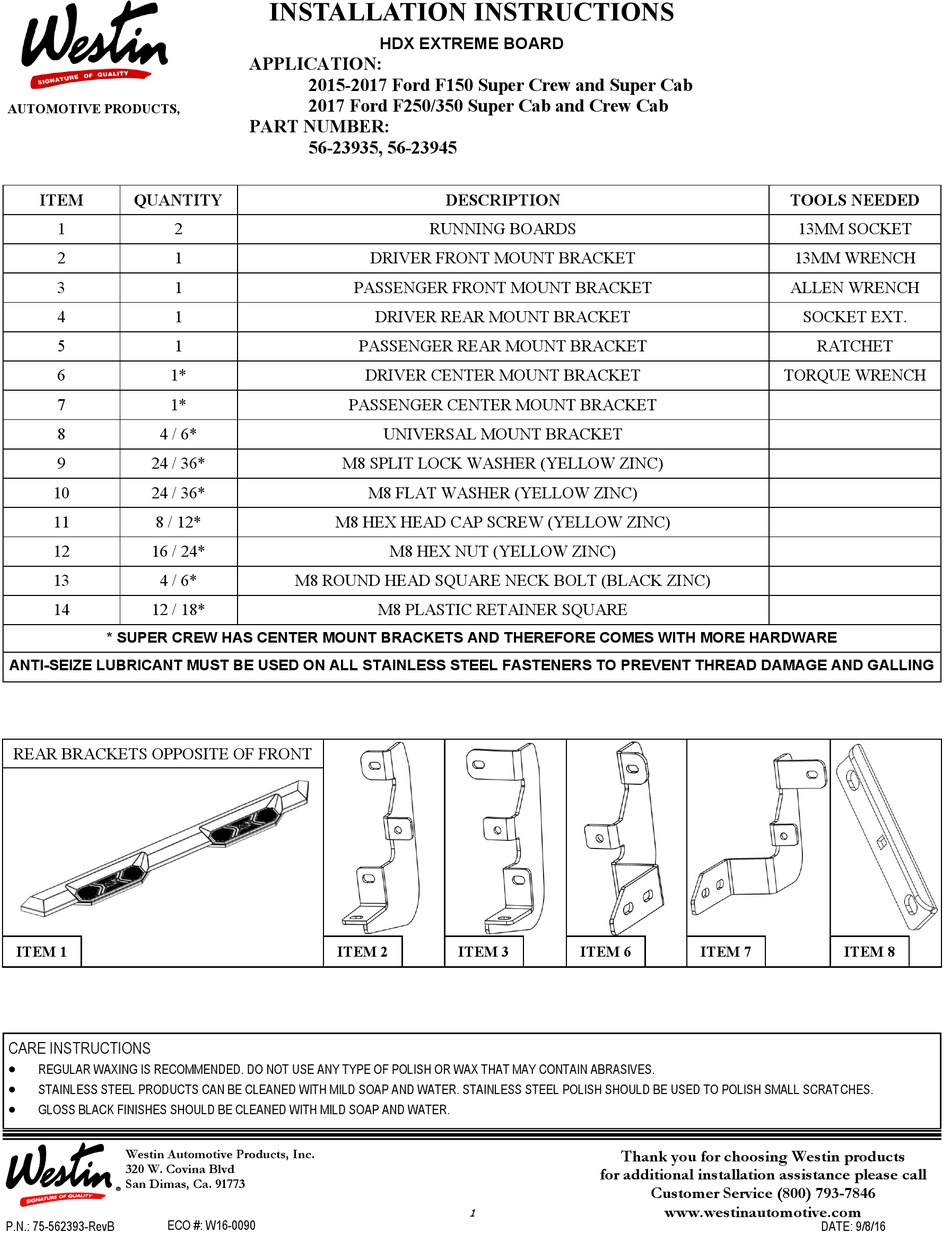

INSTALLATION INSTRUCTIONS
HDX EXTREME BOARD

APPLICATION:

2015-2017 Ford F150 Super Crew and Super Cab
2017 Ford F250/350 Super Cab and Crew Cab

PART NUMBER:

56-23935, 56-23945
DRIVER FRONT MOUNT BRACKET
PASSENGER FRONT MOUNT BRACKET
DRIVER REAR MOUNT BRACKET
PASSENGER REAR MOUNT BRACKET
DRIVER CENTER MOUNT BRACKET
PASSENGER CENTER MOUNT BRACKET
UNIVERSAL MOUNT BRACKET
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M8 HEX HEAD CAP SCREW (YELLOW ZINC)
M8 HEX NUT (YELLOW ZINC)
M8 ROUND HEAD SQUARE NECK BOLT (BLACK ZINC)
M8 PLASTIC RETAINER SQUARE
ITEM 2
DESCRIPTION
RUNNING BOARDS
ITEM 3 ITEM 6
for additional installation assistance please call
1
TOOLS NEEDED
13MM SOCKET
13MM WRENCH
ALLEN WRENCH
TORQUE WRENCH
ITEM 7
Thank you for choosing Westin products
Customer Service (800) 793-7846
www.westinautomotive.com
SOCKET EXT.
RATCHET
ITEM 8
DATE: 9/8/16
