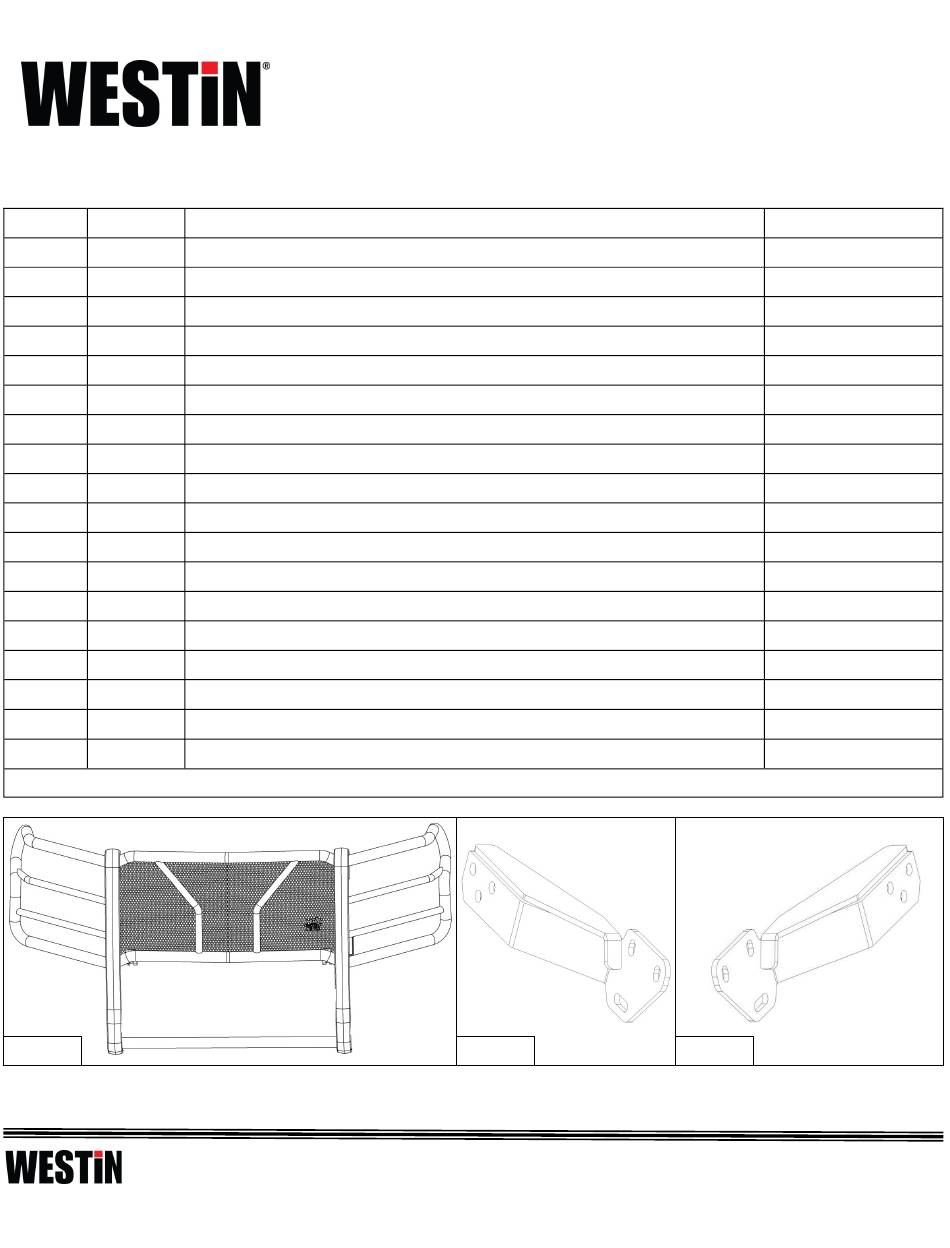

ITEM
QUANTITY
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
2
9
4
10
6
11
12
12
6
13
2
14
2
15
2
16
6
17
6
18
6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING.
ITEM 1
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-57399-RevA
ECO #: W19-0195
INSTALLATION INSTRUCTIONS
APPLICATION:
2020 Chevrolet Silverado 2500/3500
PART NUMBER:
57-3990, 57-3995
DESCRIPTION
GRILLE GUARD
LOWER DRIVER MOUNTING BRACKET
LOWER PASSENGER MOUNTING BRACKET
DRIVER INSIDE SUPPORT BRACKET
PASSENGER INSIDE SUPPORT BRACKET
DRIVER UPPER STRAP
PASSENGER UPPER STRAP
SHORT M12 HEX HEAD BOLT (YELLOW ZINC)
LONG M12 HEX HAD BOLT (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 HEX NUT (YELLOW ZINC)
M10 BUTTON HEAD BOLT (BLACK ZINC)
M10 BELLVILLE WASHER (BLACK ZINC)
M10 SERRATED FLANGE NUT (BLACK ZINC)
M12 BUTTON HEAD BOLT (BLACK ZINC)
M12 SERRATED FLANGE NUT (BLACK ZINC)
M12 BELLVILLE WASHER
ITEM 2
1
HDX Grille Guard
ITEM 3
www.westinautomotive.com
TOOLS NEEDED
RATCHET
16mm SOCKET
17mm SOCKET
18mm SOCKET
16mm WRENCH
17mm WRENCH
18mm WRENCH
TORQUE WRENCH
CUTTING TOOL
DATE: 11/26/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Westin 57-3990
Summary of Contents for Westin 57-3990
- Page 1 ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING. ITEM 1 ITEM 2 ITEM 3 Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca. 91773 Customer service (800) 793-7846 www.westinautomotive.com...
- Page 2 4. Remove 2 bolts attaching wheel well cover to filler panel. See Figure 3. Fig. 2 Fig. 1 Fig. 3 Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca. 91773 Customer service (800) 793-7846 www.westinautomotive.com...
- Page 3 Fig. 7 Underneath vehicle Fig. 8 the plastic covering them Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca. 91773 Customer service (800) 793-7846 www.westinautomotive.com P.N.: 75-57399-RevA...
- Page 4 Measure the distance between the mounting surfaces of the upper straps and ensure it is about 42.25”. Torque to 50-55 ft-lbs. See Figure 11-13. Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca.
- Page 5 Fig. 13 42.25 inches 14. REINSTALL FILLER PANEL AND GRILLE IN REVERSE ORDER AS INSTRUCTED. Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca. 91773 Customer service (800) 793-7846 www.westinautomotive.com...
- Page 6 STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES. GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER. Westin Automotive Products, Inc. Thank You for choosing Westin products 320 W. Covina Blvd For Additional installation assistance please call San Dimas, Ca. 91773 Customer service (800) 793-7846 www.westinautomotive.com...
- Page 7 AND SAFETY. DRILLING: Most Westin products do not require drilling for installation. If drilling is defined as required, use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAMAGE.
