Westin 56-534335 Installation Instructions Manual

ITEM QUANTITY
1,2 2
3,4 2
5,6 2
7,8 2
9,10 2
11 2
12 4
13 8
14 6
15 8
16 8
17 8
18 12
19 16
20 28
21 28
22 4
23 4
24 6
25 6
26 6
27 6
28 2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-5653433-RevB ECO #: W17-0086
INSTALLATION INSTRUCTIONS
APPLICATION:
2010-2018 Dodge Ram 2500/3500 Crew Cab 8ft Bed (Excl. Dually)
PART NUMBER: 56-534335, 56-5343352
DESCRIPTION
STEP BAR, DRIVER (1) AND PASSENGER (2)
FRONT MOUNT BRACKET, DRIVER (3) AND PASSENGER (4)
CENTER MOUNT BRACKET, DRIVER (5) AND PASSENGER (6)
REAR MOUNT BRACKET, DRIVER (7) AND PASSENGER (8)
ISOLATOR BRACKET, DRIVER (9) AND PASSENGER (10)
TOP ISOLATOR MOUNT BRACKET
ISOLATOR KIT
M10 BOLT / M8 NUT PLATE
M8 HEX RIV-CERT (YELLOW ZINC)
M10 HEX NUT (YELLOW ZINC)
M10 SPLIT LOCK WASHER (YELLOW ZINC)
M10 FLAT WASHER (YELLOW ZINC)
M8 LONG HEX HEAD CAP SCREW (YELLOW ZINC)
M8 SHORT HEX HEAD CAP SCREW (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M12 HEX HEAD CAP SCREW (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M6 BUTTON HEAD CAP SCREW (BLACK ZINC)
M6 SERRATED FLANGE NUT (BLACK ZINC)
M6 FLAT WASHER (BLACK ZINC)
PLASTIC RETAINER SQUARE
M10 FISH WIRE

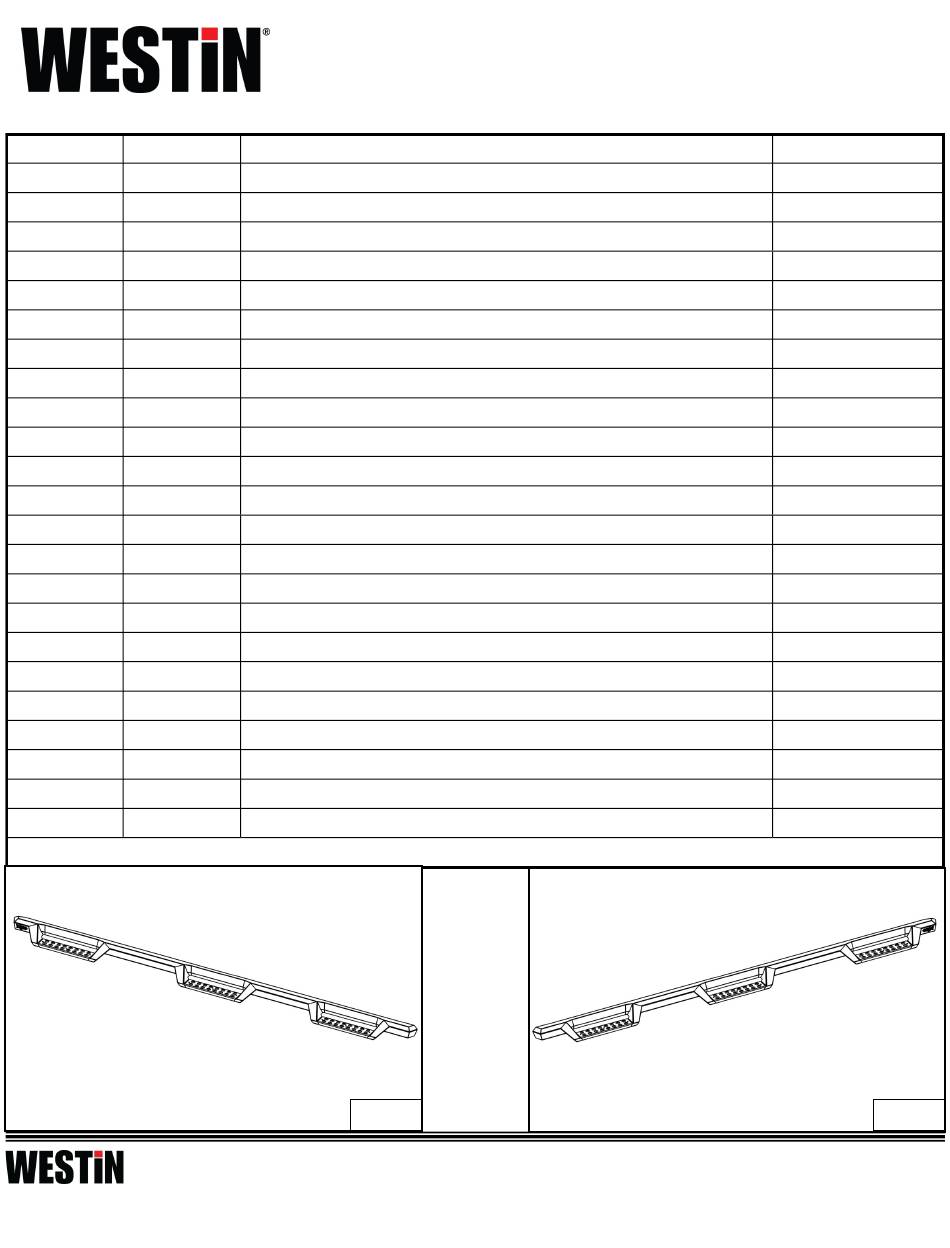

Figure 1
ITEM 1
HDX DROP STEP WTW
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
10MM SOCKET
13MM SOCKET
13MM WRENCH
SOCKET EXT.
ALLEN WRENCH
RATCHET
TORQUE WRENCH
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 10/10/17
ITEM 2
