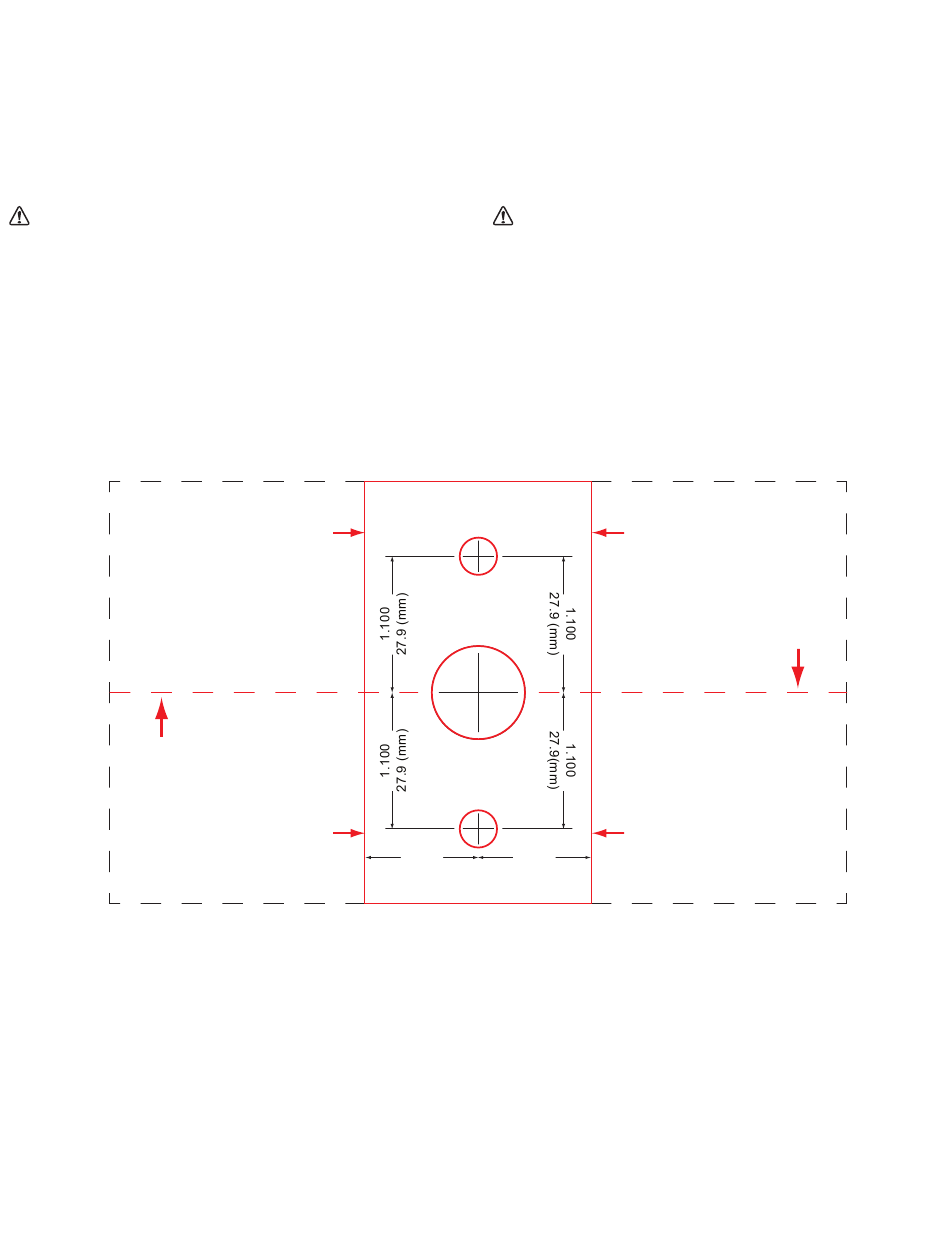

Template for Door Mounting Holes
Templates may not print to scale Check all measurements before proceeding
Before printing, turn off auto scaling in printer setup and print at 100%
CENTER LINE
All measurements in thousandths
ALIGN EDGE OF
STRIKE PLATE HERE
FOR
LEFT
CLOSING DOOR
ALIGN EDGE OF
STRIKE PLATE HERE
FOR
LEFT
CLOSING DOOR
of an inch and millimeters
.300
7.62 (mm)
use 5/16" bit
.750
19.05 (mm)
use 3/4" bit
.905
.905
23 (mm)
23 (mm)
.300
7.62 (mm)
ALIGN EDGE OF
STRIKE PLATE HERE
FOR
RIGHT
CLOSING DOOR
CENTER LINE
ALIGN EDGE OF
STRIKE PLATE HERE
FOR
RIGHT
CLOSING DOOR
