Installation

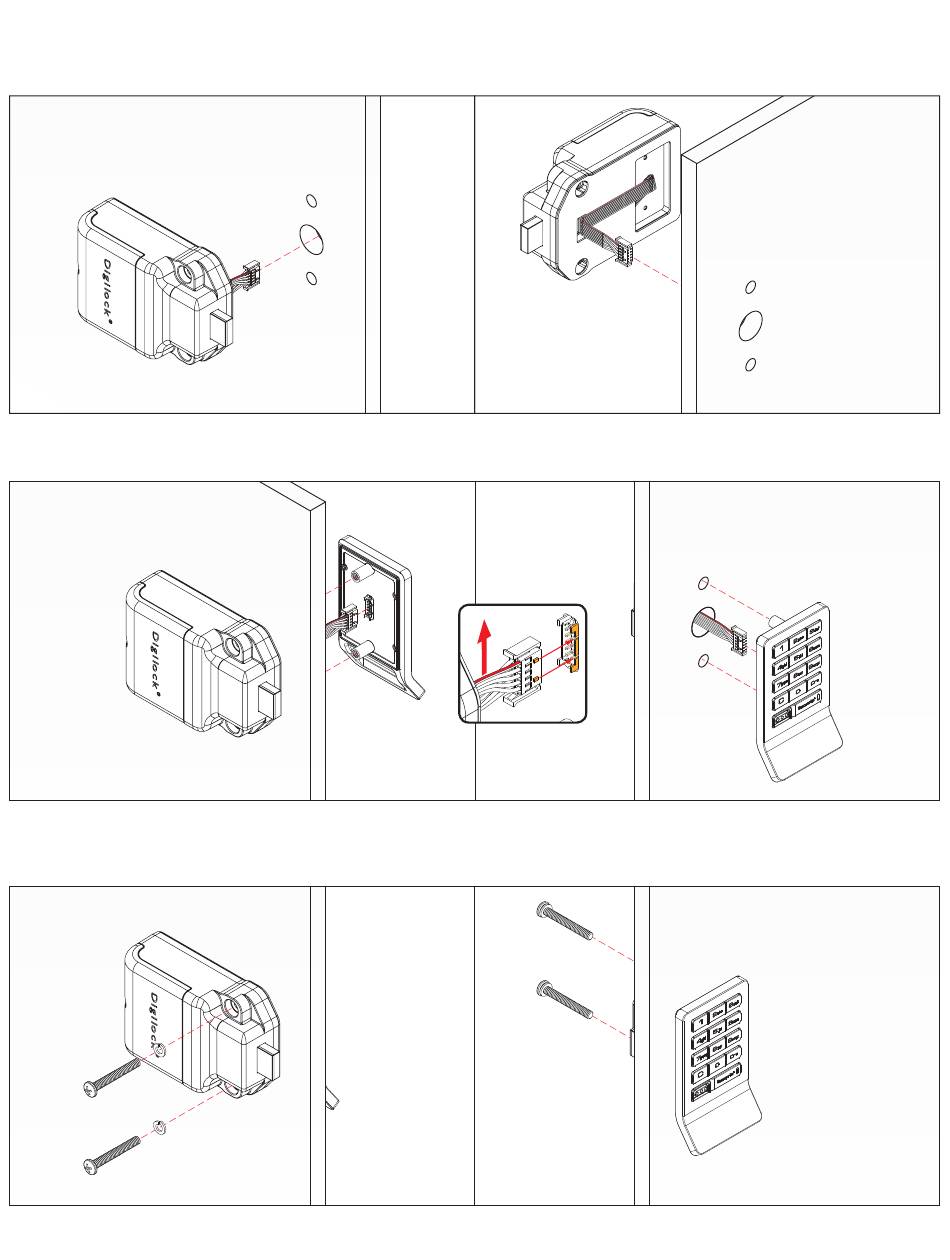

For illustration, a keypad front unit with a bolt rear unit is used
1
REAR VIEW
With the rear unit behind the door, extend the cable through the door's mounting hole
2
REAR VIEW
Orient the cable with the red wire position on the top of the ribbon (see fig-1) Attach the cable to the front unit using the corresponding
channel guides to ensure the snap connector is properly secured Once connected a triple beep indicates successful connection
3
REAR VIEW
Hold the front and rear units against the door and secure with the mounting screws Ensure the remaining cable is not pinched
fig-1
FRONT VIEW
FRONT VIEW
FRONT VIEW
5
