Cue locks with an RFID interface are operated with an RFID credential or by an ADA compliant User Key. Manager Keys provide management
access and external power. Programming is accomplished via a Programming Key unique to the lock system.
Lock Parts

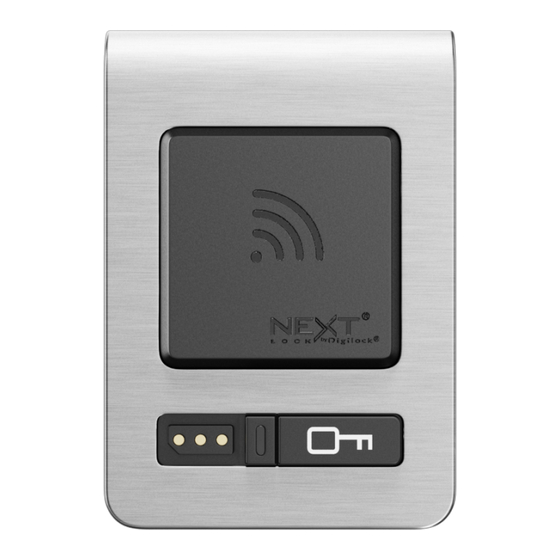

Front Unit
Key Slot
User Credential
User Key
Keys
Operates the lock
Overrides user access
Allows management inspection
Provides external power
Programs Manager Keys
Assigns user credential (
in assigned use functionality)
Sets lock functionality
*Up to 25 Manager Keys may be programed to each lock
Product Guide
Reader
Key Button
LED Usage Indicator
Assigned Use
RFID Card
RFID Adhesive
Label
User Key
Manager Key* Programming Key**
•
•
•
•
•
•
**1 Programming Key allowed per lock group
RFID Interface
Latch Mechanism
Assigned Use Functionality
Rear Unit
Cover Plate
Lock Mounting Holes
1/2" (12.7 mm)
Deadlatch
RFID Keyfob
•
•
•
•
•
•
Connection Options
Cable
Cover Plate
Screws
Pin
RFID Wristband
Key Insertion
NextLock logo must face up.
1
Advertisement
Related Manuals for Digilock Next Cue
Summary of Contents for Digilock Next Cue
- Page 1 Product Guide RFID Interface Latch Mechanism Assigned Use Functionality Cue locks with an RFID interface are operated with an RFID credential or by an ADA compliant User Key. Manager Keys provide management access and external power. Programming is accomplished via a Programming Key unique to the lock system. Lock Parts Front Unit Rear Unit...
-
Page 2: Programming Instructions
Product Guide RFID Interface Latch Mechanism Assigned Use Functionality Setup Locks are shipped with factory default settings (only operates by pressing `). Setup must be completed to program the Programming Key and Manager Keys or Manager RFID Credentials to all the locks. Insert the Programming Key. - Page 3 Replacement keys must be purchased and programmed to the locks to prevent the lost/stolen keys from operating a lock. To replace the Programming Key: Note the order or serial number (found on the lock’s rear unit). Contact Digilock Support to purchase a replacement Programming Key. To replace the Manager Keys: Collect all remaining Manager Keys.
- Page 4 Product Guide RFID Interface Latch Mechanism Assigned Use Functionality Programming Instructions Assign User Credentials Once a user credential is assigned, the previously assigned user credential will no longer operate the lock. Assign a User RFID Credential: Press and hold for 5 seconds (a two-tone beep will be heard after 5 While the LED is on, present the new User RFID Credential.
- Page 5 Product Guide RFID Interface Latch Mechanism Assigned Use Functionality Operating Instructions In assigned use functionality, users operate the lock with their assigned user credential (either a User RFID Credential or a User Key). To reassign a lock to a different user, follow instructions to Assign User Credentials. Operate with the User RFID Credential Operate with the User Key To unlock: Press...
-
Page 6: Battery Replacement
The lock is binding, meaning either door alignment or items in the locker are preventing the lock from operating. Press on the door while operating the lock. If error condition persists, contact Digilock support for assistance. 2 s ets of three beeps: The batteries are low.
