Summary of Contents for Digilock numeris aspire

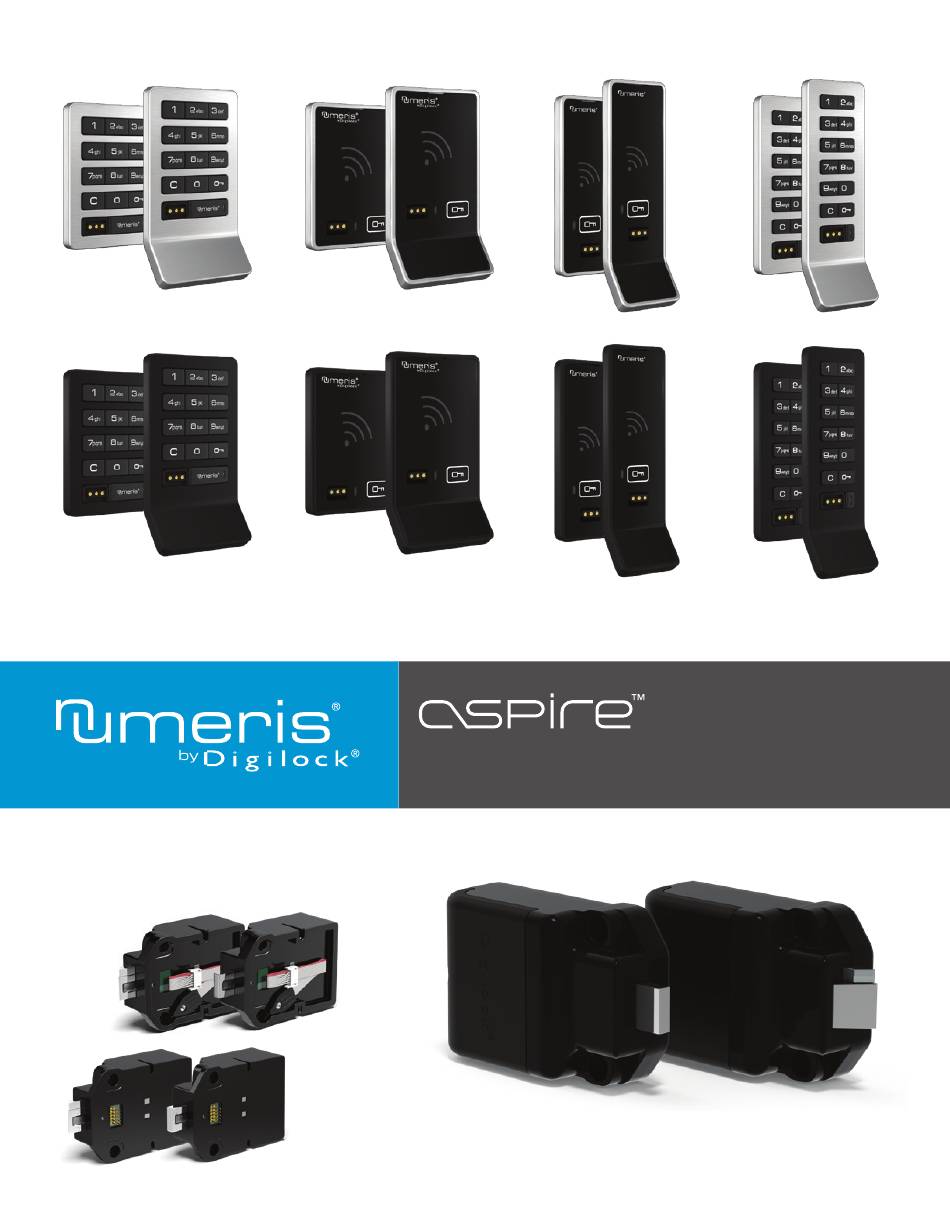

- Page 1 Installation Guide 5G Rear Units (Latch and Bolt) 4G Rear Units (Latch and Bolt)
-
Page 2: Table Of Contents
Table of Contents Before Lock Installation Surface Mount Installation For door thickness measuring between .16” - .91” (4 mm - 23 mm) Required Components Installation For door thickness measuring between .01" - .16" (0.2mm - 4 mm) Required Components Installation... -
Page 3: Before Lock Installation
Before Lock Installation The door must be prepared for lock installation 1. A strike plate must be installed. Strike Plate Double Door Strike Plate Security Strike Plate Recommended for latch products Angled Strike Plate The door must have door mounting holes. Door Mounting Holes This installation guide is compatible for 4G Motorized Rear Units 1 - Legacy Rear Units... -
Page 4: Surface Mount Installation
Surface Mount Installation For door thickness measuring between .16" - .91" (4 mm - 23 mm) Required Components Tab Text Standard Keypad Touch RFID Standard Keypad Touch RFID Standard Body Standard Body Vertical Body Vertical Body 1 - Rear Units Deadbolt - Cable Deadlatch - Cable 2 - Phillips Head Screws... -
Page 5: Installation
Installation For illustration, a keypad front unit with a bolt rear unit is used REAR VIEW FRONT VIEW With the rear unit behind the door, extend the cable through the door’s mounting hole fig-1 REAR VIEW FRONT VIEW Orient the cable with the red wire position on the top of the ribbon (see fig-1) Attach the cable to the front unit using the corresponding channel guides to ensure the snap connector is properly secured Once connected a triple beep indicates successful connection REAR VIEW FRONT VIEW... - Page 6 REAR VIEW FRONT VIEW Test the lock while the door is open to ensure that the bolt or latch is operating properly For keypad locks with deadbolt rear units: For touch RFID locks with deadbolt rear units: Press = ` to extend the bolt Touch ` to extend the bolt Press = ` again to retract the bolt Touch ` again to retract the bolt...
-
Page 7: For Door Thickness Measuring Between .01" - .16" (0.2Mm - 4 Mm)
Surface Mount Installation For door thickness measuring between .01” - .16” (0.2 mm - 4 mm) Required Components Tab Text Standard Keypad Touch RFID Standard Keypad Touch RFID Standard Body Standard Body Vertical Body Vertical Body 1 - Rear Units Deadbolt - Cable Deadlatch - Cable 2 - Locking Nuts... -
Page 8: Installation
Installation For illustration, a keypad front unit with a bolt rear unit is used REAR VIEW FRONT VIEW Insert the front unit screw posts through the door mounting holes REAR VIEW FRONT VIEW Hold the front unit against the front of the door Use the rear unit mounting holes as a guide, then slide the front and rear units together Make sure the connector pins align properly with the connector If properly connected, a triple beep will be heard and the LED will flash three times REAR VIEW... - Page 9 REAR VIEW FRONT VIEW Test the lock while the door is open to ensure that the bolt/latch is operating properly For keypad locks with deadbolt rear units: For touch RFID locks with deadbolt rear units: Press = ` to extend the bolt Touch ` to extend the bolt Press = ` again to retract the bolt Touch ` again to retract the bolt...
-
Page 10: Door Preparation
Door Preparation Strike Plate Installation Required Components 1. A strike plate must be installed. Strike Plate* Double Door Strike Plate Security Strike Plate Recommended for latch products Angled Strike Plate 1*- Phillips Head Screwdriver (#1) 1*- Pencil Removable tape* 1*- Ruler 1*- Drill 1*- 1/6”... -
Page 11: Installation
Installation 0 . 3 2 0 . 3 2 ( 8 m ( 8 m Mark Here Mark Here Position the strike plate on the door frame aligning it with Allow 32" (8 mm) from door edge and mark the position the center of the lock’s mounting holes of the adjustment slot holes Drill Pilot... -
Page 12: Door Mounting Holes Drill Instructions And Template
Door Mounting Holes Drill Instruction and Template Drill Instructions With the door open place the Template over the locker frame Close the door over the Template (a) Mark the door edge at the Template Center Line (a) Align the Edge of Strike Plate with the Strike Plate Marker (b) Mark the Template with the edge of the door (b) Center the Template to the center of the Strike Plate You may secure the Template with removable tape... - Page 13 Template for Door Mounting Holes Templates may not print to scale Check all measurements before proceeding Before printing, turn off auto scaling in printer setup and print at 100% All measurements in thousandths of an inch and millimeters ALIGN EDGE OF ALIGN EDGE OF STRIKE PLATE HERE STRIKE PLATE HERE...
-
Page 14: Metal Door Preparation
Metal Door Preparation Compatibility Guide Digilock is compatible with a majority of 3-hole configuration, latch, and handle door types Some doors may require modification to clear obstructions Single Point Latch Standard Lift Handle Box Locker Padlock Hasp Removal of 3-hole Lock Plug... -
Page 15: Removal Of Padlock Hasp
Removal of Padlock Hasp The padlock hasp must be removed 1* - Handheld Grinder or Hack Saw 1* - Metal File *Not included Close the door and make sure that nothing is Close the door and mark the area to cut the protruding above the surface of the door padlock hasp Open the door then cut the padlock hasp on... - Page 16 IG-NM-A-DEN 707 766 6000 | sales@digilockcom | wwwdigilockcom 010919...
